Product Specifications
| Manufacturer Part Number | 75006581 |
| Minimum Cutting Diameter Internal (mm) | 25.00mm |
| Functional Length (mm) | 170.00mm |
| Head Length (mm) | 31.00mm |
| Shank Width (mm) | 32.00mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Functional Width (mm) | 40.20mm |
| Rake Orthogonal Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 119 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 91 Degree |
| Inclination Angle (Degree) | 1 Degree |
| Insert Shape Code | T |
| Shank Type | Square shank |

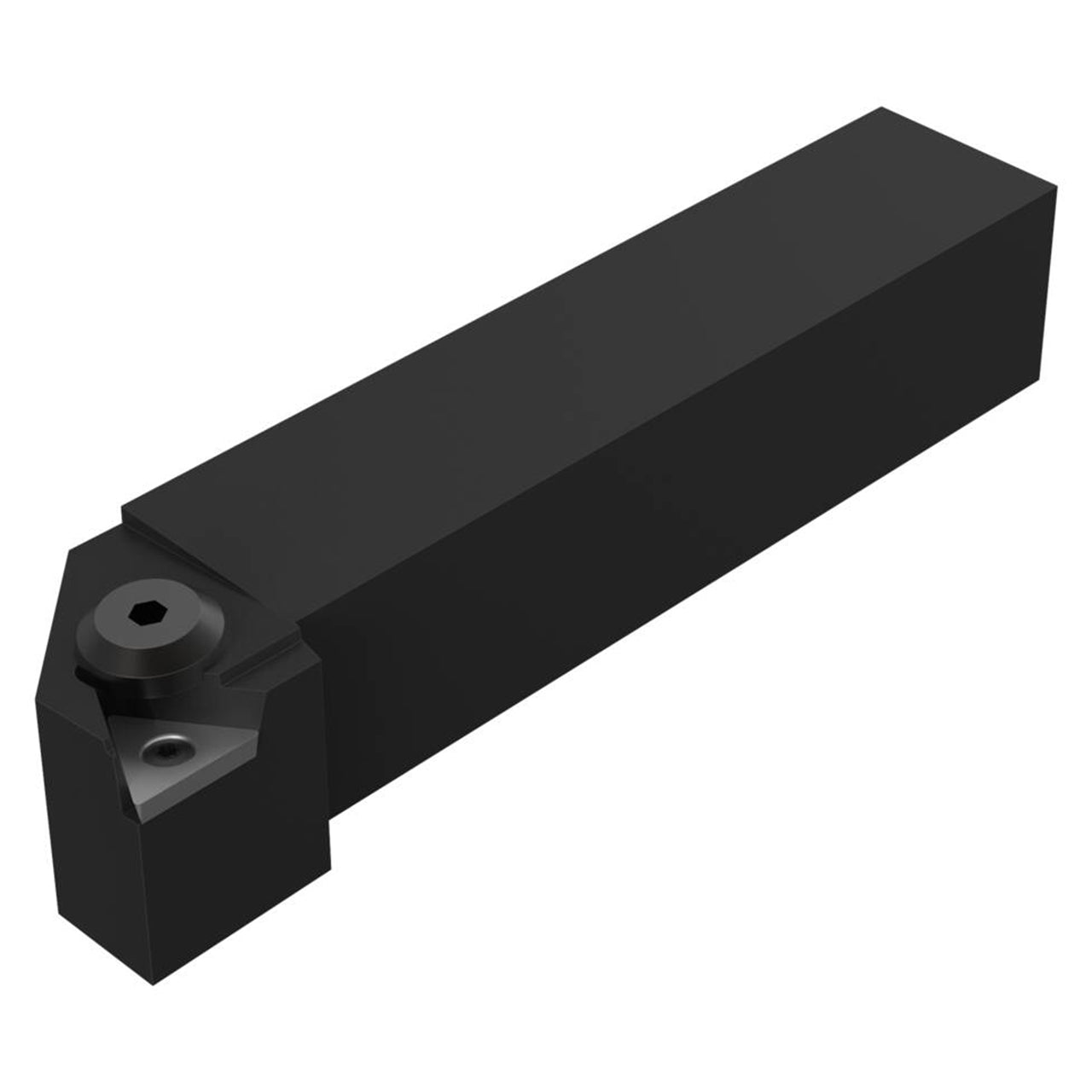

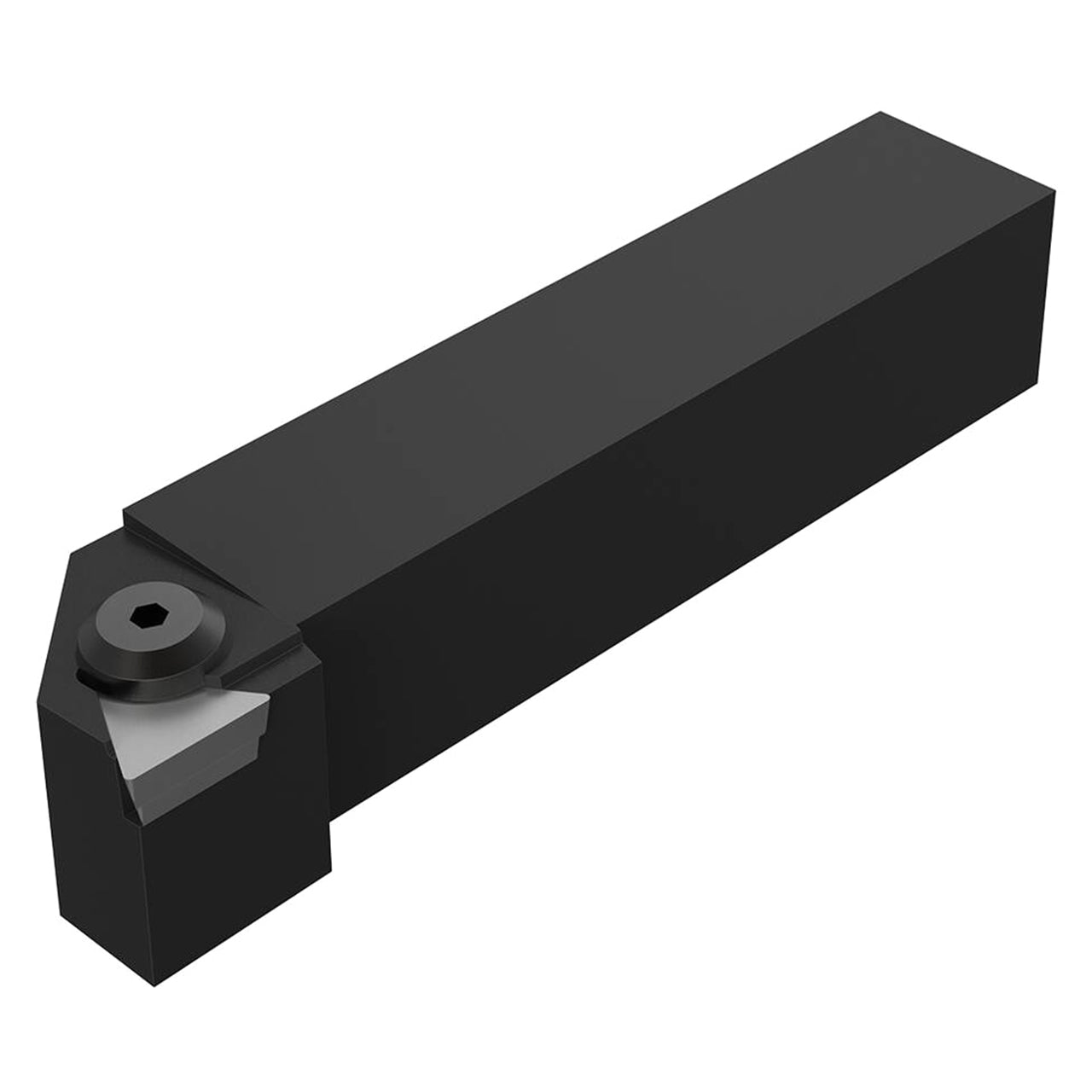

| Product Type | Indexable Turning Toolholder |
