Product Specifications
| Manufacturer Part Number | 75002622 |
| Cutting Diameter (mm) | 16.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 26.00mm |
| Shank Diameter (mm) | 20.00mm |
| Protruding Length (mm) | 60.00mm |
| Shank Length (mm) | 75.00mm |
| Overall Length (mm) | 110.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 27200 rpm |
| Shank Type | Weldon |

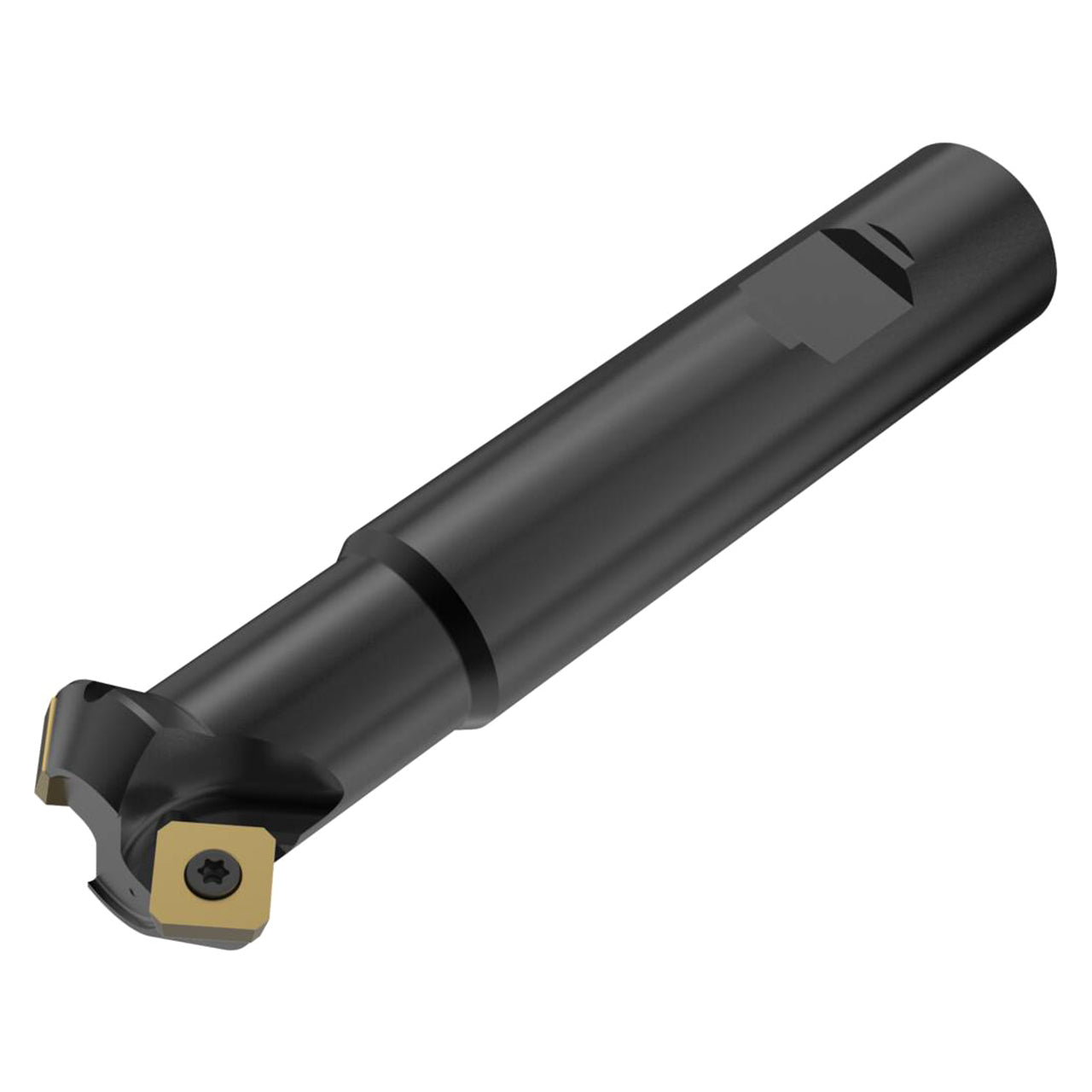

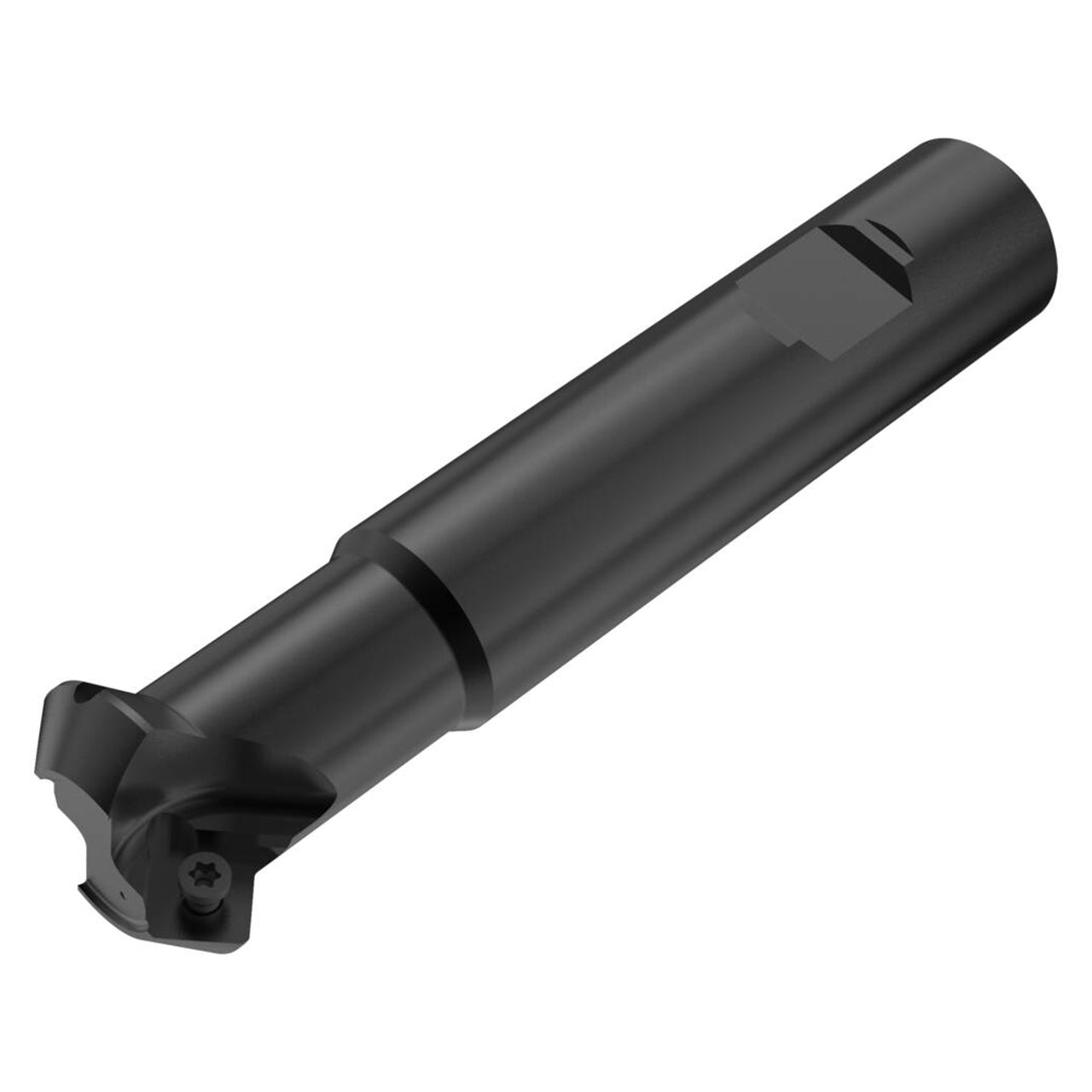

| Product Type | Indexable Square-Shoulder End Mill |
