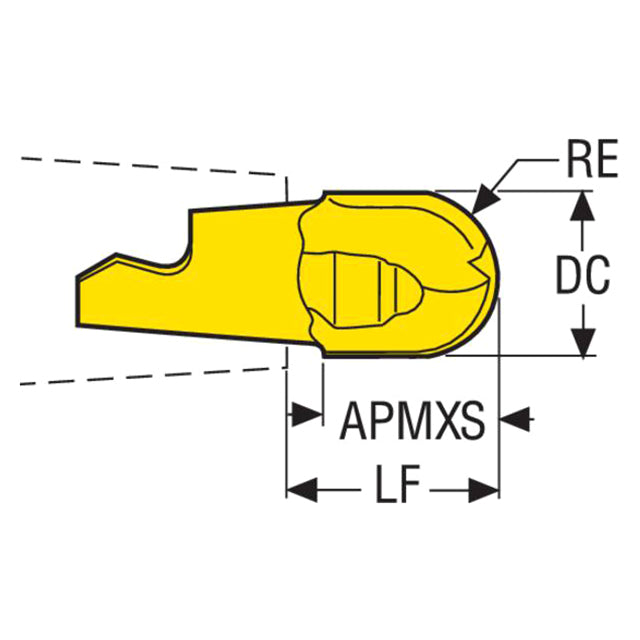

Product Specifications
| Manufacturer Part Number | 74080710 |
| Cutting Diameter (mm) | 6.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.20mm |
| Cutting Edge Effective Length (mm) | 6.14mm |
| Functional Length (mm) | 7.06mm |
| Maximum Depth of Cut (mm) | 6.10mm |
| Corner Radius (mm) | 3.00mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Sphere Angle (Degree) | 180 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Profile Milling Tip Insert |
