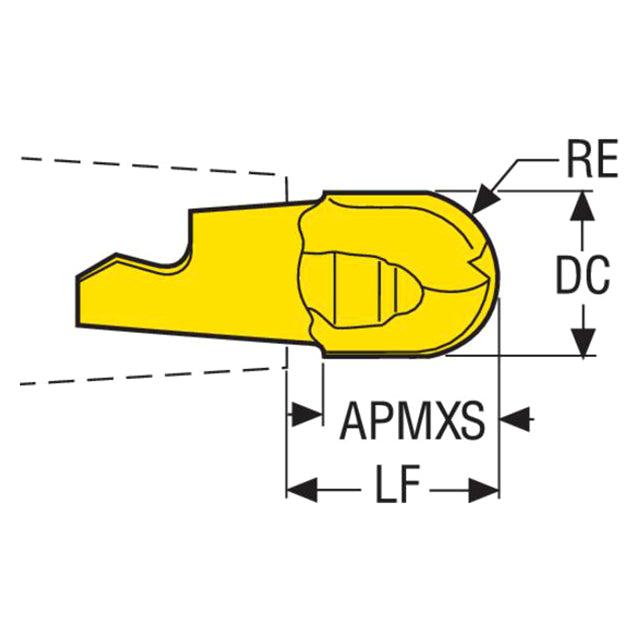

Product Specifications
| Manufacturer Part Number | 74068363 |
| Cutting Diameter (mm) | 12.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.50mm |
| Cutting Edge Effective Length (mm) | 12.28mm |
| Functional Length (mm) | 14.12mm |
| Maximum Depth of Cut (mm) | 12.30mm |
| Corner Radius (mm) | 6.00mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Sphere Angle (Degree) | 180 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Profile Milling Tip Insert |
