Product Specifications
| Manufacturer Part Number | 74037297 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |
| Corner Radius (Decimal Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.280" |
| Cutting Edge Effective Length (mm) | 7.10mm |

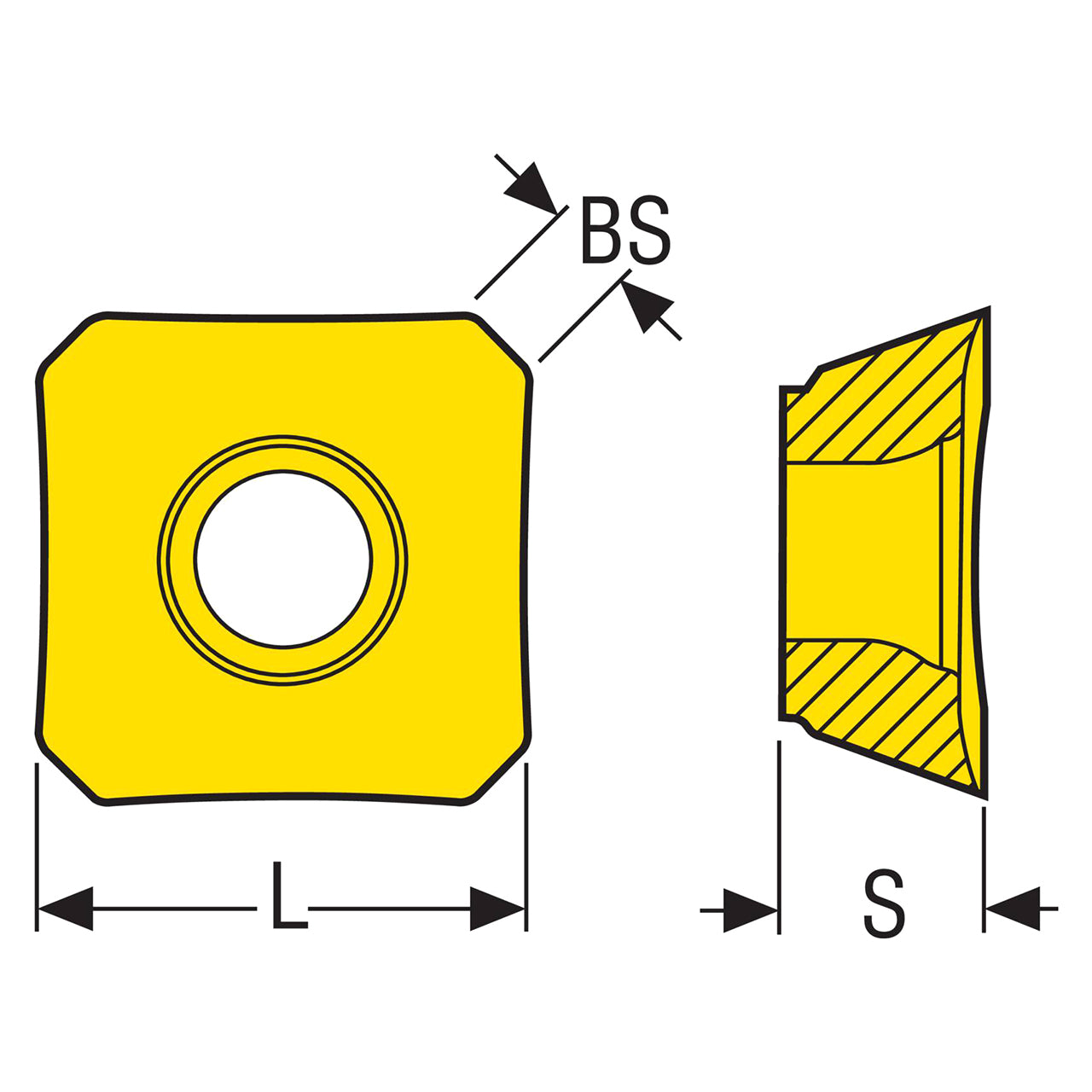

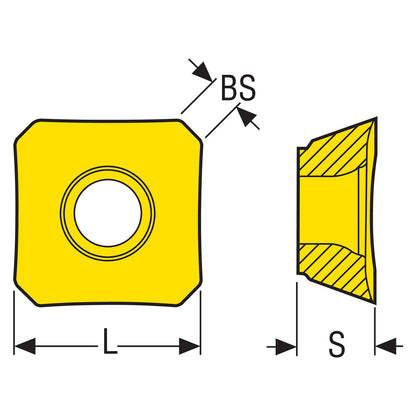

| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.375" |
| Theoretical Cutting Edge Length (mm) | 9.52mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME07 |
| Insert Size And Shape | SEEX09T3 |
| Insert Rake Angle (Degree) | 22 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | S |

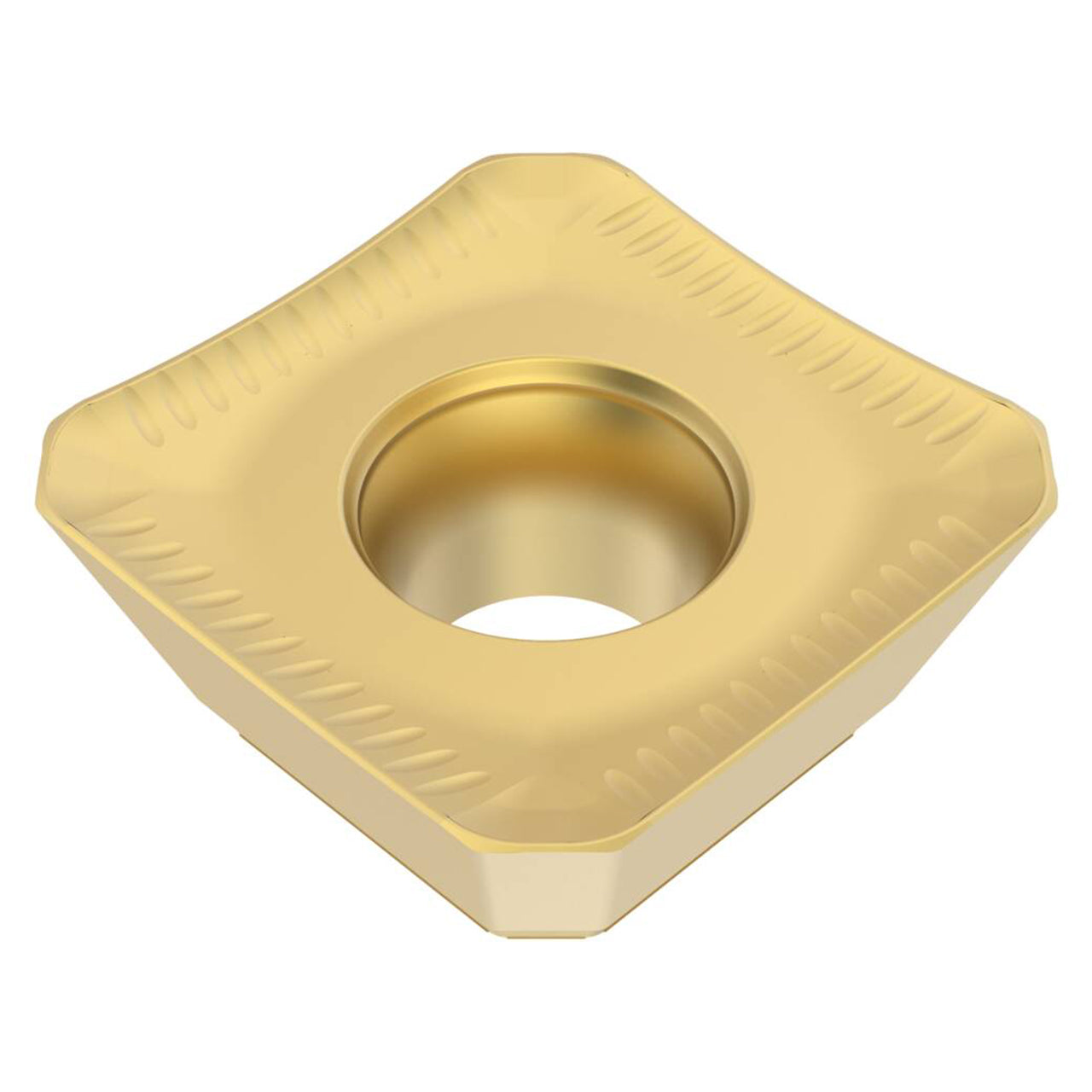

| Product Type | Face Milling Insert |
