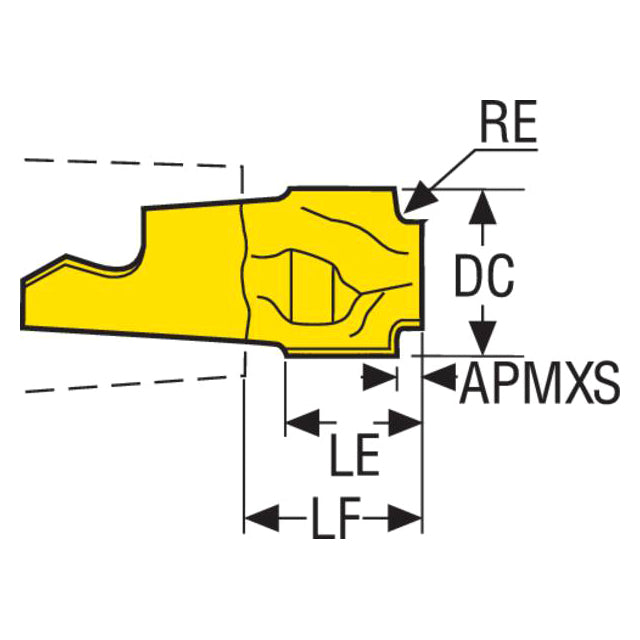

Product Specifications
| Manufacturer Part Number | 74034555 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Edge Effective Length (mm) | 10.60mm |
| Functional Length (mm) | 12.14mm |
| Maximum Depth of Cut (mm) | 2.20mm |
| Corner Radius (mm) | 1.00mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Square-Shoulder Milling Tip Insert |
