Product Specifications
| Manufacturer Part Number | 74025946 |
| Insert Diameter (Decimal Inch) | 0.118" |
| Insert Diameter (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.059" |
| Corner Radius (mm) | 1.50mm |
| Insert Gauge Length (Decimal Inch) | 0.551" |
| Insert Gauge Length (mm) | 14.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.169" |
| Maximum Cutting Depth Insert (mm) | 4.28mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Insert Width (Decimal Inch) | 0.375" |
| Insert Width (mm) | 9.53mm |
| Cutting Edge Count | 2 |
| Insert Size And Shape | 14ER |
| Material | Carbide |
| Insert Hand | Both |

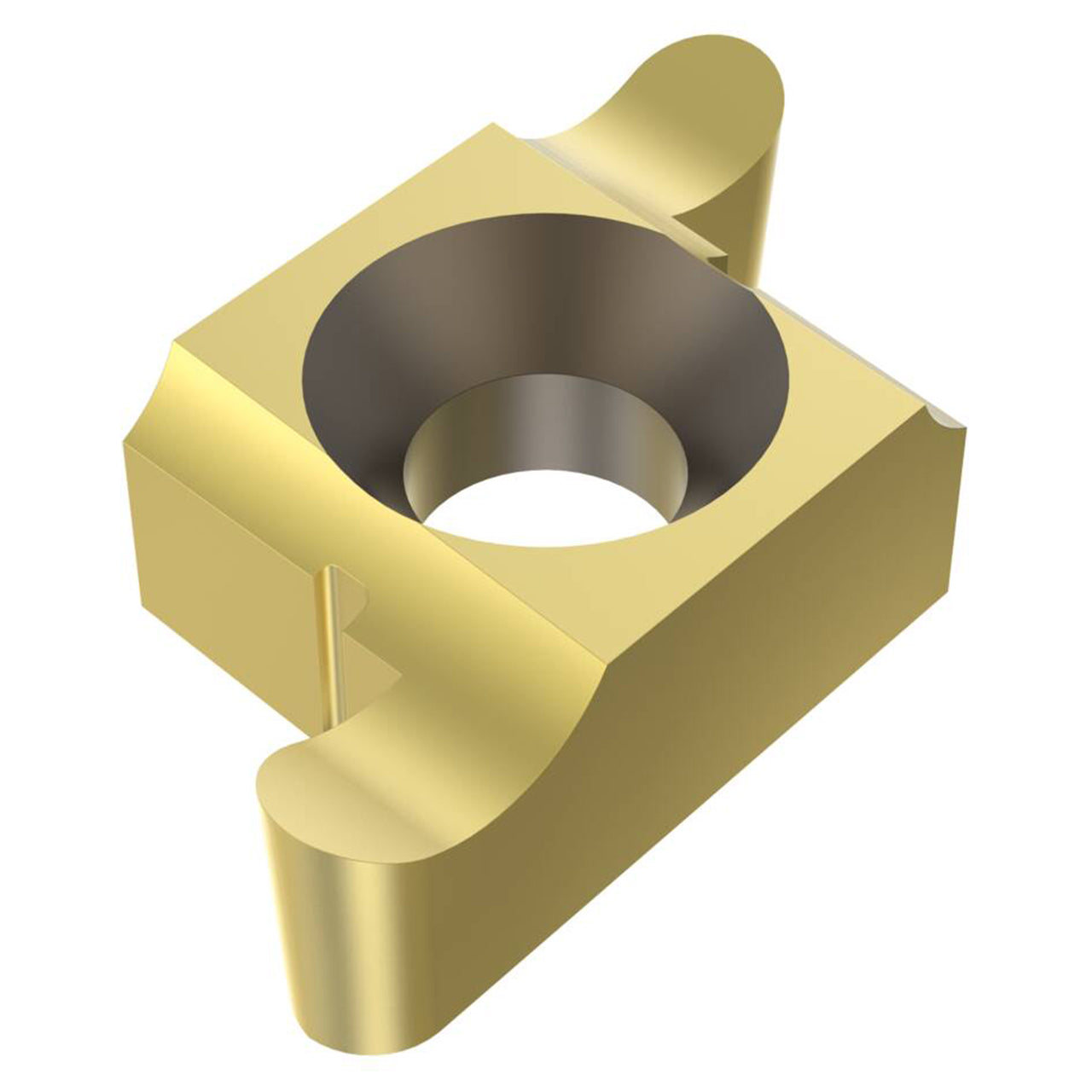

| Product Type | Grooving Insert |
