Product Specifications
| Manufacturer Part Number | 74016188 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |

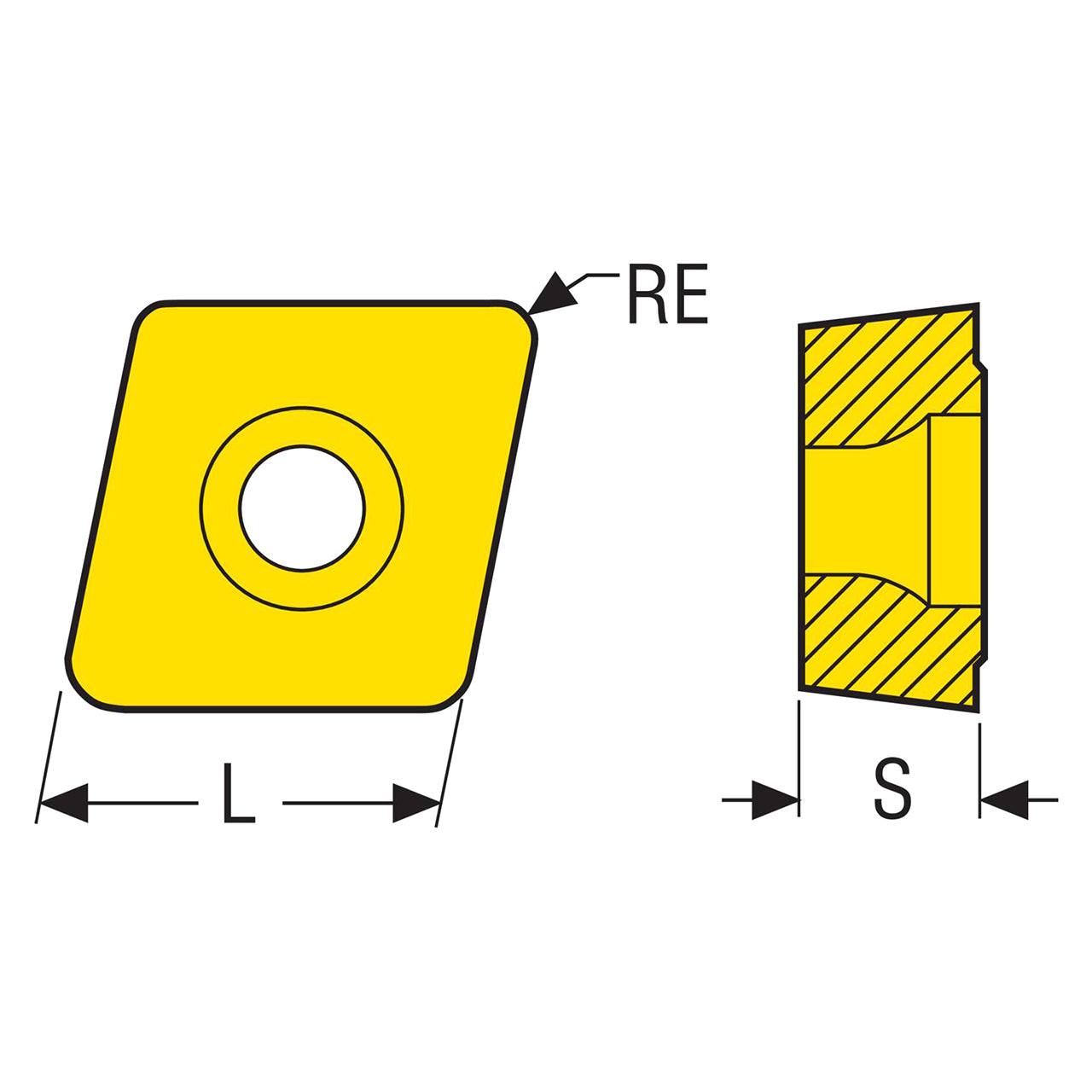

| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.375" |
| Theoretical Cutting Edge Length (mm) | 9.53mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD09 |
| Insert Included Angle (Degree) | 80 Degree |
| Material | Carbide |
| Insert Hand | Right Hand |
| Product Type | Milling Insert |
