Product Specifications
| Manufacturer Part Number | 74016176 |

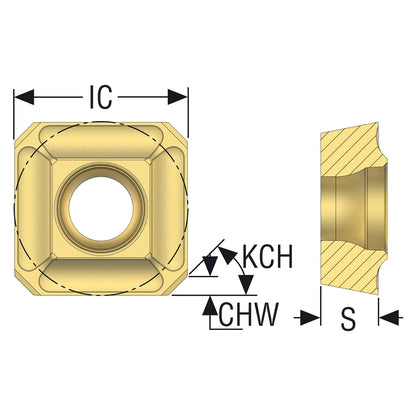

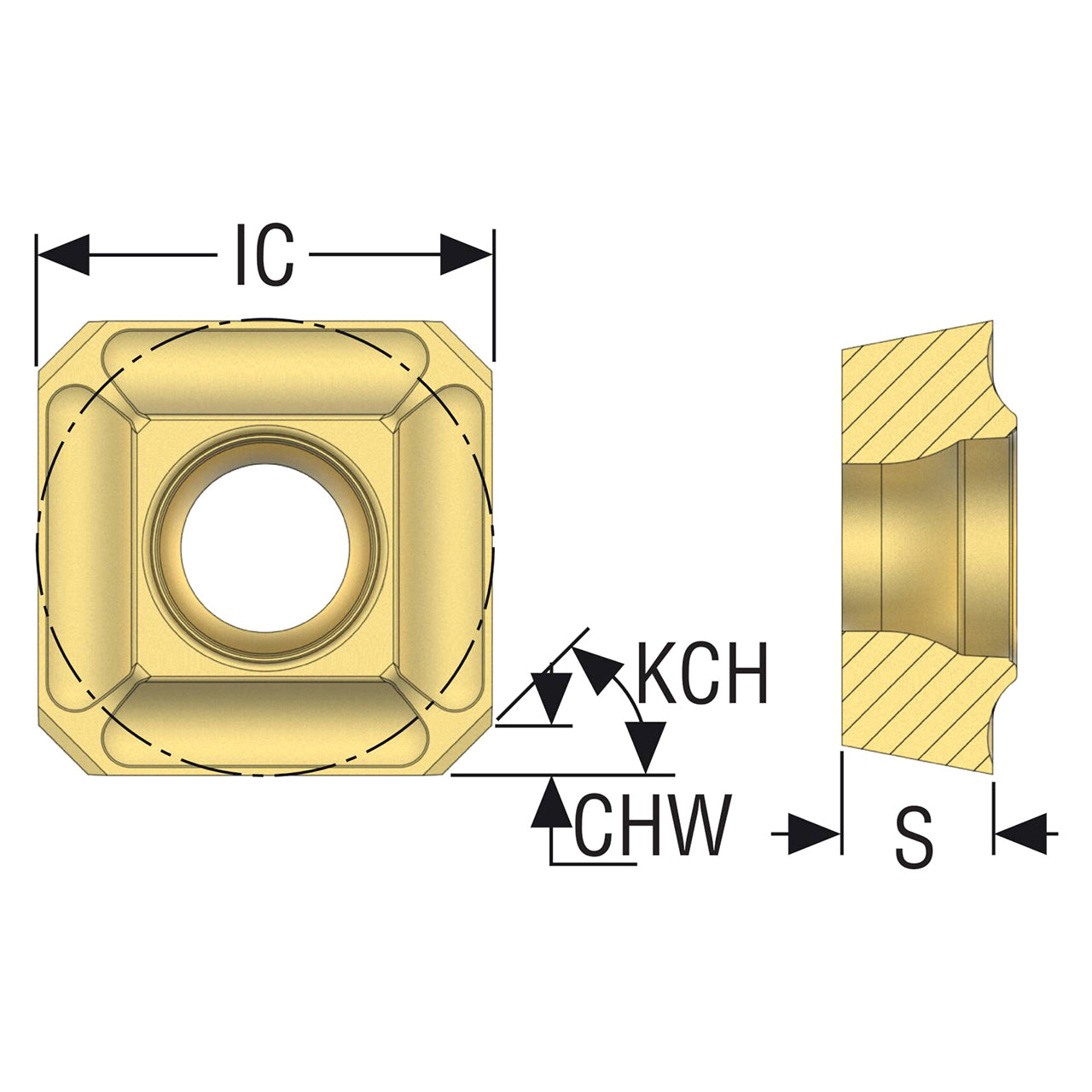

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Fixing Hole Diameter (Decimal Inch) | 0.150" |
| Fixing Hole Diameter (mm) | 3.80mm |
| Corner Chamfer Width (Decimal Inch) | 0.055" |
| Corner Chamfer Width (mm) | 1.39mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.500" |
| Theoretical Cutting Edge Length (mm) | 12.70mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | SPMX12T3 |
| Insert Included Angle (Degree) | 90 Degree |
| Material | Carbide |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Insert Shape Code | S |

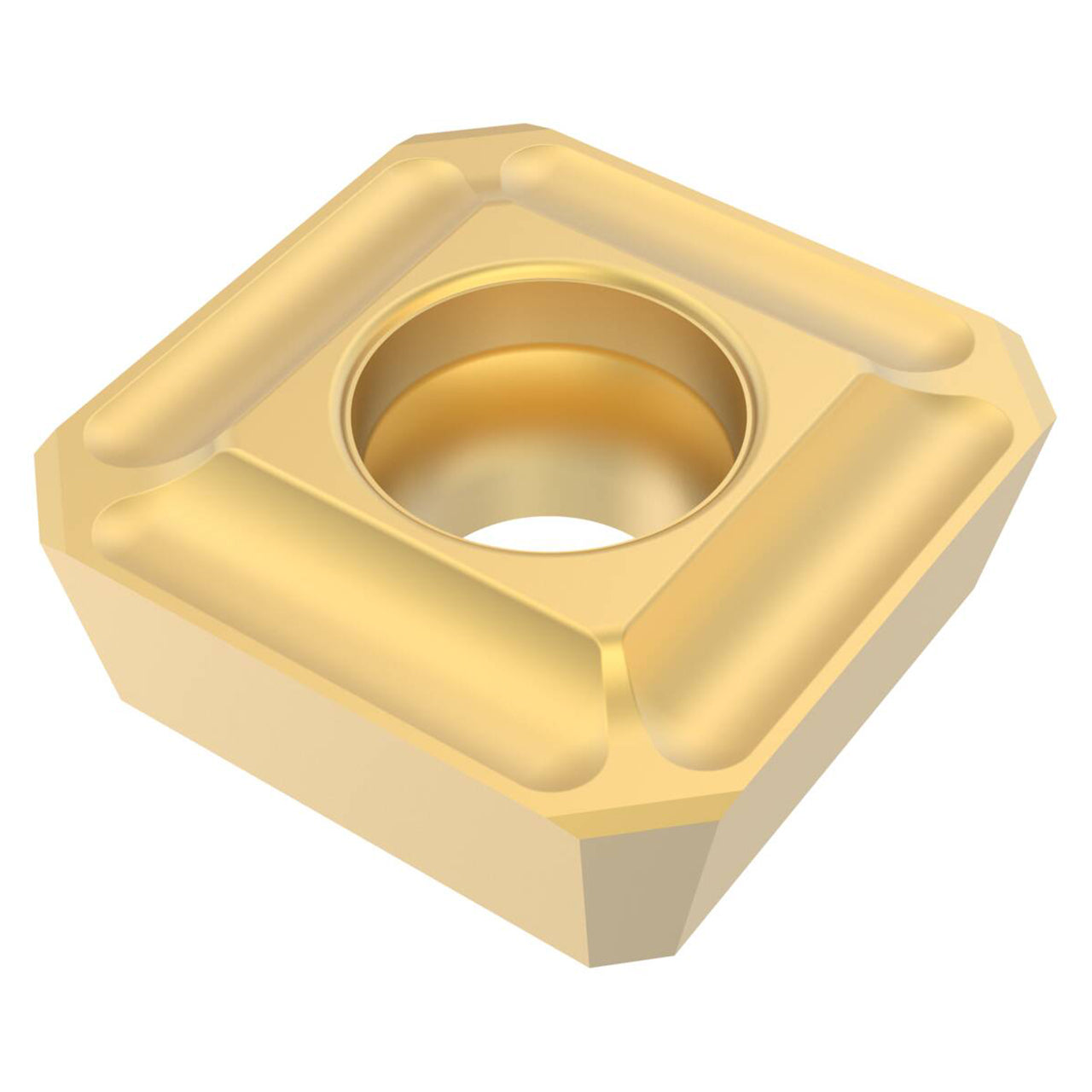

| Product Type | Milling Insert |
