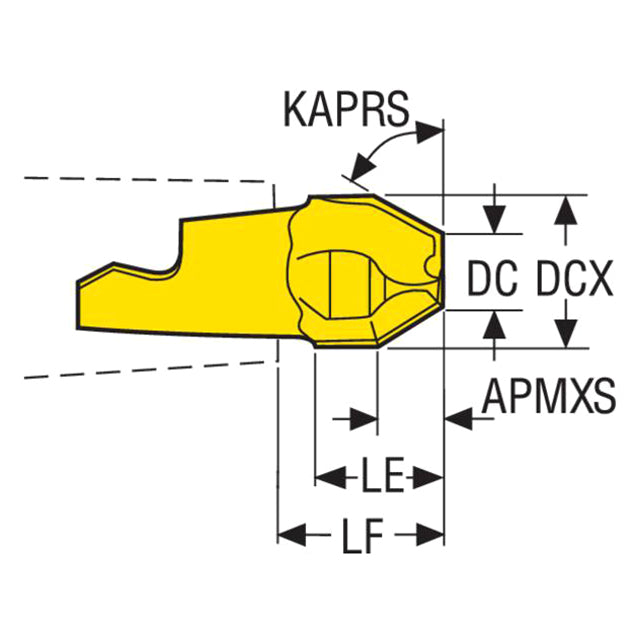

Product Specifications
| Manufacturer Part Number | 74004994 |
| Cutting Diameter (Decimal Inch) | 0.330" |
| Cutting Diameter (mm) | 8.38mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.630" |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.508" |
| Cutting Edge Effective Length (mm) | 12.90mm |
| Functional Length (Decimal Inch) | 0.602" |
| Functional Length (mm) | 15.30mm |
| Point Length (Decimal Inch) | 0.264" |
| Point Length (mm) | 6.70mm |
| Corner Chamfer Width (Decimal Inch) | 0.150" |
| Corner Chamfer Width (mm) | 3.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.264" |
| Maximum Depth of Cut (mm) | 6.70mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Corner Chamfer Angle (Degree) | 60 Degree |
| Rake Radial Angle (Degree) | 16 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Chamfer Milling Tip Insert |
