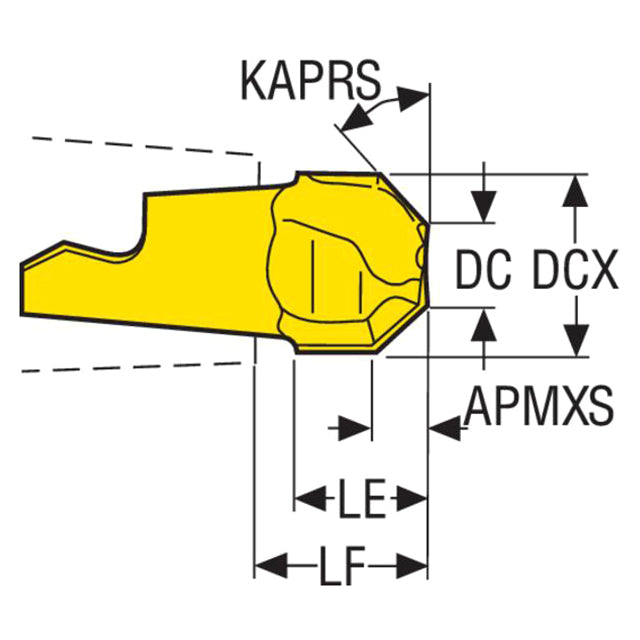

Product Specifications
| Manufacturer Part Number | 74003764 |
| Cutting Diameter (Decimal Inch) | 0.190" |
| Cutting Diameter (mm) | 4.82mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.394" |
| Maximum Cutting Diameter (mm) | 10.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.273" |
| Cutting Edge Effective Length (mm) | 6.94mm |
| Functional Length (Decimal Inch) | 0.334" |
| Functional Length (mm) | 8.48mm |
| Point Length (Decimal Inch) | 0.102" |
| Point Length (mm) | 2.60mm |
| Corner Chamfer Width (Decimal Inch) | 0.102" |
| Corner Chamfer Width (mm) | 2.60mm |
| Maximum Depth of Cut (Decimal Inch) | 0.102" |
| Maximum Depth of Cut (mm) | 2.60mm |
| Corner Radius (Decimal Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | 6 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Chamfer Milling Tip Insert |
