Product Specifications
| Manufacturer Part Number | 17007062 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 1.625" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Overall Length (Decimal Inch) | 4.000" |
| Corner Radius (Decimal Inch) | 0.020" |
| Shank Diameter Tolerance Class | ANSI B94.19 |
| Series | S545R |
| Number of Flutes | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Shank Type | Cylindrical |
| Center Cutting | Yes |
| Helix Angle (Degree) | 45 Degree |
| Coating | AlTiN |

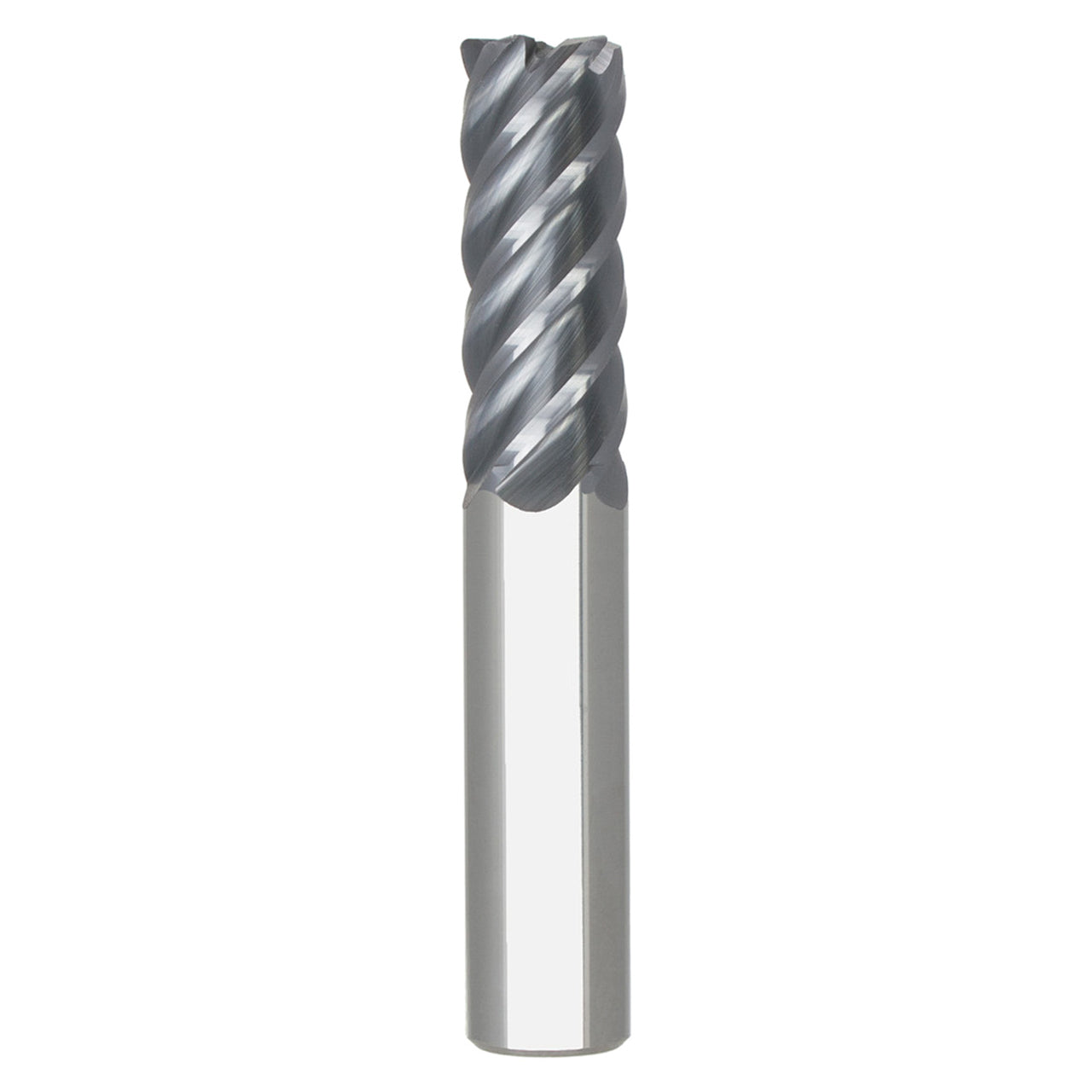

| Product Type | Corner Radius End Mill |
