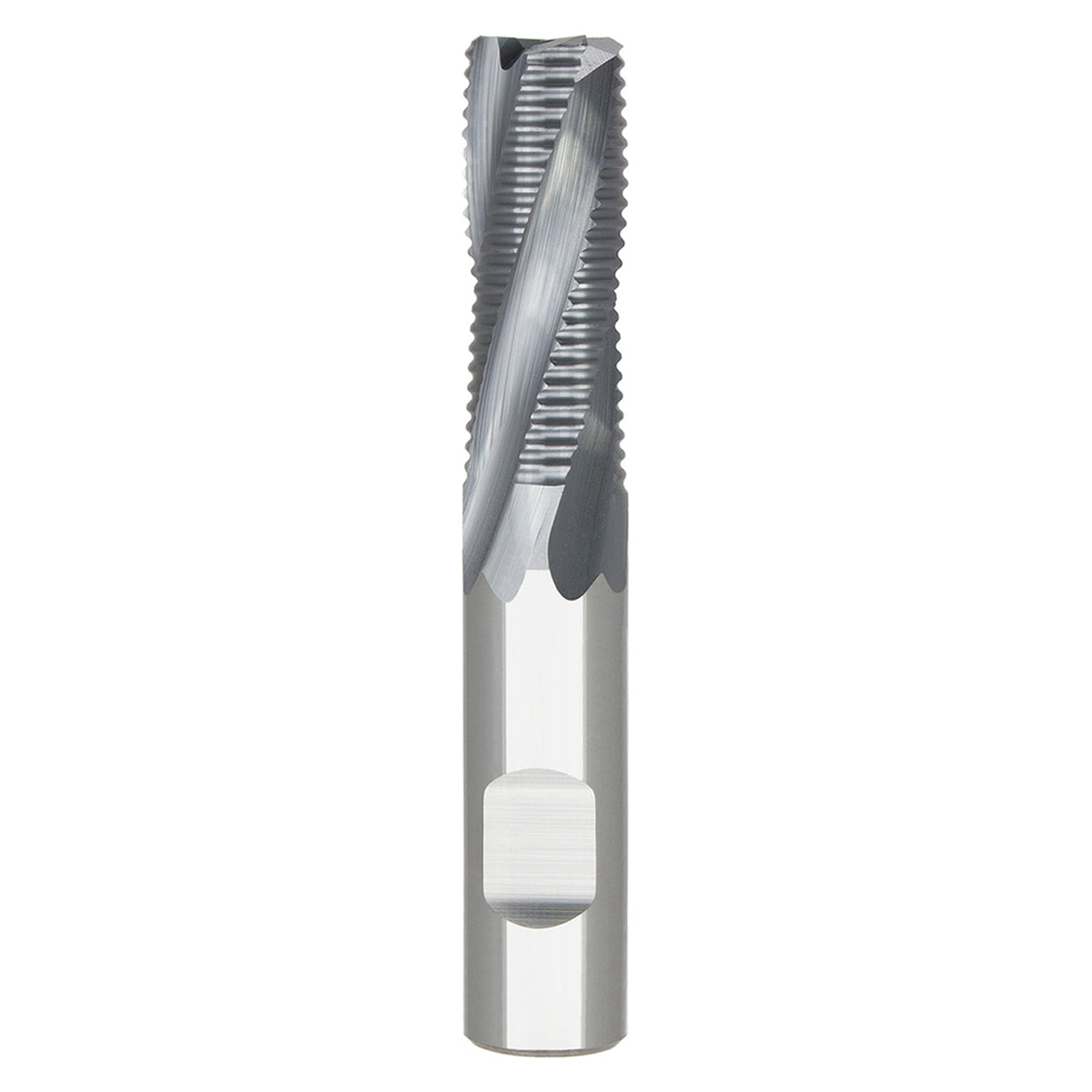

Product Specifications
| Manufacturer Part Number | 17000970 |
| Maximum Depth of cut in Feed Direction Side (mm) | 22.00mm |
| Chamfer Width (mm) | 0.51mm |
| Cutting Diameter (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Overall Length (mm) | 73.00mm |
| Shank Diameter Tolerance Class | h6 |
| Series | SR420M |
| Number of Flutes | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Center Cutting | Yes |
| Helix Angle (Degree) | 20 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Coating | AlTiN |
| Product Type | Roughing End Mill |
