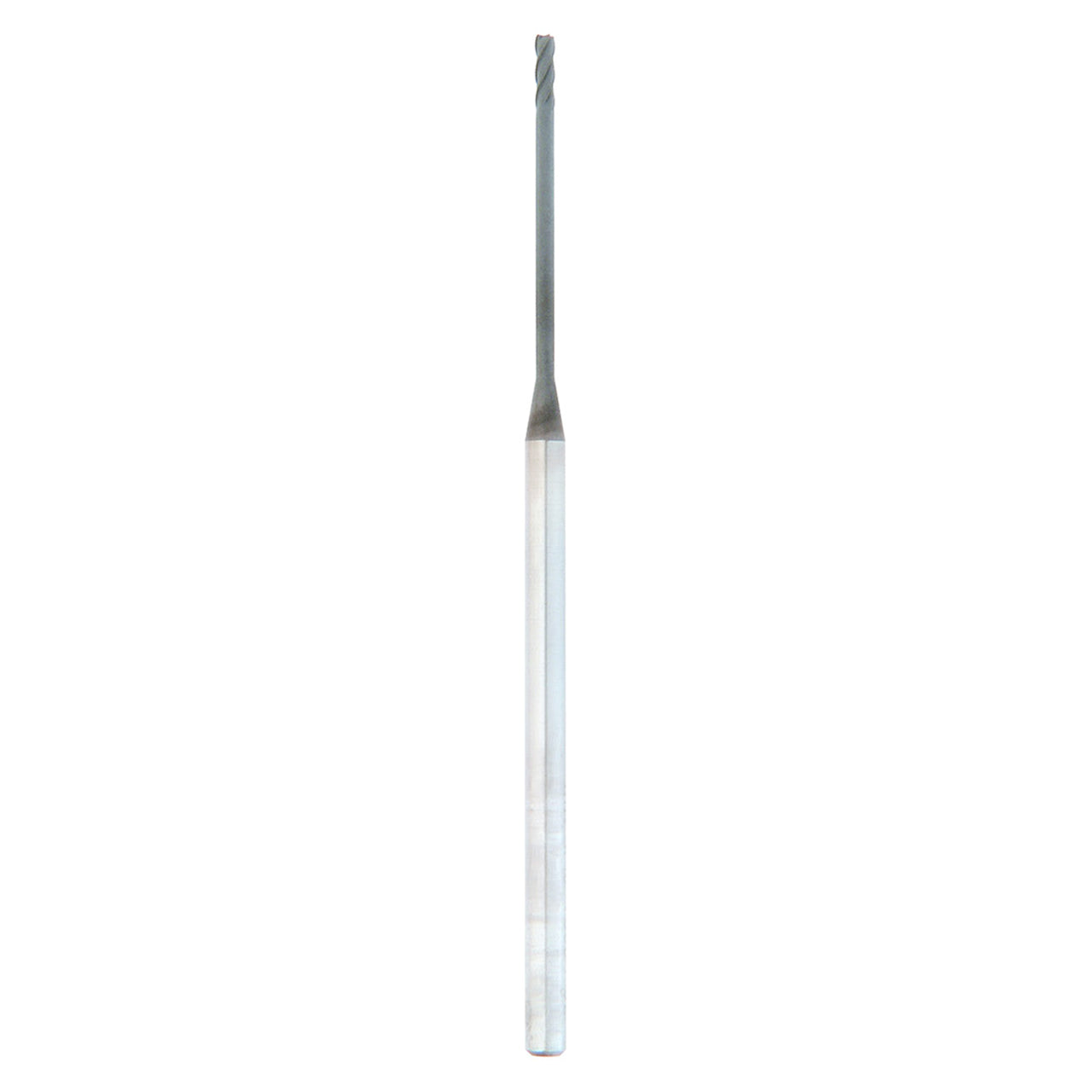

Product Specifications
| Manufacturer Part Number | 17000080 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.094" |
| Cutting Diameter (Decimal Inch) | 0.031" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Decimal Inch) | 0.028" |
| Neck Length (Decimal Inch) | 0.375" |
| Overall Length (Decimal Inch) | 3.000" |
| Corner Radius (Decimal Inch) | 0.005" |
| Shank Diameter Tolerance Class | ANSI B94.19 |
| Series | DIAXRR430 |
| Number of Flutes | 4 |
| Grade | CVDDIA |
| Pheripheral Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Center Cutting | Yes |
| Helix Angle (Degree) | 30 Degree |
| Coating | Diamond CVD |
| Product Type | Corner Radius End Mill |
