Product Specifications
| Manufacturer Part Number | 14000757 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.750" |
| Connection Diameter Workpiece Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 0.472" |
| Body Length (mm) | 12.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 3.130" |
| Overall Length (mm) | 79.50mm |
| Body Half Taper Angle Degree) | 45 Degree |

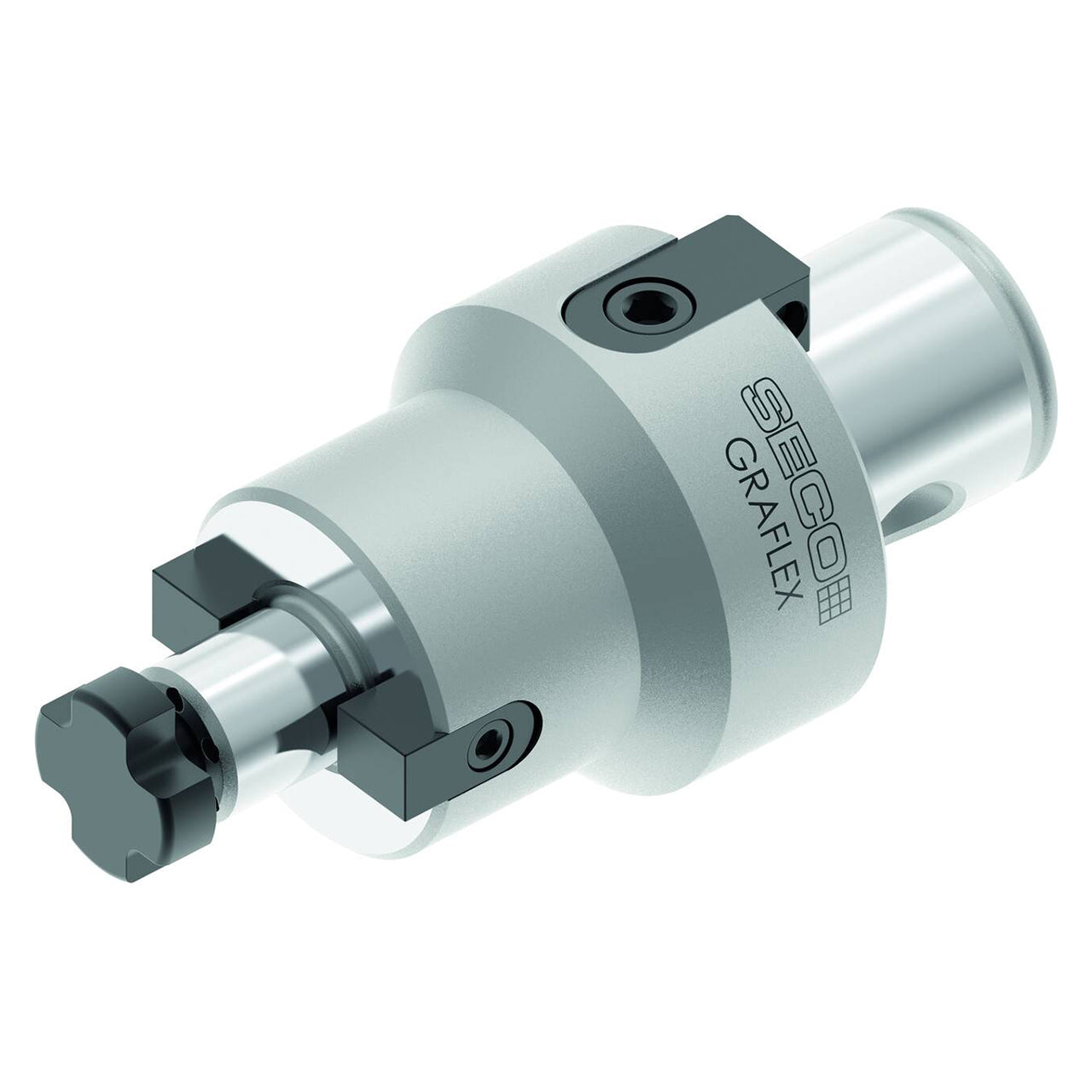

| Product Type | Shell Mill Holder |
