Product Specifications
| Manufacturer Part Number | 10343900 |
| Maximum Depth of cut in Feed Direction Side (mm) | 0.70mm |
| Curved Cutting Edge Radius (mm) | 7.50mm |
| Cutting Diameter (mm) | 6.00mm |
| Contact Surface Machine Side Diameter (mm) | 11.70mm |
| Functional length (mm) | 14.40mm |
| Overall Length (mm) | 28.20mm |
| Corner Radius (mm) | 0.80mm |
| Wrench Size (mm) | 10.00mm |
| Torque (N/m) | 15.00 Nm |
| Coolant Supply Property | Yes |
| Number of Flutes | 3 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 3 |
| Helix Angle (Degree) | 10 Degree |
| Coating | SIRON-A |

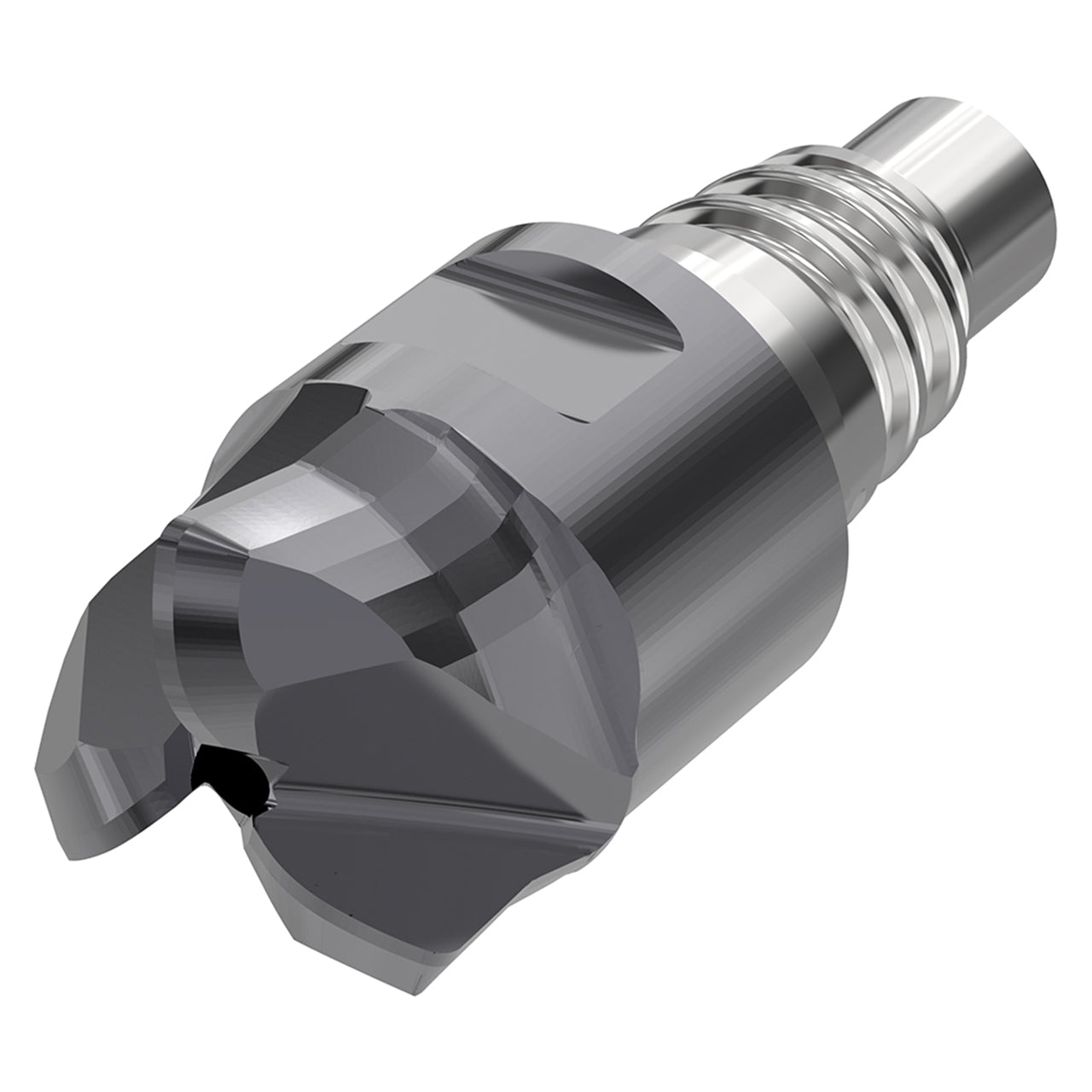

| Product Type | High Feed Milling Tip Insert |
