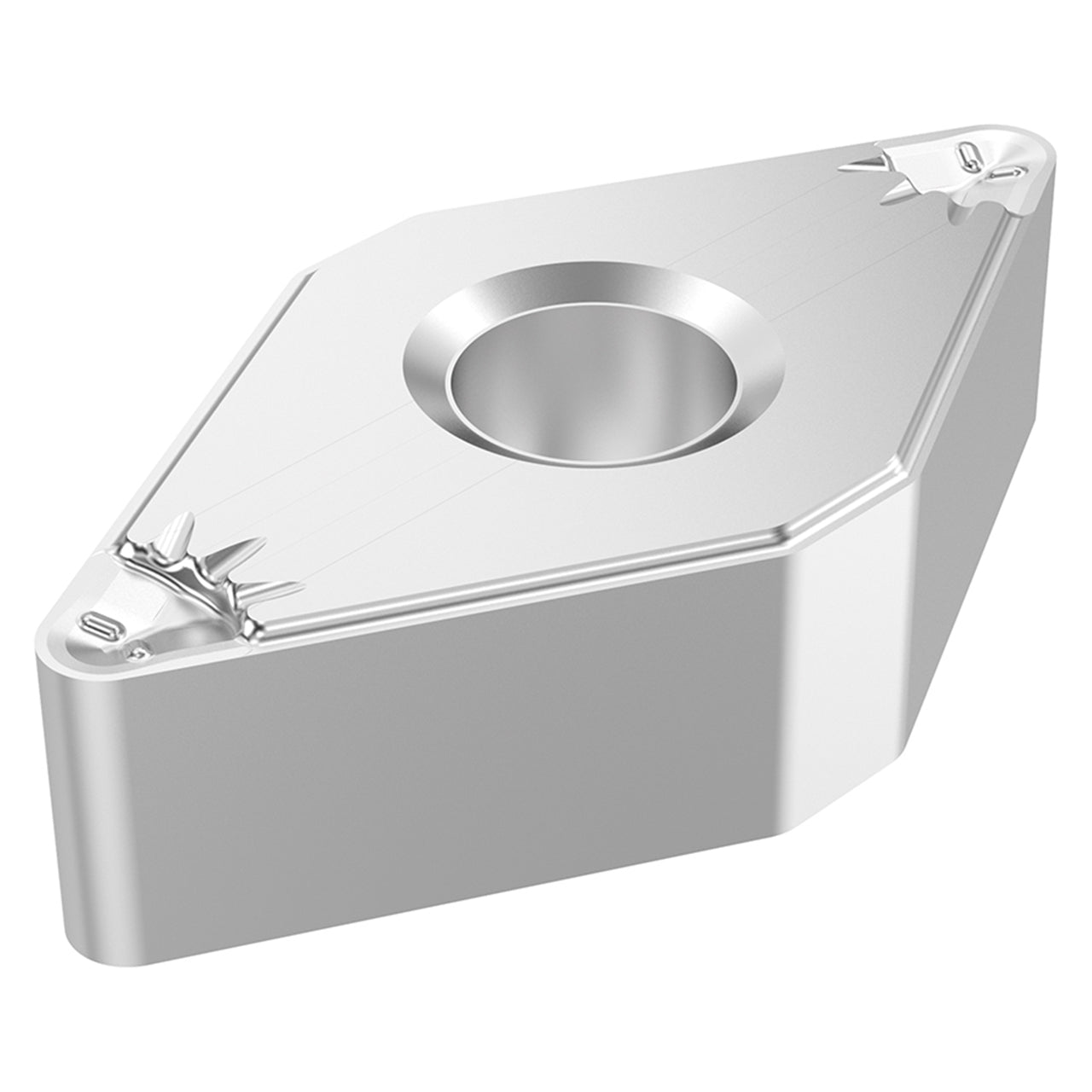

Product Specifications
| Manufacturer Part Number | 10341671 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Cutting Edge Length (Decimal Inch) | 0.610" |
| Cutting Edge Effective Length (Decimal Inch) | 0.487" |
| Corner Radius (Decimal Inch) | 0.047" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Cutting Edge Count | 4 |
| Chip Breaker Manufacturers Designation | MF5 |
| Grade | TS0501 |
| Grade type | Carbide CVD |
| Insert Seat Size Code | 15 |
| Insert Hand | Neutral |
| Insert Included Angle (Degree) | 55 Degree |
| Coating | CVD |
| Material | Carbide |
| Product Type | Turning Insert |
