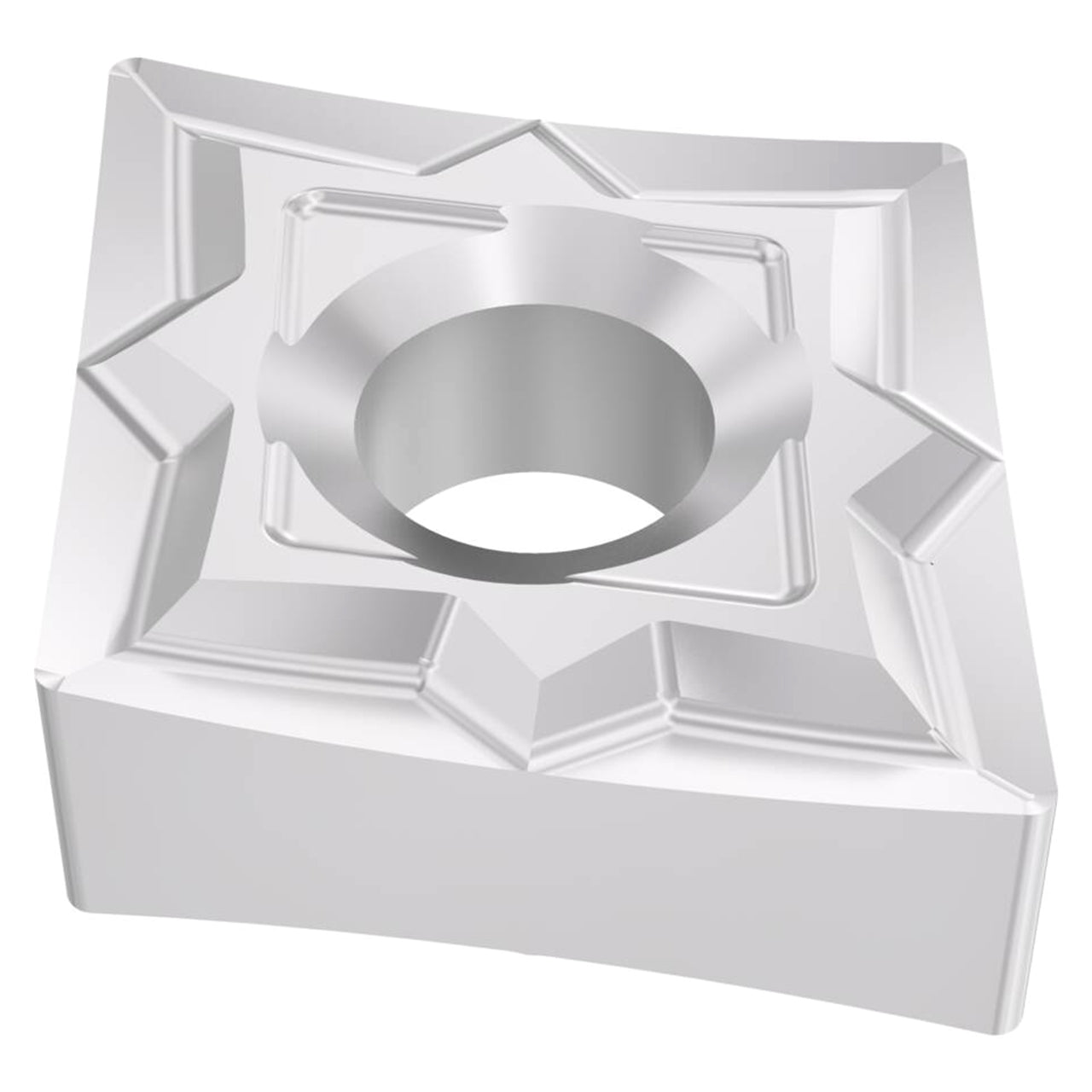

Product Specifications
| Manufacturer Part Number | 10341663 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Cutting Edge Length (Decimal Inch) | 0.508" |
| Cutting Edge Effective Length (Decimal Inch) | 0.476" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Cutting Edge Count | 4 |
| Chip Breaker Manufacturers Designation | MF1 |
| Grade | TS0501 |
| Grade type | Carbide CVD |
| Insert Seat Size Code | 12 |
| Insert Hand | Neutral |
| Insert Included Angle (Degree) | 80 Degree |
| Coating | CVD |
| Material | Carbide |
| Product Type | Turning Insert |
