Product Specifications
| Manufacturer Part Number | 10339126 |
| Fixing Hole Diameter (Decimal Inch) | 0.150" |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Cutting Edge Length (Decimal Inch) | 0.257" |
| Cutting Edge Effective Length (Decimal Inch) | 0.245" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Cutting Edge Count | 6 |
| Chip Breaker Manufacturers Designation | MR3 |
| Grade | TS2050 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 06 |
| Insert Hand | Neutral |
| Insert Included Angle (Degree) | 80 Degree |
| Coating | PVD |
| Material | Carbide |

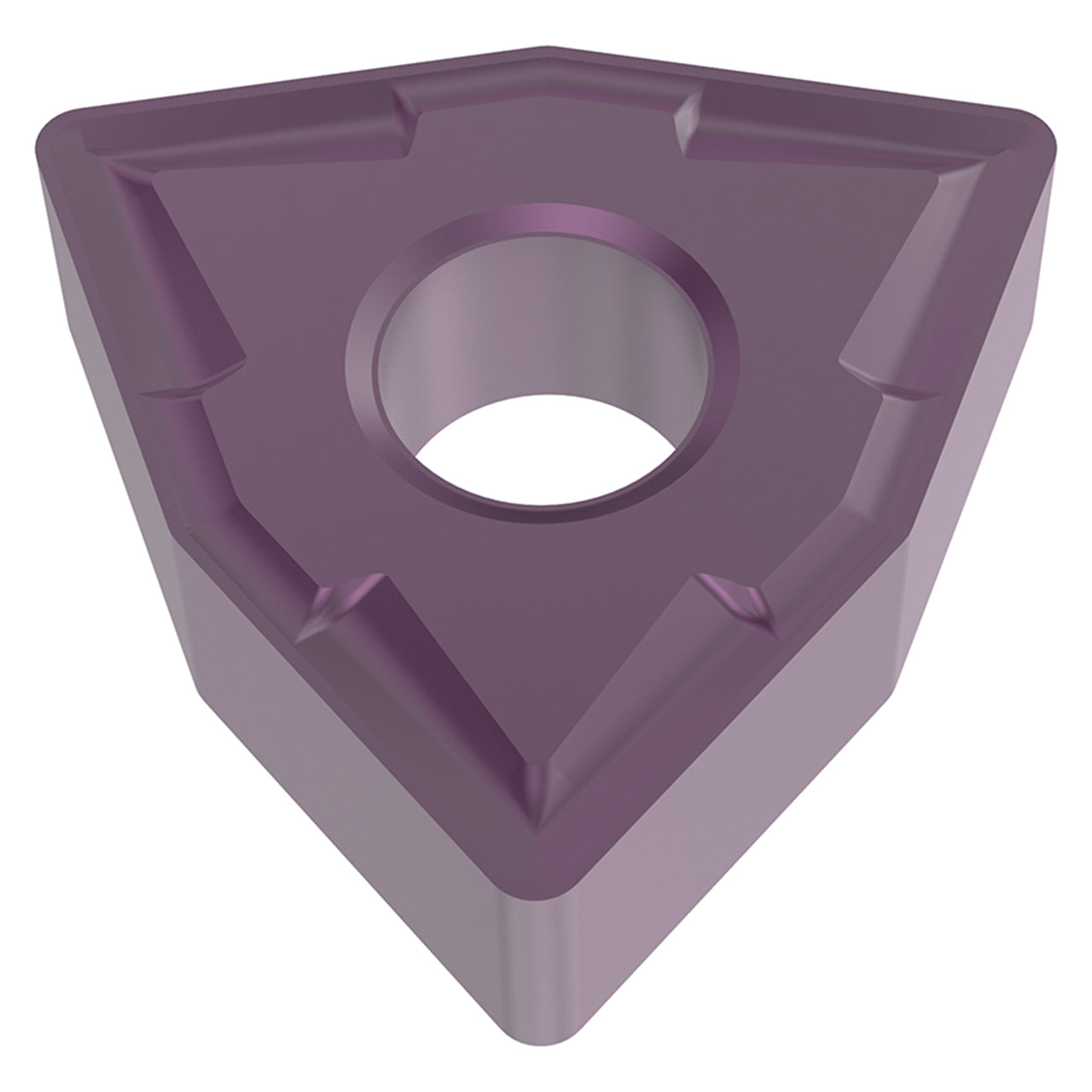

| Product Type | Turning Insert |
