Product Specifications
| Manufacturer Part Number | 10338727 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Insert Diameter (Decimal Inch) | 0.394" |
| Insert Thickness (Decimal Inch) | 0.156" |
| Cutting Edge Count | 4 |
| Chip Breaker Manufacturers Designation | MF2 |
| Grade | CP500 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 10 |
| Insert Hand | Neutral |
| Clearance Angle (Degree) | 7 Degree |
| Coating | PVD |
| Material | Carbide |

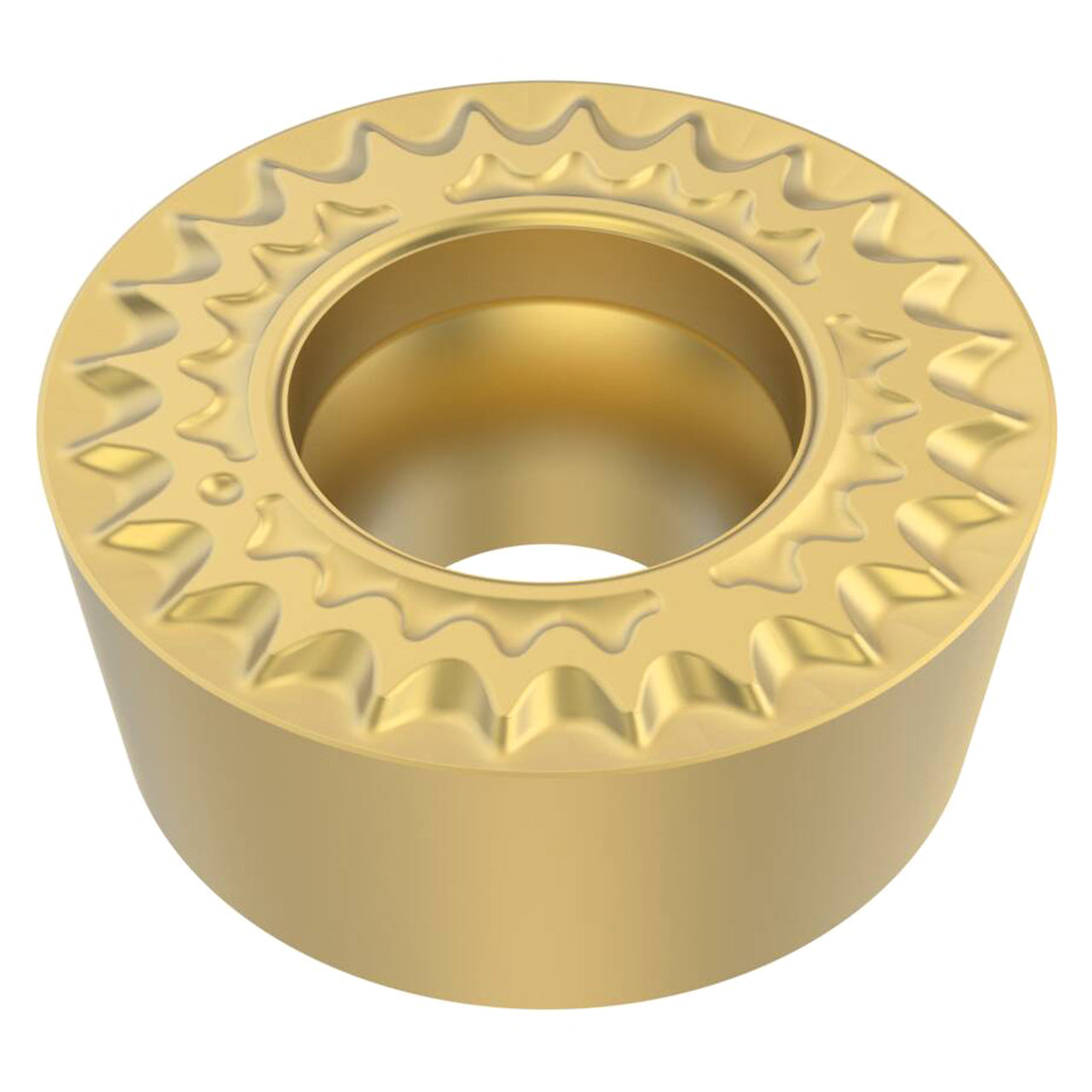

| Product Type | Turning Insert |
