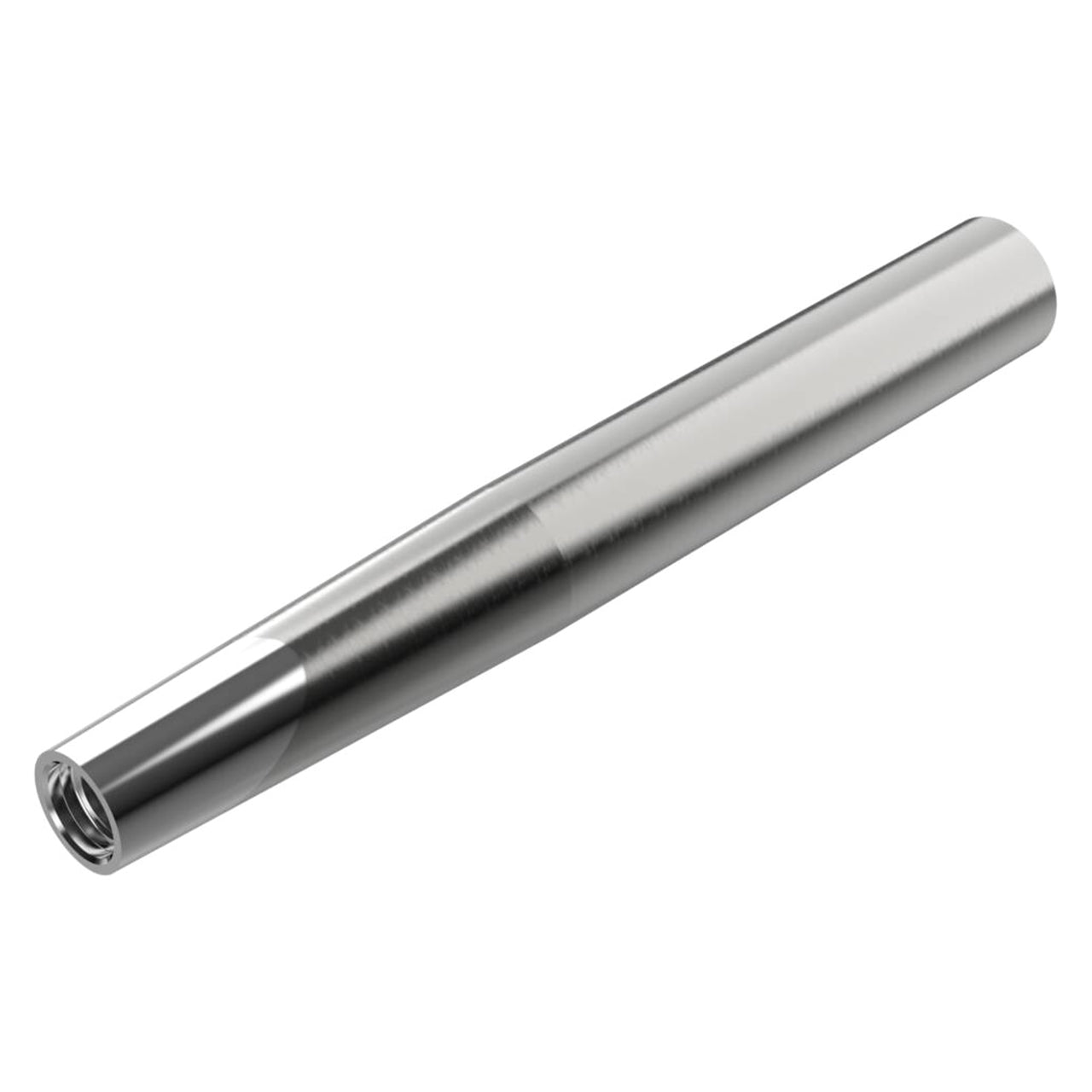

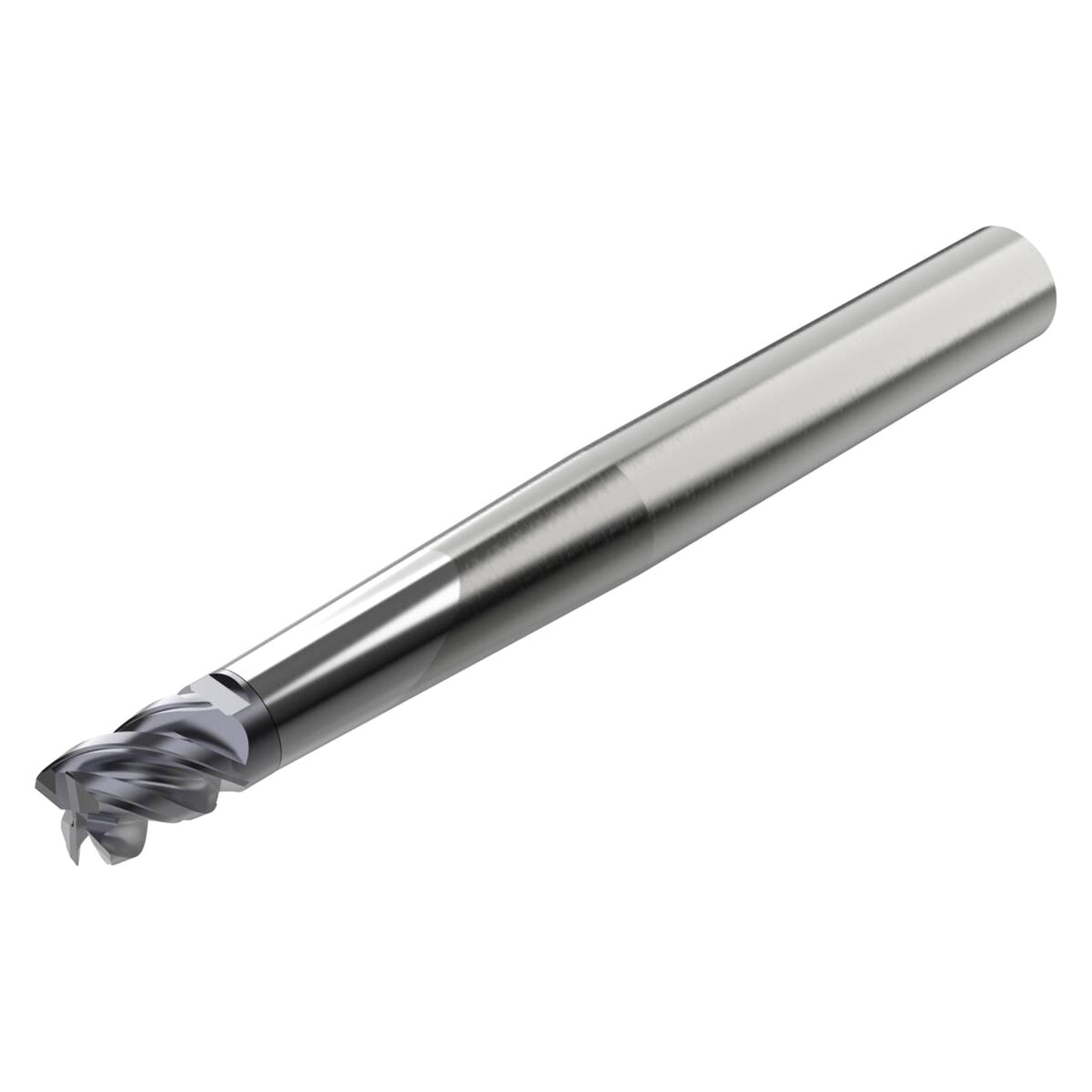

Product Specifications
| Manufacturer Part Number | 10334243 |
| Workpiece Side Contact Surface Diameter (mm) | 19.20mm |
| Shank Diameter (mm) | 32.00mm |
| Functional length (mm) | 73.20mm |
| Overall Length (mm) | 175.00mm |
| Maximum Rotational Speed (RPM) | 21000 RPM |
| Torque (N/m) | 50.00 Nm |
| Workpiece Side Connection Size code | E20 |
| Shank Type | Cylindrical |
| Body Half Taper Angle (Degree) | 5 Degree |
| Product Type | Milling Tip Holder & Shank |
