Product Specifications
| Manufacturer Part Number | 10334235 |
| Workpiece Side Contact Surface Diameter (mm) | 15.40mm |
| Shank Diameter (mm) | 20.00mm |
| Functional length (mm) | 80.00mm |
| Overall Length (mm) | 135.00mm |
| Torque (N/m) | 30.00 Nm |
| Workpiece Side Connection Size code | E16 |
| Shank Type | Cylindrical |
| Body Half Taper Angle (Degree) | 1 Degree |

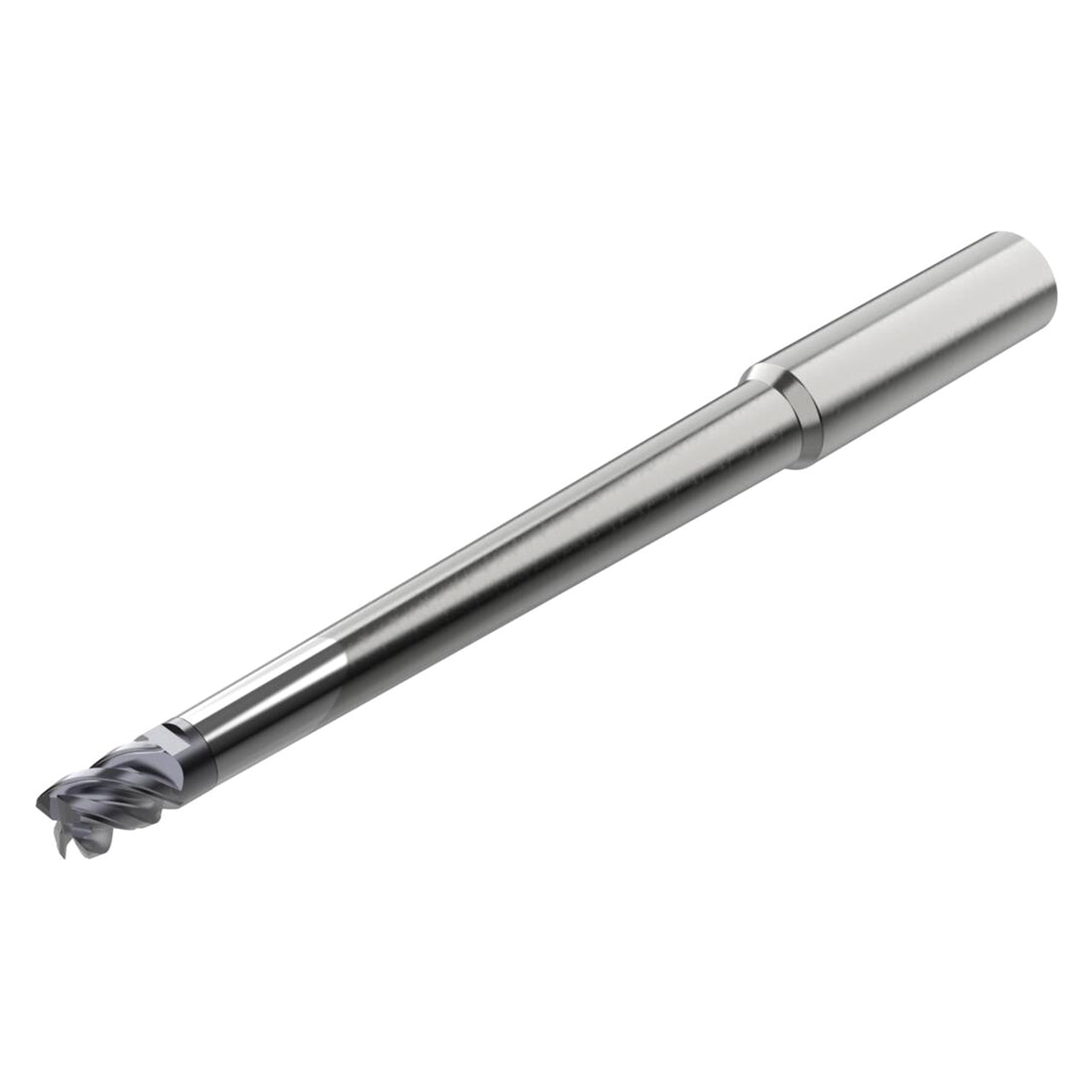

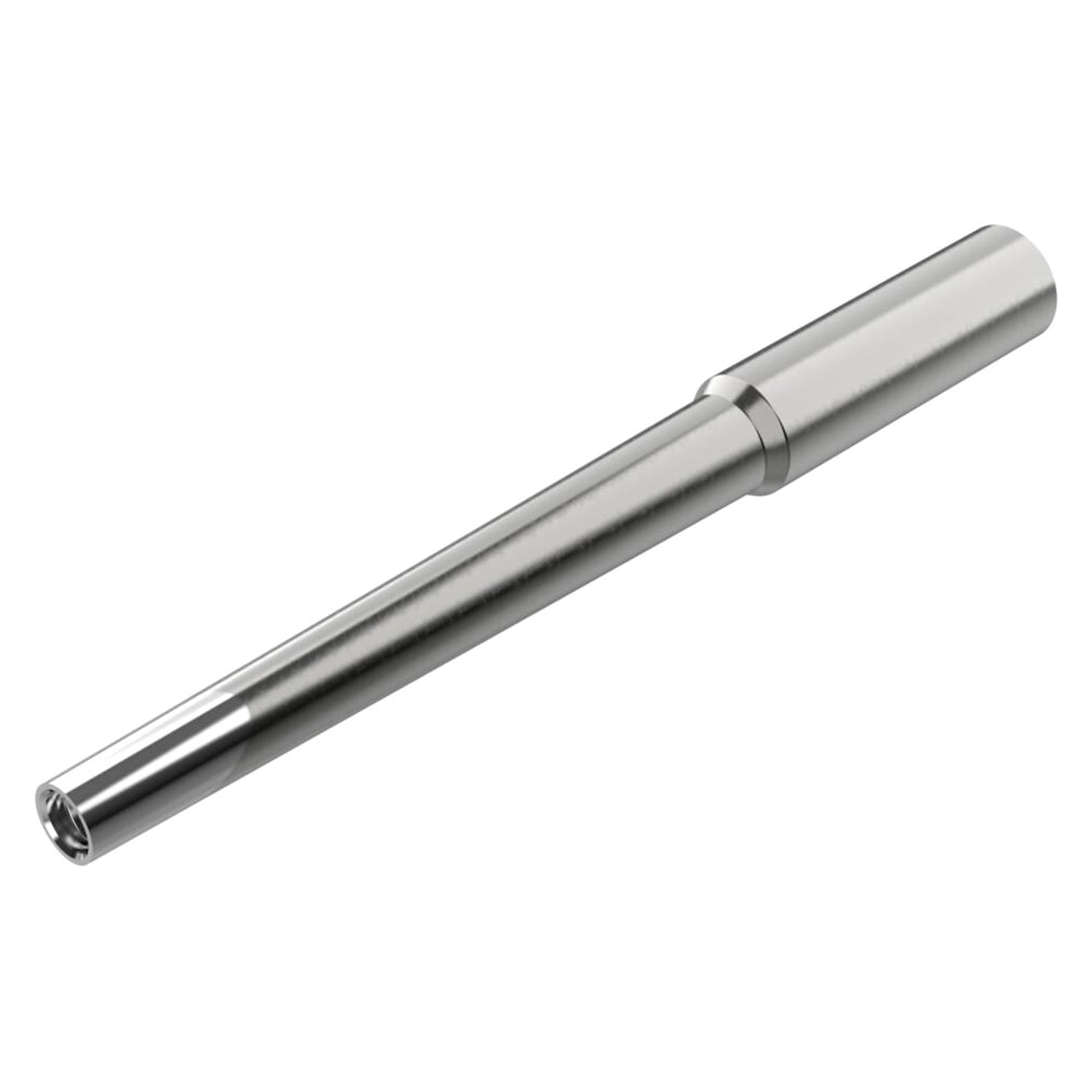

| Product Type | Milling Tip Holder & Shank |
