Product Specifications
| Manufacturer Part Number | 10333577 |
| Minimum Cutting Diameter (Decimal Inch) | 0.630" |
| Machine Side Connection Diameter (Decimal Inch) | 0.787" |
| Maximum Cutting Diameter (Decimal Inch) | 0.669" |
| Flange Diameter (Decimal Inch) | 0.984" |
| Secondary Functional length (Decimal Inch) | 4.102" |
| Shank Length (Decimal Inch) | 1.969" |
| Usable Length (Decimal Inch) | 3.347" |
| Maximum Usable Length (Decimal Inch) | 3.492" |
| Overall Length (Decimal Inch) | 6.071" |
| Peripheral Effective Cutting Edge Count | 2 |
| Shank Type | ISO 9766 |

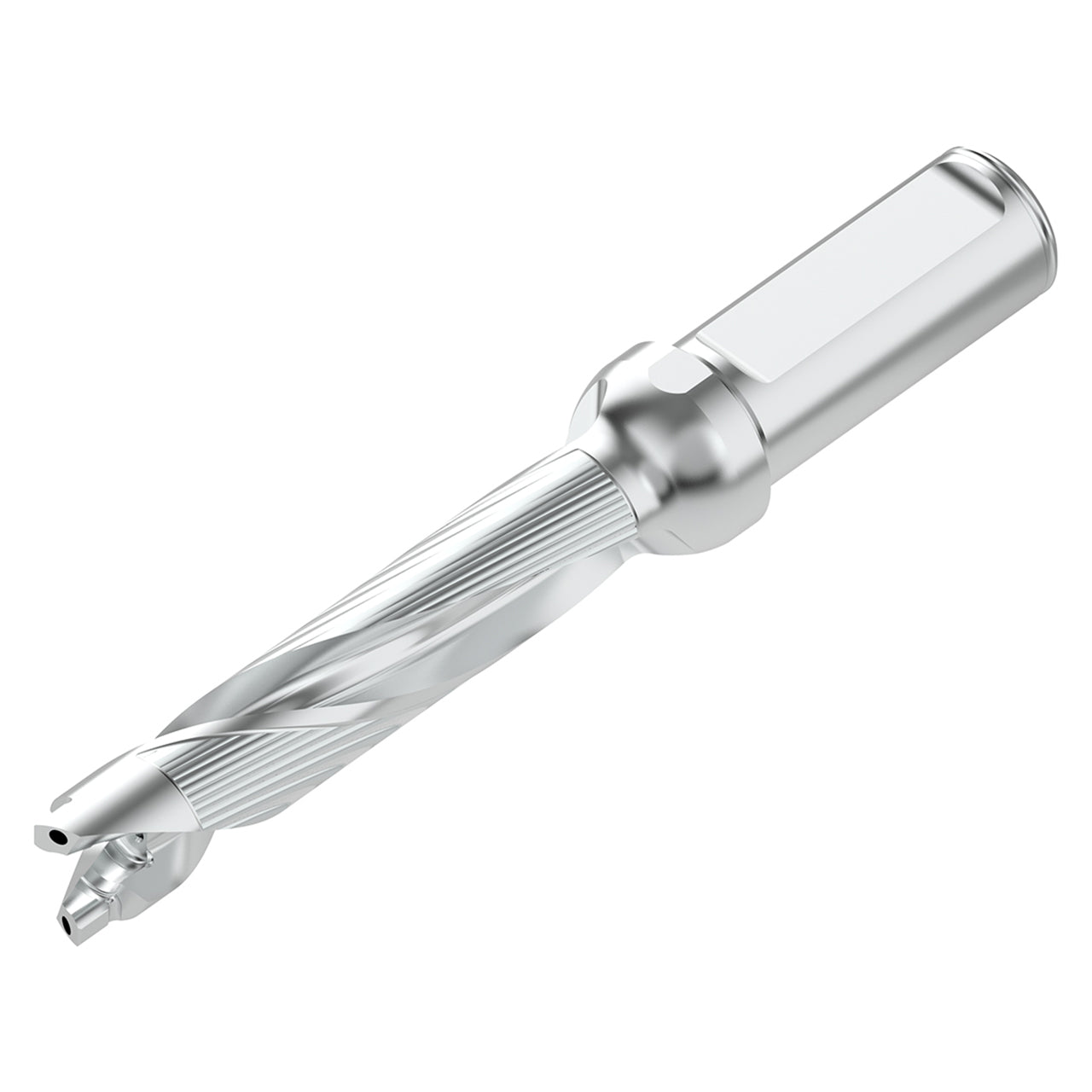

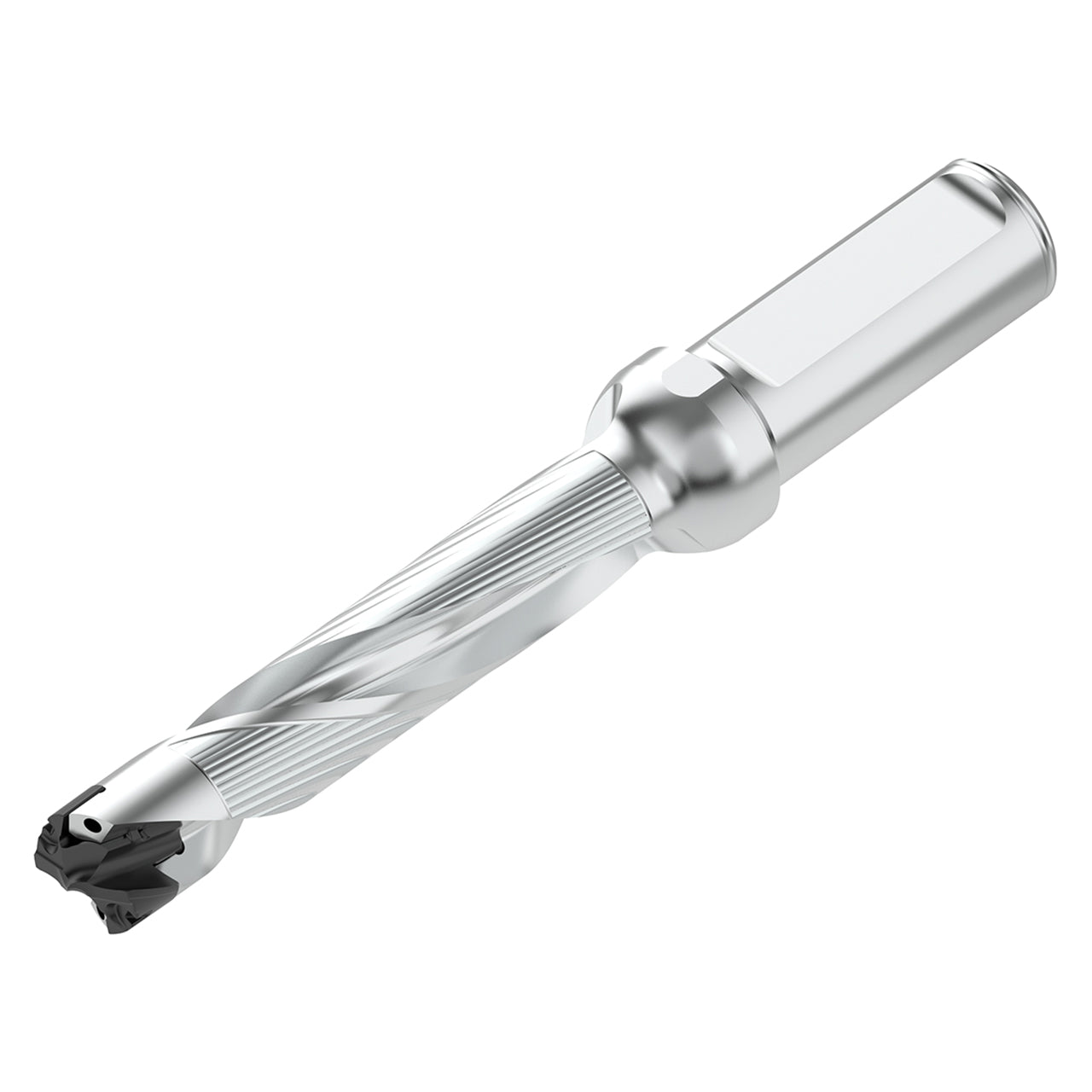

| Product Type | Replaceable-Tip Drill |
