Product Specifications

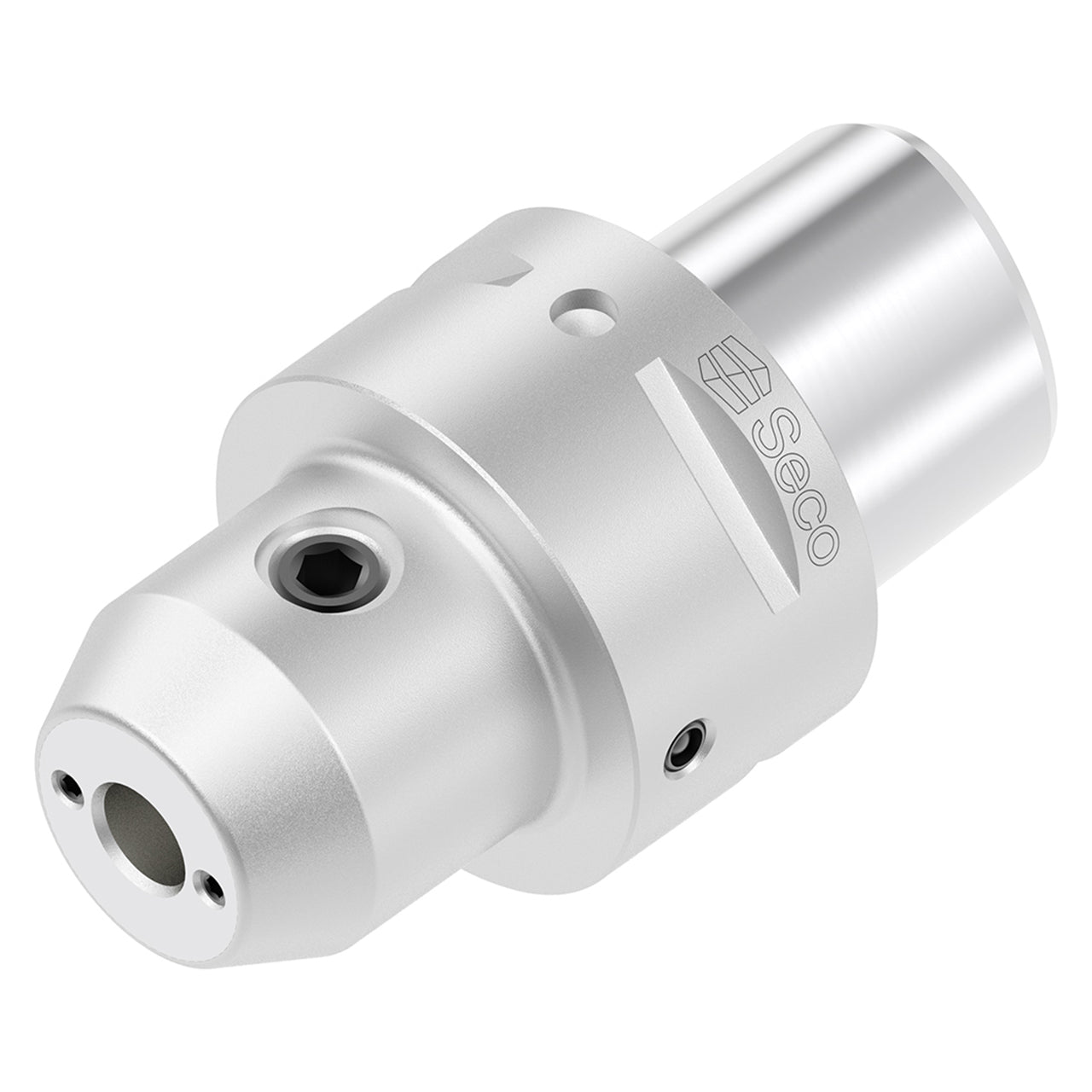

| Manufacturer Part Number | 10327247 |
| Nose Diameter (Decimal Inch) | 1.370" |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.375" |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.375" |
| Body Length (Decimal Inch) | 1.595" |
| Secondary Functional length (Decimal Inch) | 1.750" |
| Protruding Length (Decimal Inch) | 2.500" |
| Clamping Length (Decimal Inch) | 1.496" |
| Overall Length (Decimal Inch) | 3.445" |
| Machine Side Connection Text | C4 |
| Complete Insert Compatibility | EM0.375 |
| Balance Quality Code | Pre-Balanced |
| Product Type | End Mill Holder |
