Product Specifications
| Manufacturer Part Number | 10327225 |
| Nose Diameter (Decimal Inch) | 1.654" |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Body Length (Decimal Inch) | 1.457" |
| Secondary Functional length (Decimal Inch) | 1.476" |
| Protruding Length (Decimal Inch) | 2.362" |
| Clamping Length (Decimal Inch) | 1.693" |
| Overall Length (Decimal Inch) | 3.543" |
| Machine Side Connection Text | C5 |
| Complete Insert Compatibility | EM12 |
| Balance Quality Code | Pre-Balanced |
| Data Chip Pocket | Yes |

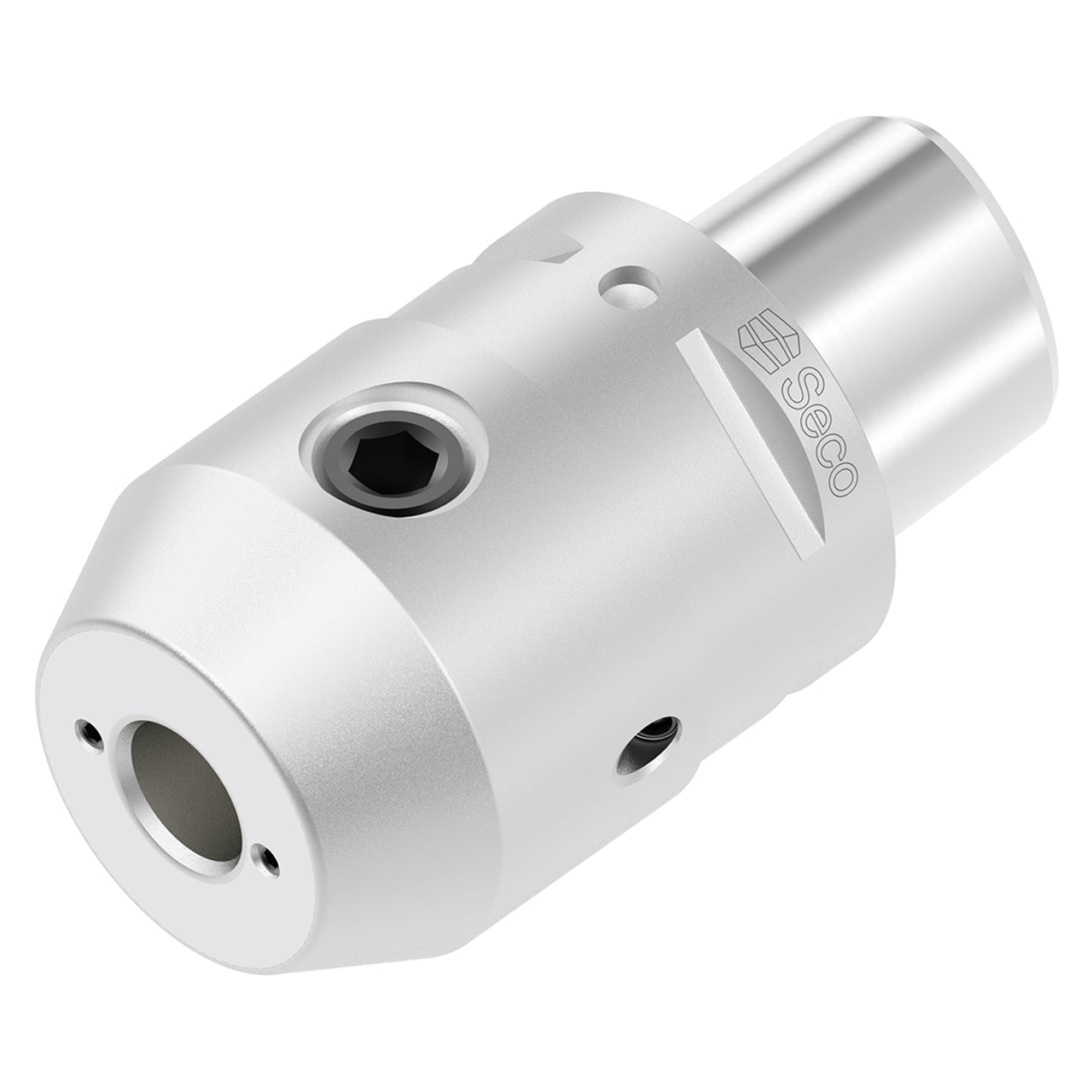

| Product Type | End Mill Holder |
