Product Specifications
| Manufacturer Part Number | 10327219 |
| Nose Diameter (Decimal Inch) | 1.378" |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Body Length (Decimal Inch) | 1.063" |
| Secondary Functional length (Decimal Inch) | 1.181" |
| Protruding Length (Decimal Inch) | 1.969" |
| Clamping Length (Decimal Inch) | 1.417" |
| Overall Length (Decimal Inch) | 2.913" |
| Machine Side Connection Text | C4 |
| Complete Insert Compatibility | EM10 |
| Balance Quality Code | Pre-Balanced |

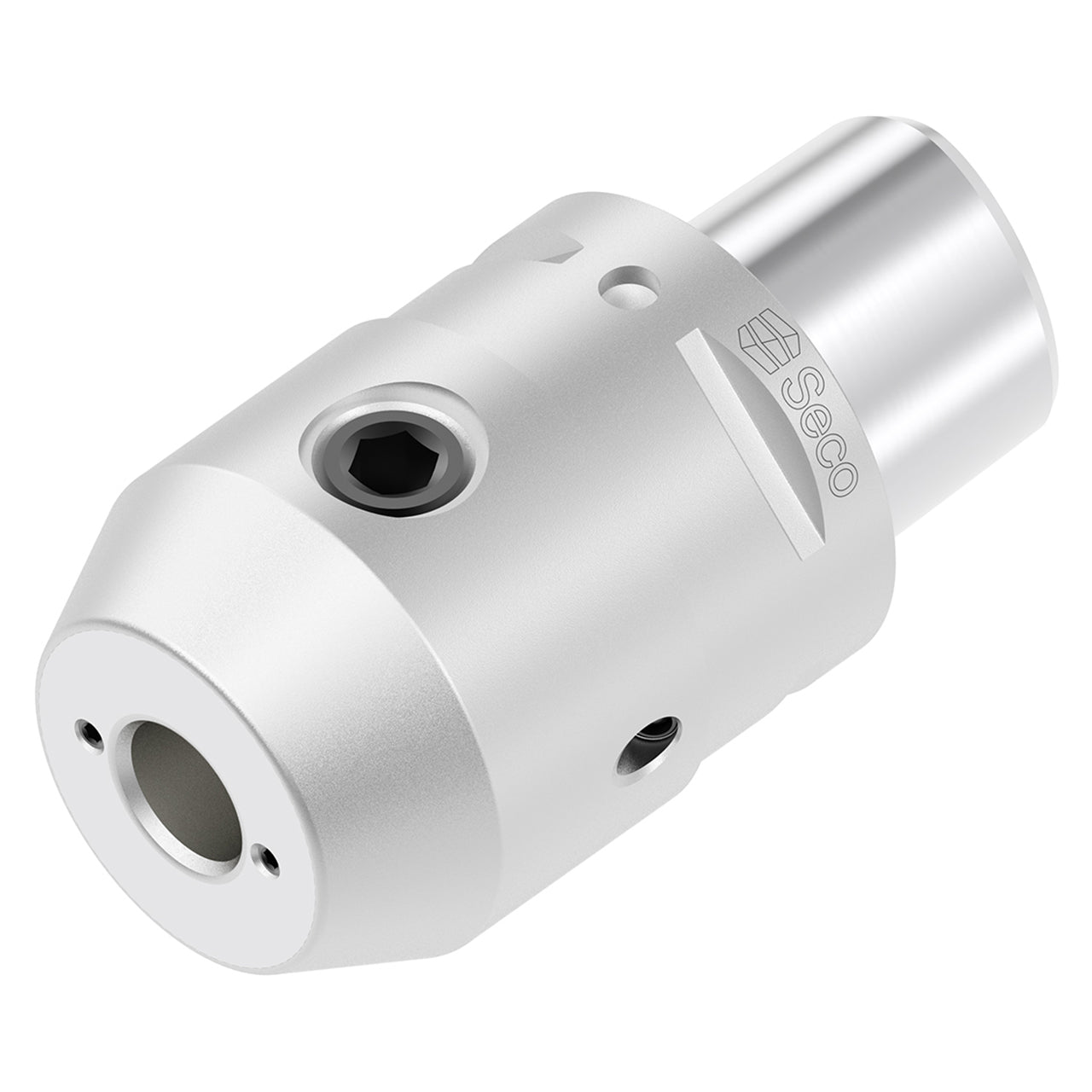

| Product Type | End Mill Holder |
