Product Specifications
| Manufacturer Part Number | 10326372 |
| Shank Width (mm) | 19.00mm |
| Minimum Internal Cutting Diameter (mm) | 24.00mm |
| Minimum Internal Cutting Diameter 2 (mm) | 22.00mm |
| Machine Side Connection Diameter (mm) | 20.00mm |
| Height of Tool Holder Shank (mm) | 18.00mm |
| Functional length (mm) | 180.00mm |
| Head Length (mm) | 45.00mm |
| Functional Width (mm) | 13.00mm |
| Coolant Pressure | 275.00 bar |
| Coolant Supply Property | Yes |
| Version | Internal |
| Shank Type | Cylindrical |
| Insert Clamping System | S |
| Cutting Direction | Right Hand |

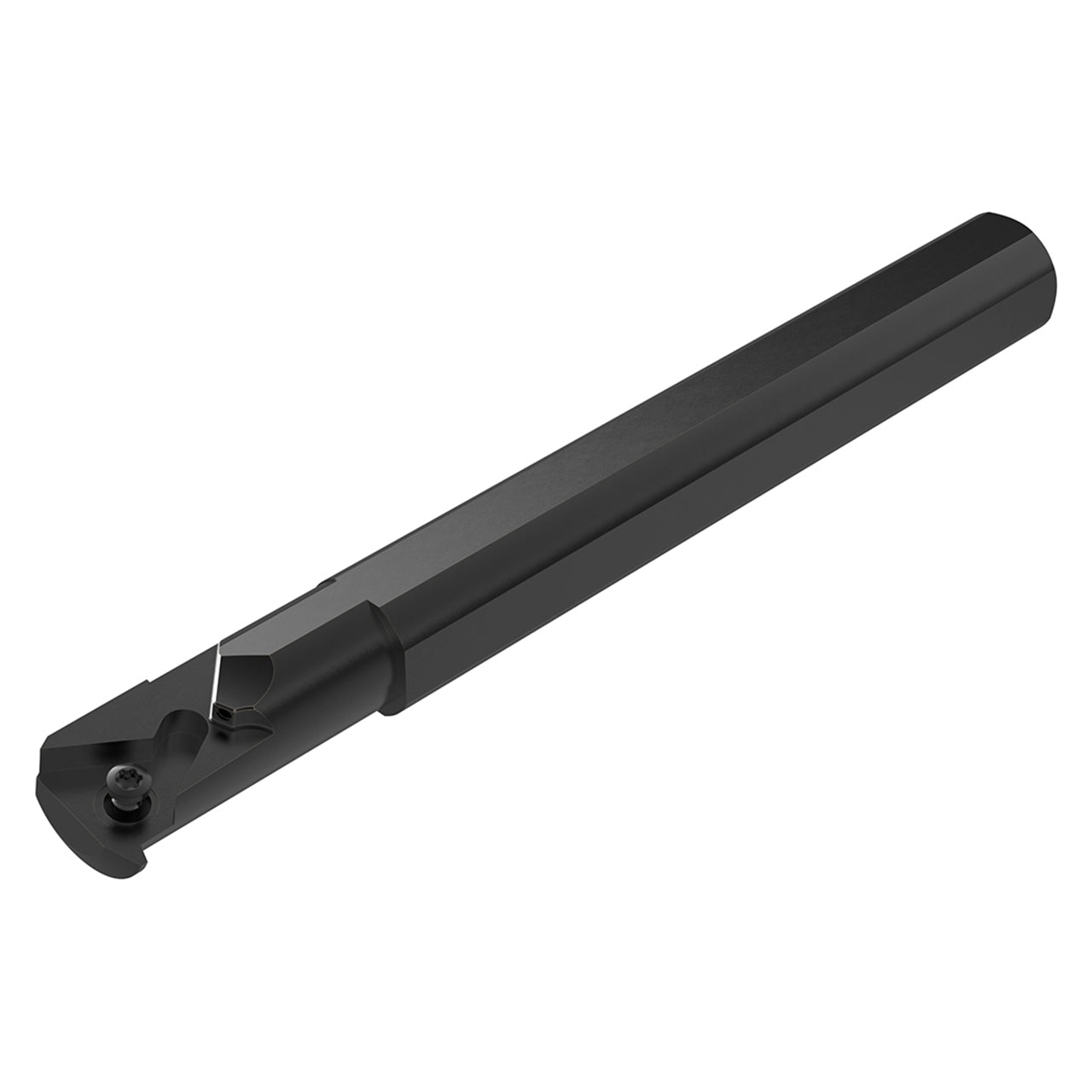

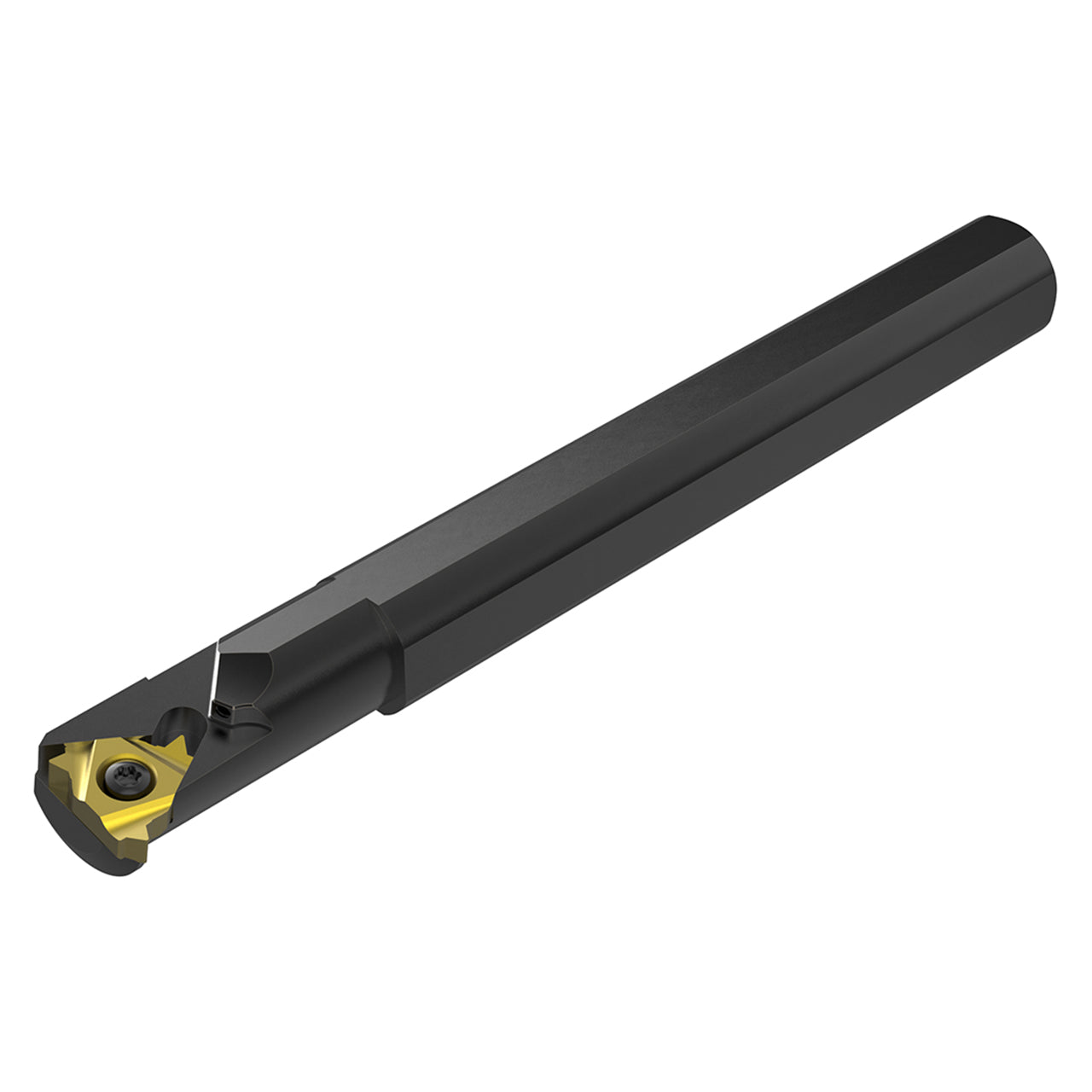

| Product Type | Indexable Threading Toolholder |
