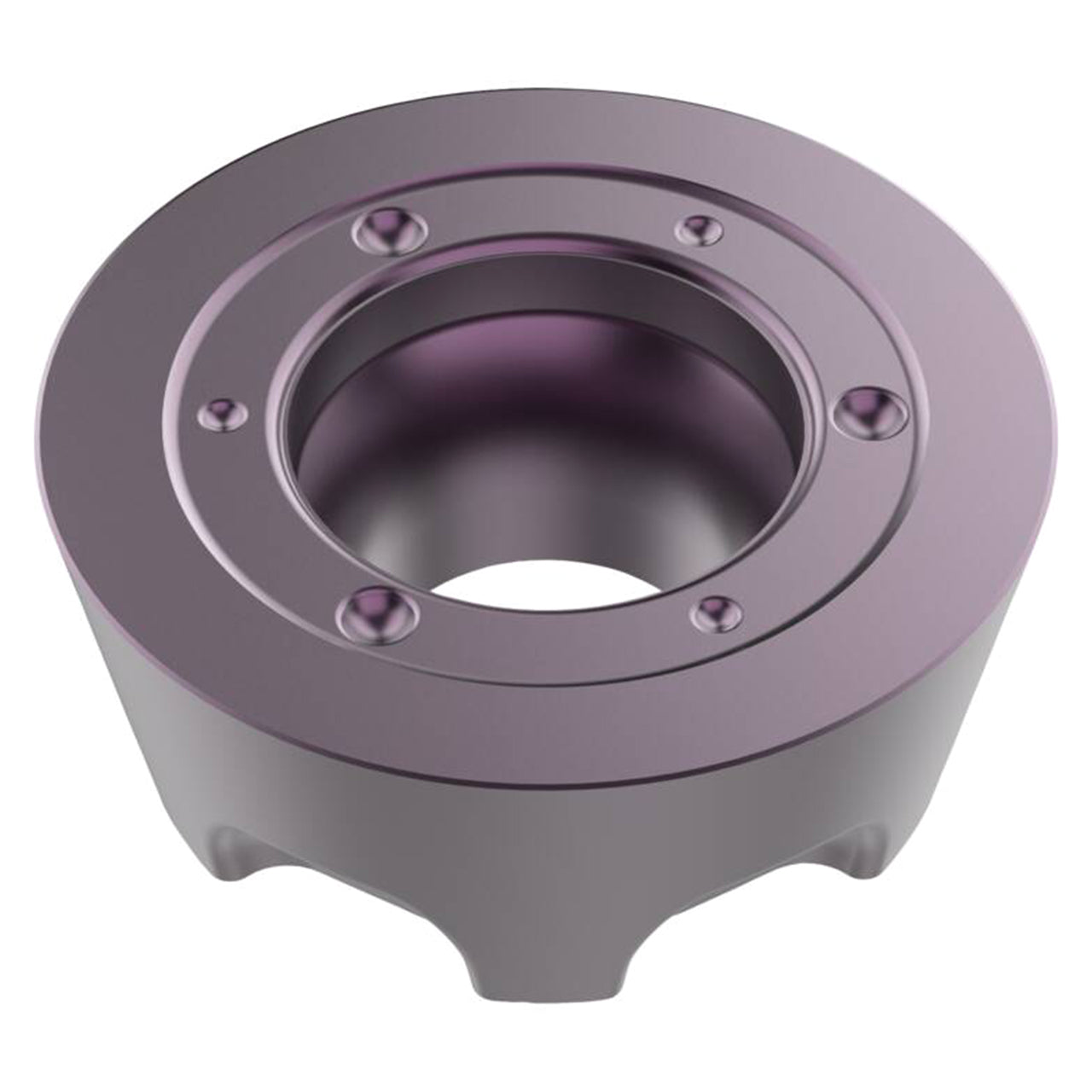

Product Specifications
| Manufacturer Part Number | 10325101 |
| Insert Diameter (Decimal Inch) | 0.472" |
| Corner Radius (Decimal Inch) | 0.236" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Size and Shape | RPKW1204 |
| Cutting Edge Count | 6 |
| Cutting Geometry Type Technical | MD10 |
| Grade | MH1051 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 12 |
| Insert Hand | Neutral |
| Clearance Angle (Degree) | 11 Degree |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
