Product Specifications
| Manufacturer Part Number | 10323075 |

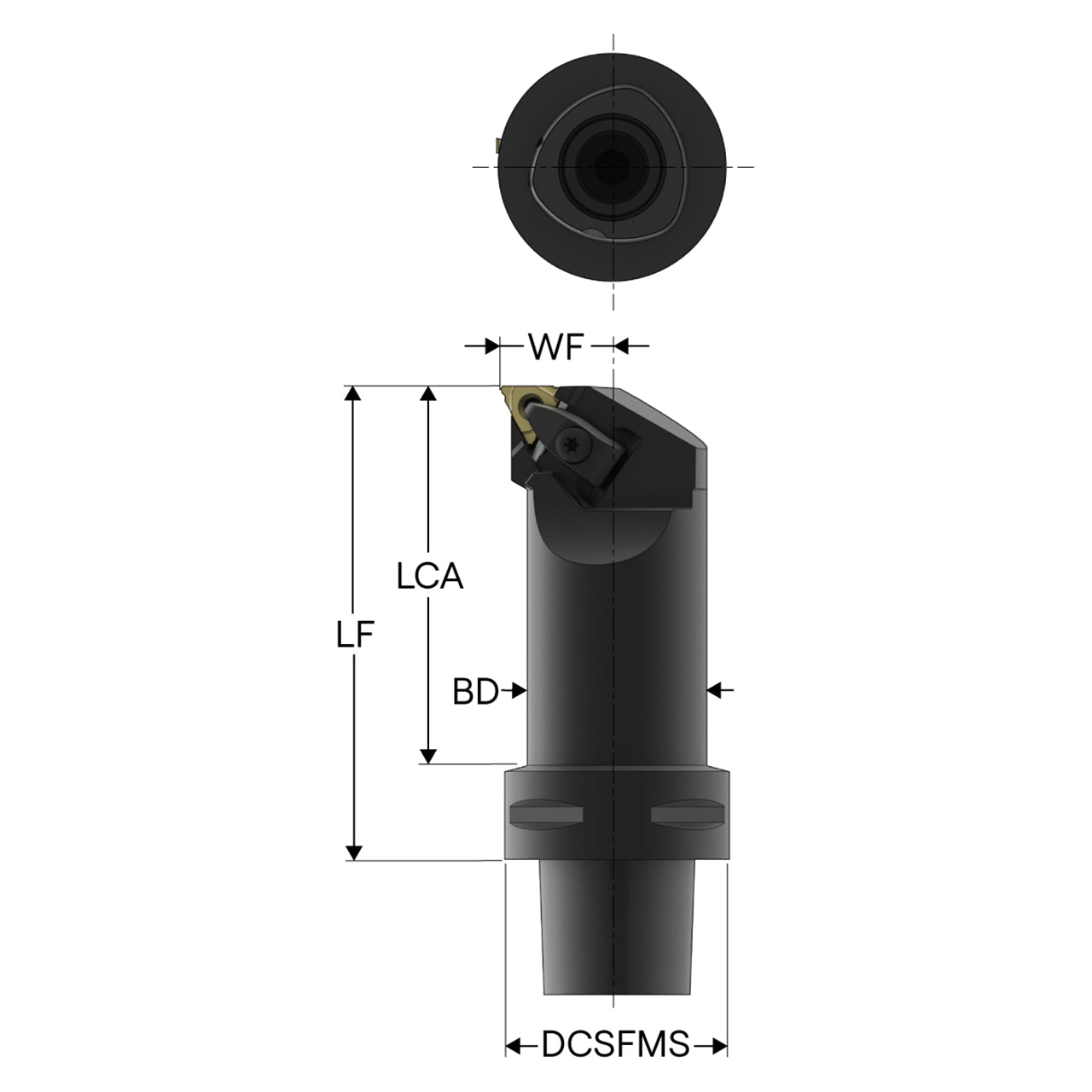

| Nose Diameter (Decimal Inch) | 1.575" |
| Minimum Internal Cutting Diameter (Decimal Inch) | 1.890" |
| Contact Surface Machine Side Diameter (Decimal Inch) | 1.969" |
| Functional length (Decimal Inch) | 4.134" |
| Head Length (Decimal Inch) | 3.307" |
| Usable Length (Decimal Inch) | 3.307" |
| Functional Width (Decimal Inch) | 1.063" |
| Coolant Supply Property | Yes |
| Machine Side Connection Text | C5 |
| Version | Internal |
| Data Chip Pocket | Yes |
| Shank Type | Seco-Capto |
| Insert Seat Size Code | 16 |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |

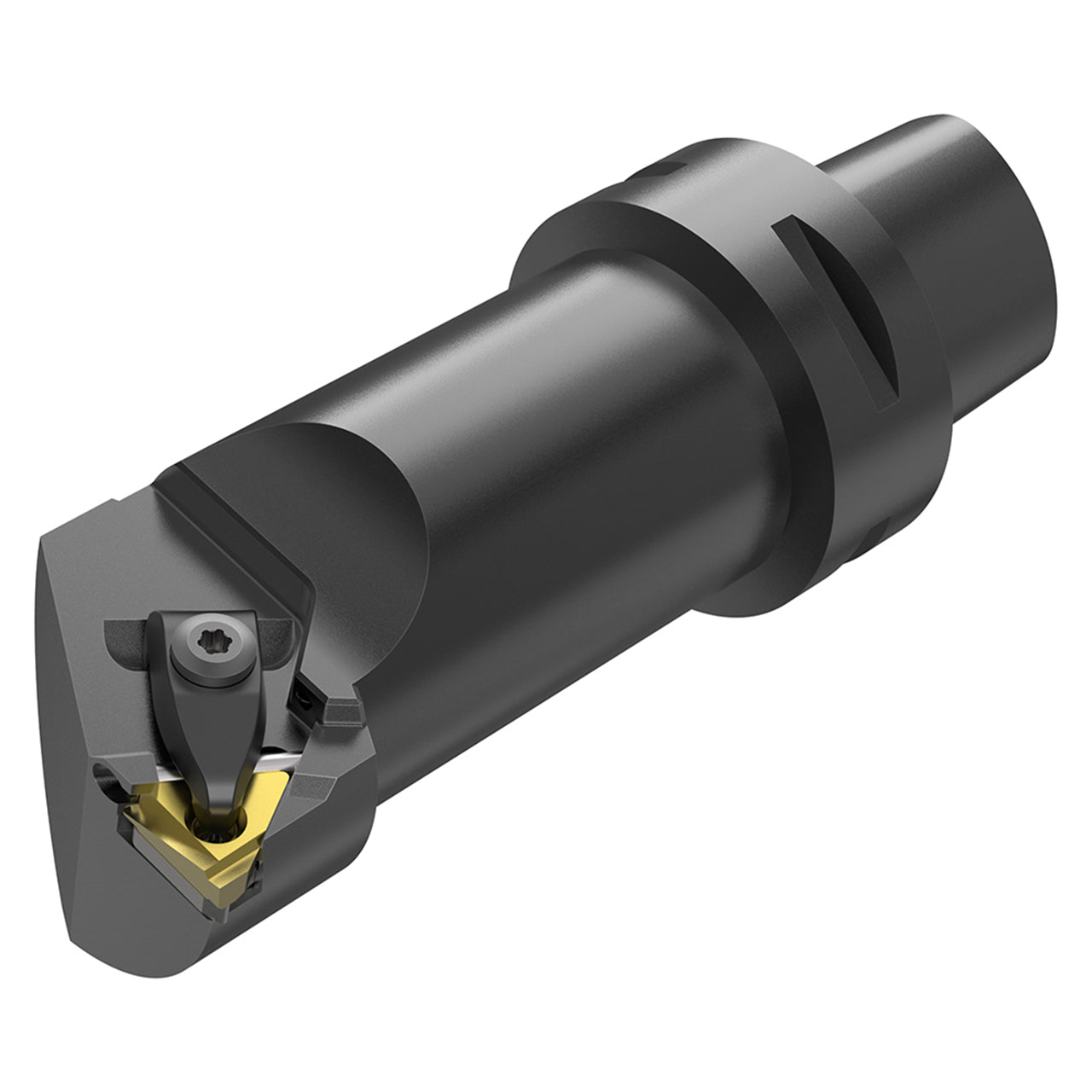

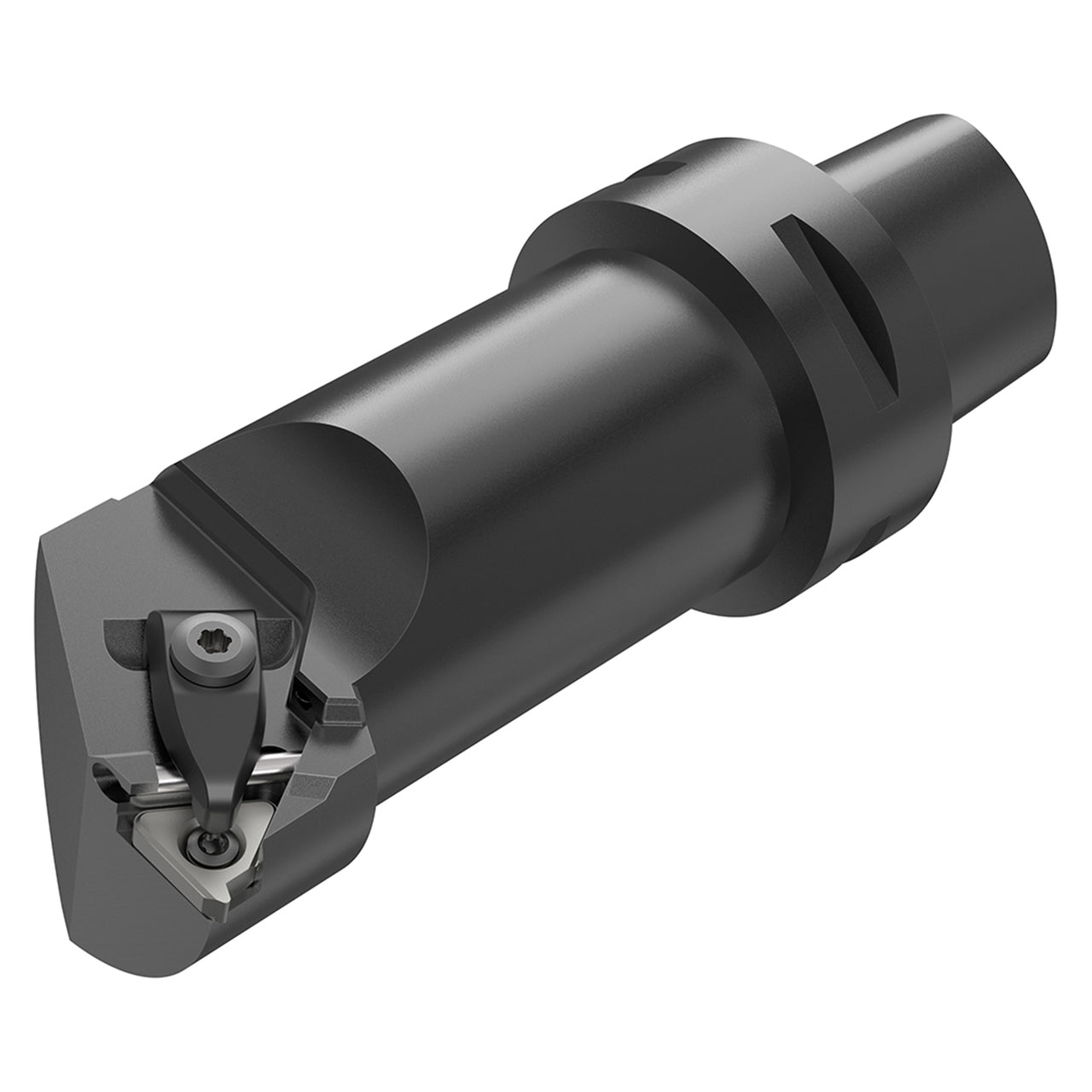

| Product Type | Modular Threading Cutting Unit Head |
