Product Specifications
| Manufacturer Part Number | 10321790 |
| Wiper Edge Length (Decimal Inch) | 0.071" |
| Inscribed Circle Diameter (Decimal Inch) | 0.750" |
| Cutting Edge Length (Decimal Inch) | 0.750" |
| Cutting Edge Effective Length (Decimal Inch) | 0.500" |
| Corner Radius (Decimal Inch) | 0.118" |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Size and Shape | SPER1906EZ.L |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M17 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Hand | Left Hand |
| Clearance Angle (Degree) | 11 Degree |
| Coating | PVD |
| Material | Carbide |

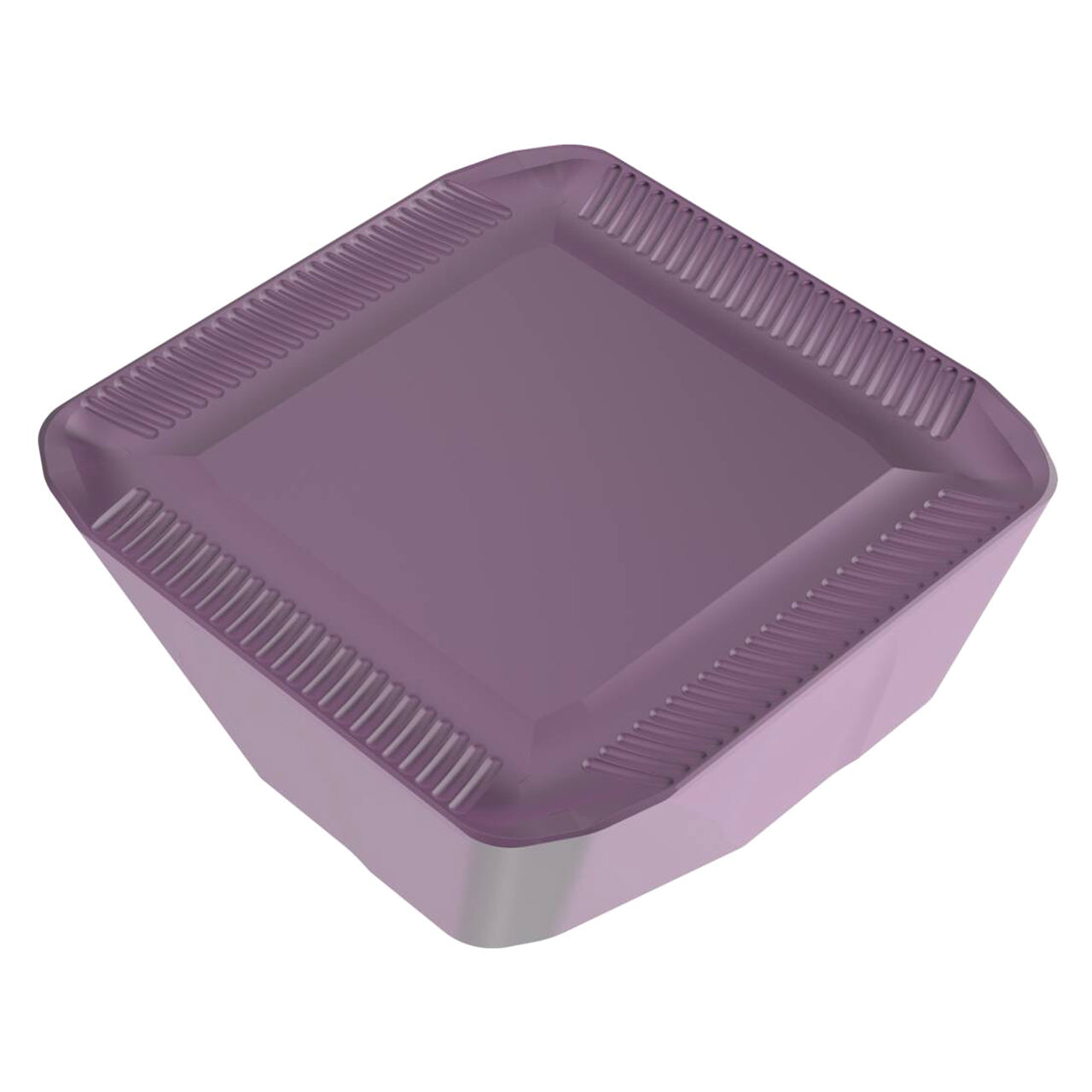

| Product Type | Milling Insert |
