Product Specifications
| Manufacturer Part Number | 10321785 |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Inscribed Circle Diameter (Decimal Inch) | 0.551" |
| Cutting Edge Effective Length (Decimal Inch) | 0.331" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.259" |
| Insert Size and Shape | SNHX1407A |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | ME10 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Hand | Right Hand |
| Coating | PVD |
| Material | Carbide |

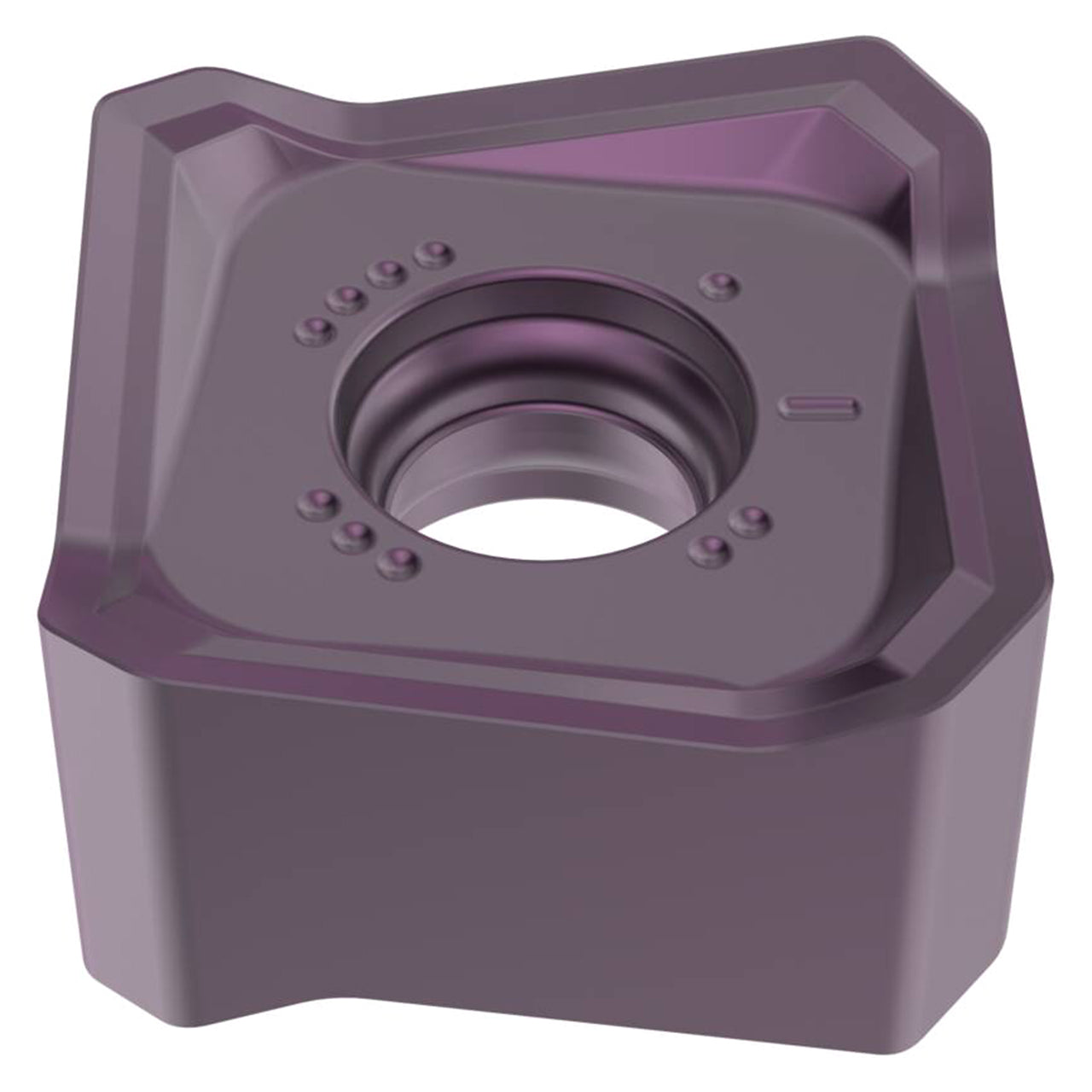

| Product Type | Milling Insert |
