Product Specifications

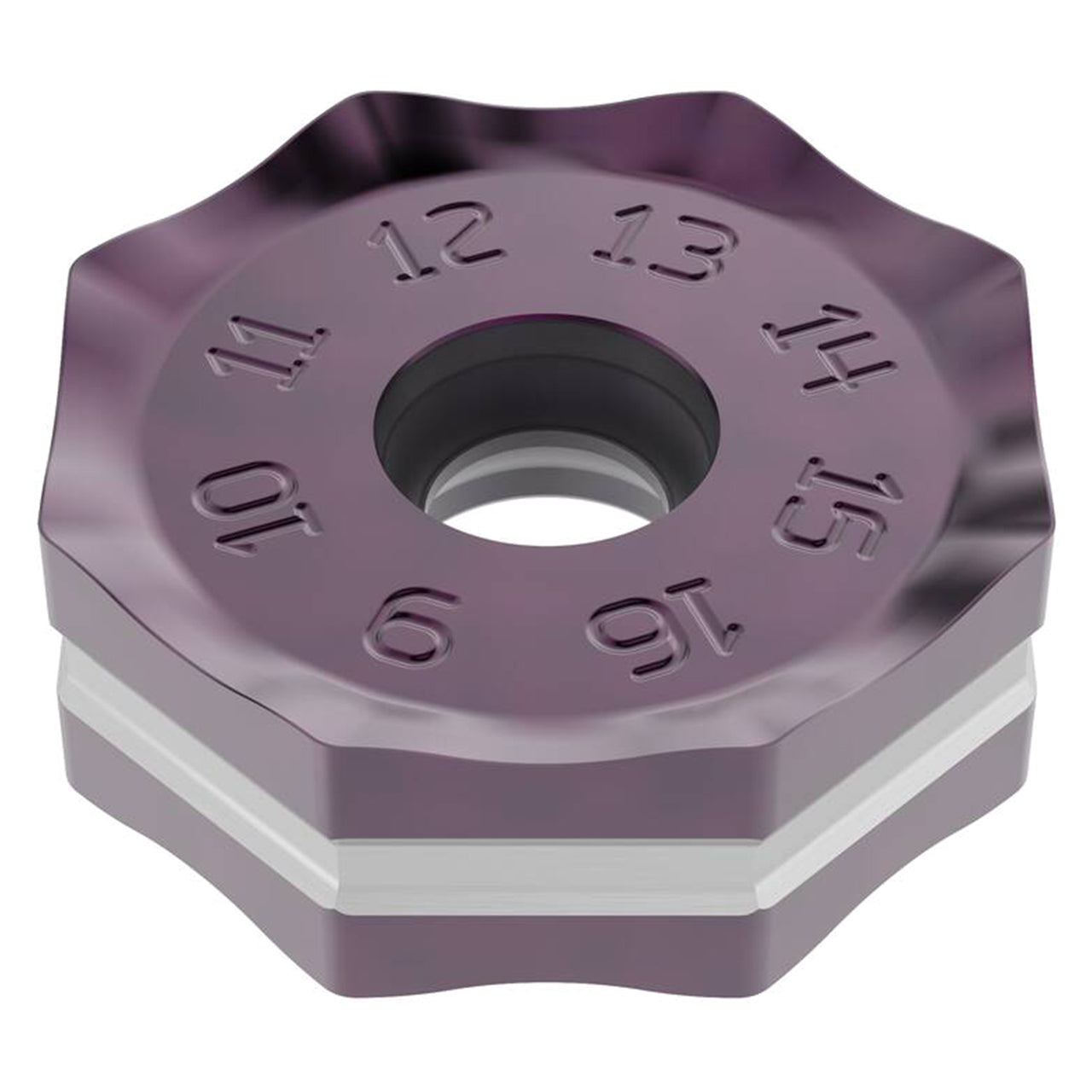

| Manufacturer Part Number | 10321720 |
| Inscribed Circle Diameter (Decimal Inch) | 0.866" |
| Cutting Edge Effective Length (Decimal Inch) | 0.327" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.268" |
| Insert Size and Shape | ONMU0905 |
| Cutting Edge Count | 16 |
| Cutting Geometry Type Technical | M12 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Hand | Neutral |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
