Seco Tools

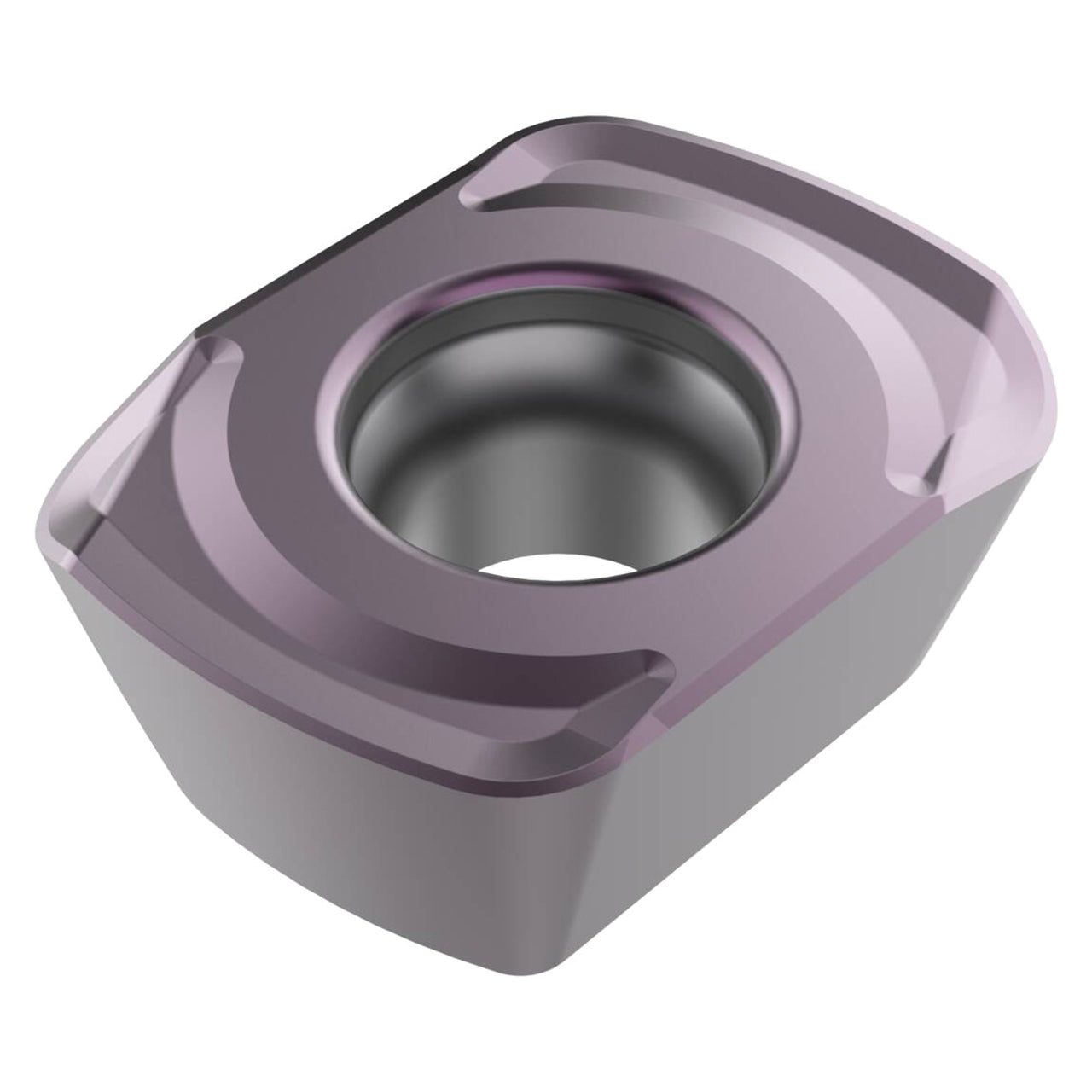

Seco Tools 10321711 | LPKT05T210TR-M05 05 Seat Size x 0.100" Thickness x 0.200" Width x 0.268" Length x 0.039" Radius x 11 Degree Rake Angle 2 Cutting Edge PVD Coated MP2051 Grade Carbide Milling Insert

Seco Tools 10321711 | LPKT05T210TR-M05 05 Seat Size x 0.100" Thickness x 0.200" Width x 0.268" Length x 0.039" Radius x 11 Degree Rake Angle 2 Cutting Edge PVD Coated MP2051 Grade Carbide Milling Insert

SKU: 23462400

$15.35 USD
$15.35 USD $15.35 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Product Specifications
Manufacturer Part Number 10321711
Curved Cutting Edge Radius (Decimal Inch) 0.252"
Insert length (Decimal Inch) 0.268"
Insert Width (Decimal Inch) 0.200"
Corner Radius (Decimal Inch) 0.039"
Insert Thickness (Decimal Inch) 0.100"
Insert Size and Shape LPKT05T2
Cutting Edge Count 2
Cutting Geometry Type Technical M05
Grade MP2051
Grade type Carbide PVD
Insert Seat Size Code 05
Insert Hand Right Hand
Insert Rake Angle (Degree) 11 Degree
Clearance Angle (Degree) 11 Degree
Coating PVD
Material Carbide
Product Type Milling Insert
