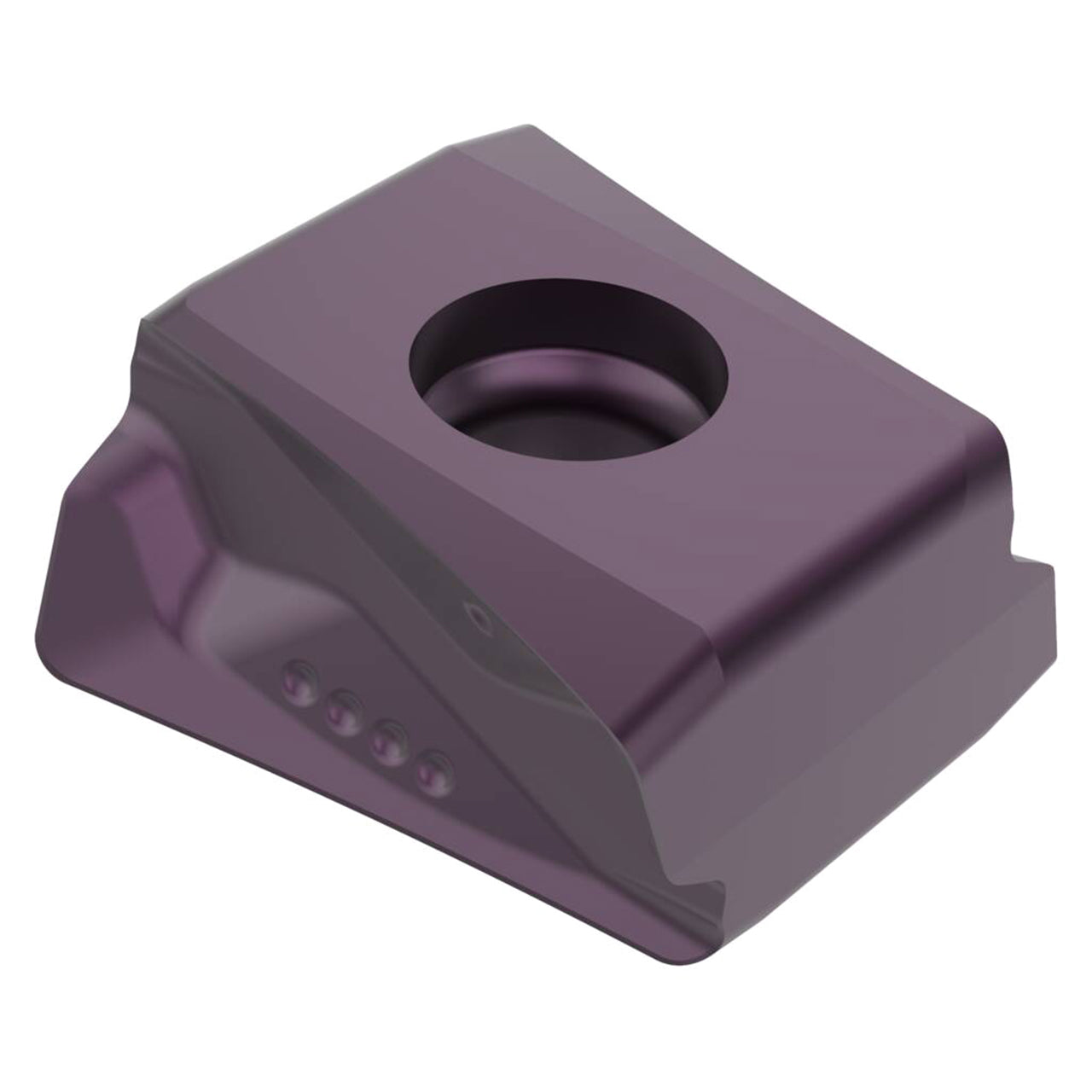

Product Specifications
| Manufacturer Part Number | 10321698 |
| Wiper Edge Length (Decimal Inch) | 0.036" |
| Cutting Edge Length (Decimal Inch) | 0.366" |
| Cutting Edge Effective Length (Decimal Inch) | 0.327" |
| Insert Width (Decimal Inch) | 0.173" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.260" |
| Insert Size and Shape | LOEX0804 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M08 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 08 |
| Insert Hand | Right Hand |
| Insert Rake Angle (Degree) | 34 Degree |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
