Product Specifications
| Manufacturer Part Number | 10318844 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 1.250" |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Neck Diameter (Decimal Inch) | 0.600" |
| Neck Length (Decimal Inch) | 2.031" |
| Overall Length (Decimal Inch) | 3.750" |
| Corner Radius (Decimal Inch) | 0.090" |
| Coolant Supply Property | Yes |
| Series | HP4931 |
| Number of Flutes | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Shank Type | Cylindrical |
| Reconditionable | Yes |
| Center Cutting | Yes |
| Helix Angle (Degree) | 37.50 Degree |
| Coating | AXT |

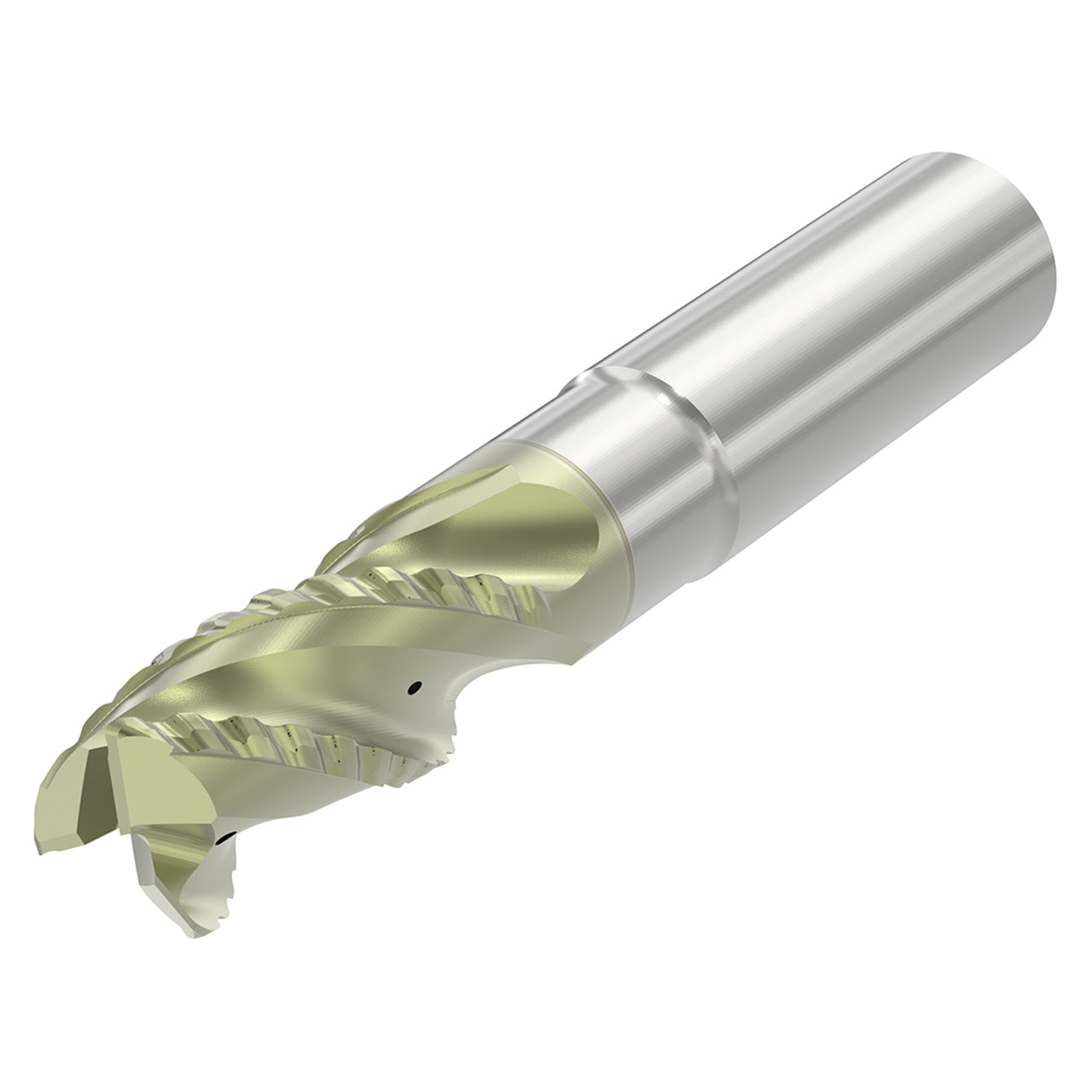

| Product Type | Corner Radius End Mill |
