Product Specifications
| Manufacturer Part Number | 10317556 |
| Shank Width (Decimal Inch) | 0.578" |
| Minimum Internal Cutting Diameter (Decimal Inch) | 0.600" |
| Minimum Internal Cutting Diameter 2 (Decimal Inch) | 0.500" |
| Machine Side Connection Diameter (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (Decimal Inch) | 0.532" |
| Functional length (Decimal Inch) | 5.520" |
| Head Length (Decimal Inch) | 1.252" |
| Functional Width (Decimal Inch) | 0.315" |
| Coolant Pressure | 275.00 bar |
| Coolant Supply Property | Yes |
| Version | Internal |
| Shank Type | Cylindrical |
| Insert Clamping System | S |
| Cutting Direction | Right Hand |

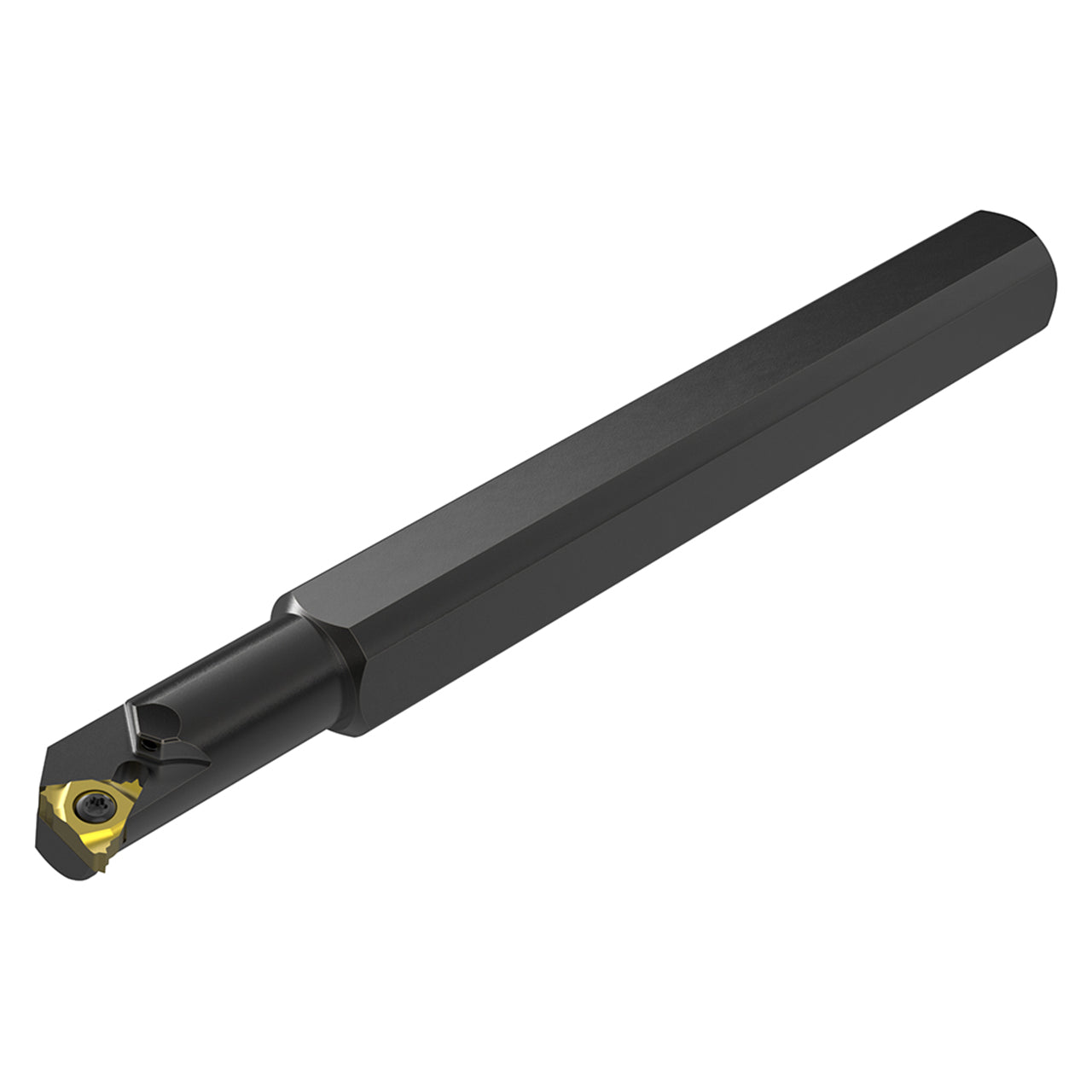

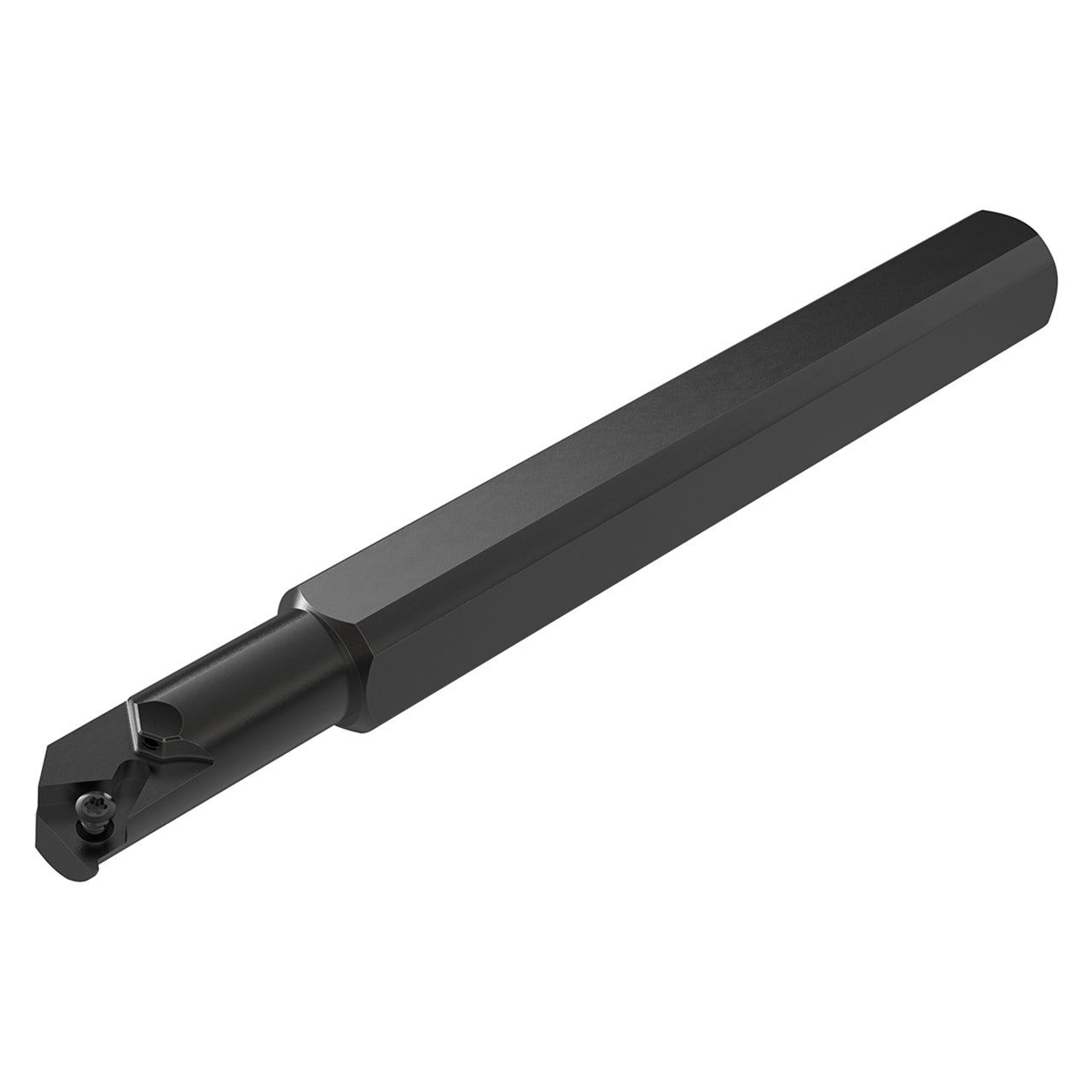

| Product Type | Indexable Threading Toolholder |
