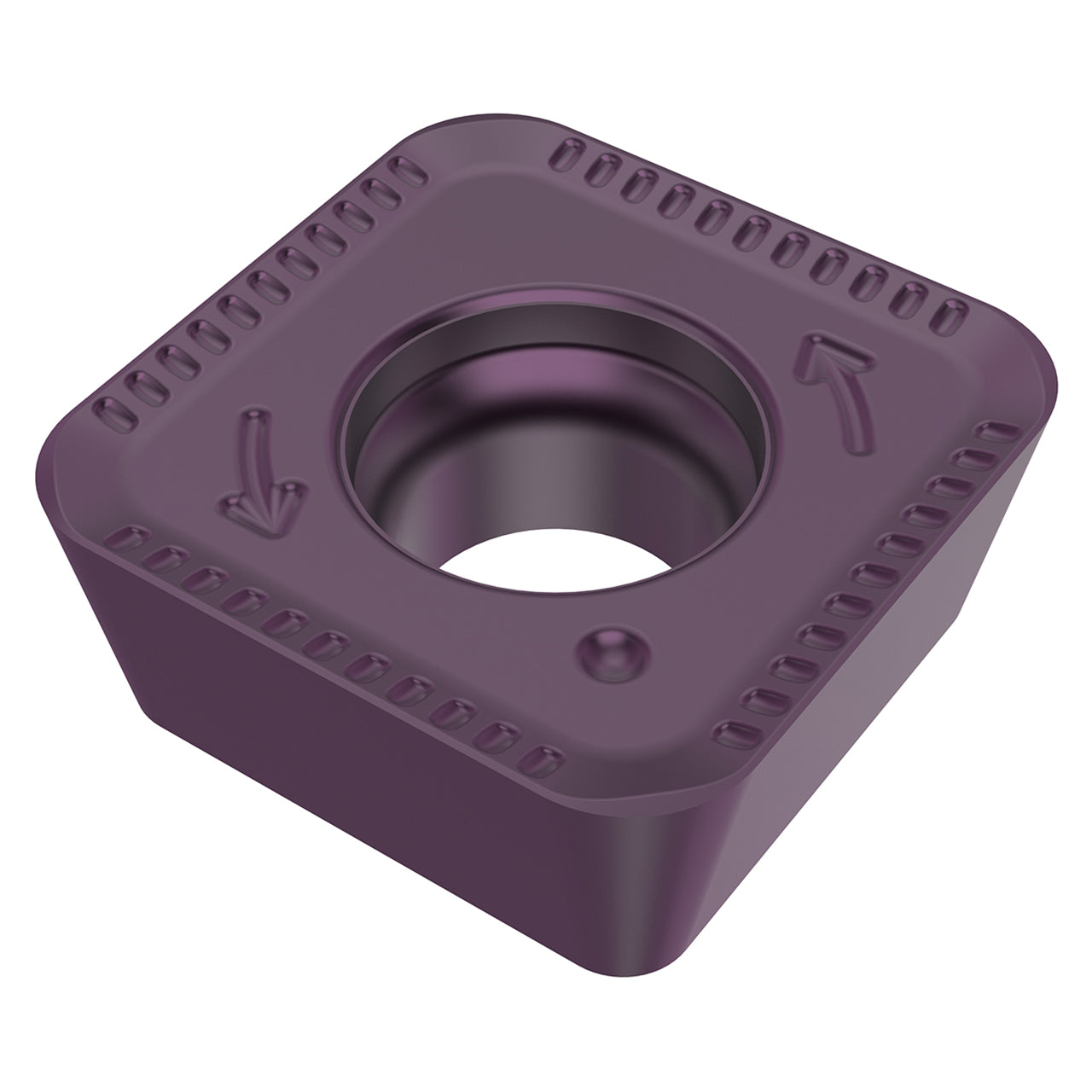

Product Specifications
| Manufacturer Part Number | 10315879 |
| Inscribed Circle Diameter (Decimal Inch) | 0.551" |
| Cutting Edge Length (Decimal Inch) | 0.551" |
| Corner Radius (Decimal Inch) | 0.091" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Size and Shape | SPKT140523 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | ME10 |
| Grade | MP2050 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 14 |
| Insert Hand | Neutral |
| Insert Rake Angle (Degree) | 15 Degree |
| Clearance Angle (Degree) | 11 Degree |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
