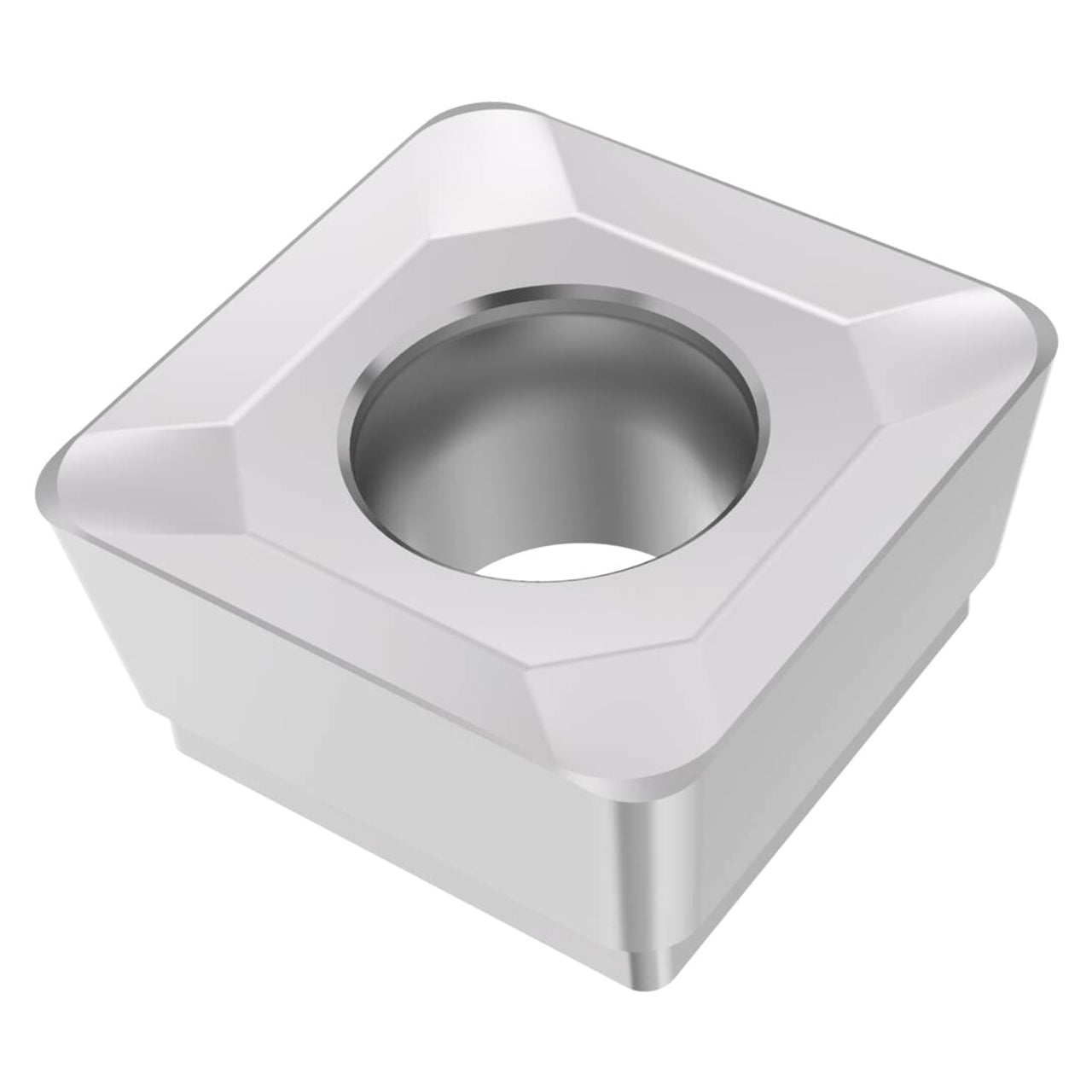

Product Specifications
| Manufacturer Part Number | 10313486 |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Cutting Edge Length (Decimal Inch) | 0.500" |
| Cutting Edge Effective Length (Decimal Inch) | 0.453" |
| Corner Radius (Decimal Inch) | 0.047" |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Size and Shape | SCET1206 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M14 |
| Grade | MK1501 |
| Grade type | Carbide CVD |
| Insert Seat Size Code | 12 |
| Insert Hand | Neutral |
| Insert Rake Angle (Degree) | 15 Degree |
| Clearance Angle (Degree) | 7 Degree |
| Coating | CVD |
| Material | Carbide |
| Product Type | Milling Insert |
