Product Specifications
| Manufacturer Part Number | 10313051 |
| Wiper Edge Length (Decimal Inch) | 0.051" |
| Cutting Edge Effective Length (Decimal Inch) | 0.366" |
| Insert Width (Decimal Inch) | 0.272" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.151" |
| Insert Size and Shape | XOMX10T3 |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M09 |
| Grade | MK1501 |
| Grade type | Carbide CVD |
| Insert Seat Size Code | 10 |
| Insert Hand | Right Hand |
| Insert Rake Angle (Degree) | 10.60 Degree |
| Clearance Angle (Degree) | 15 Degree |
| Coating | CVD |
| Material | Carbide |

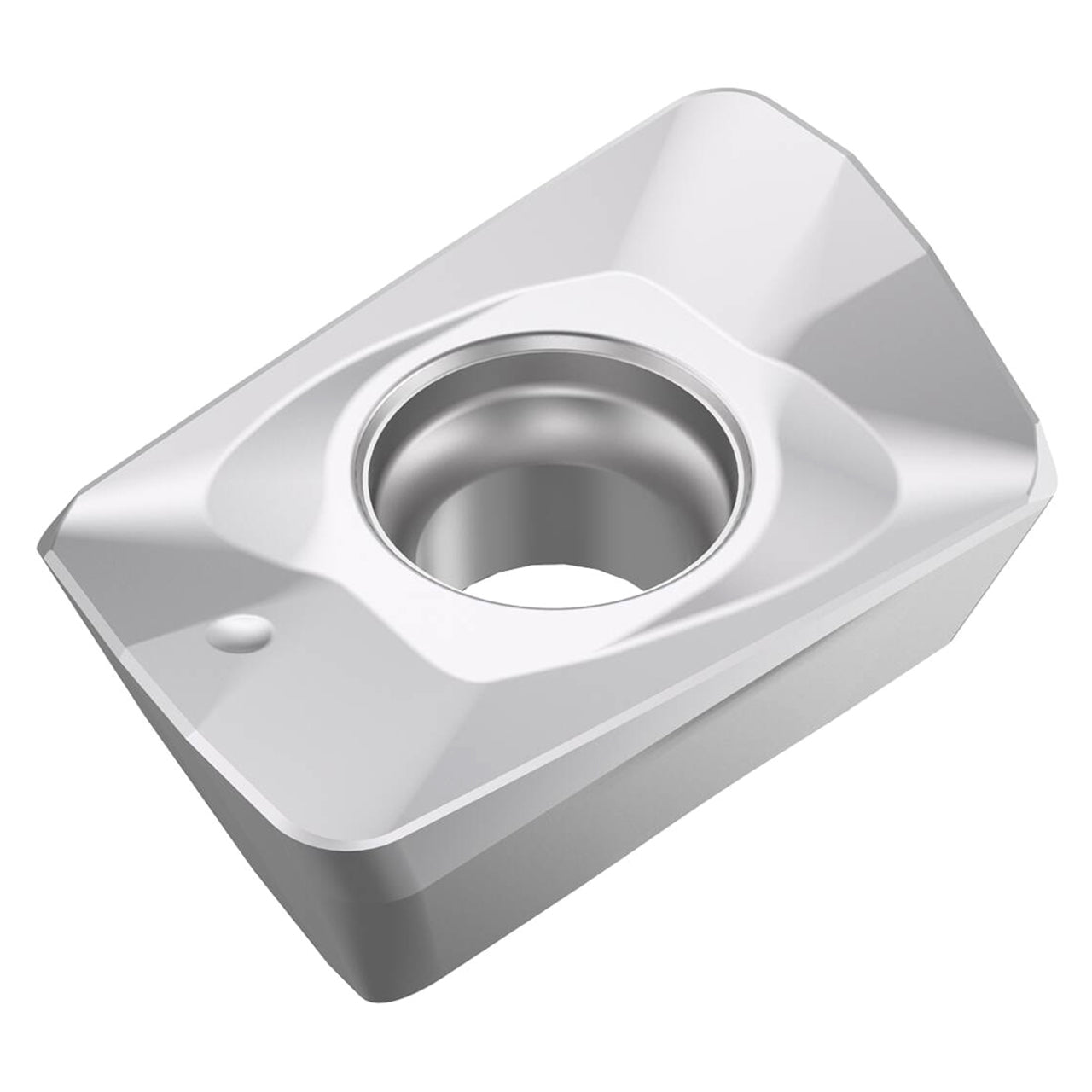

| Product Type | Milling Insert |
