Seco Tools

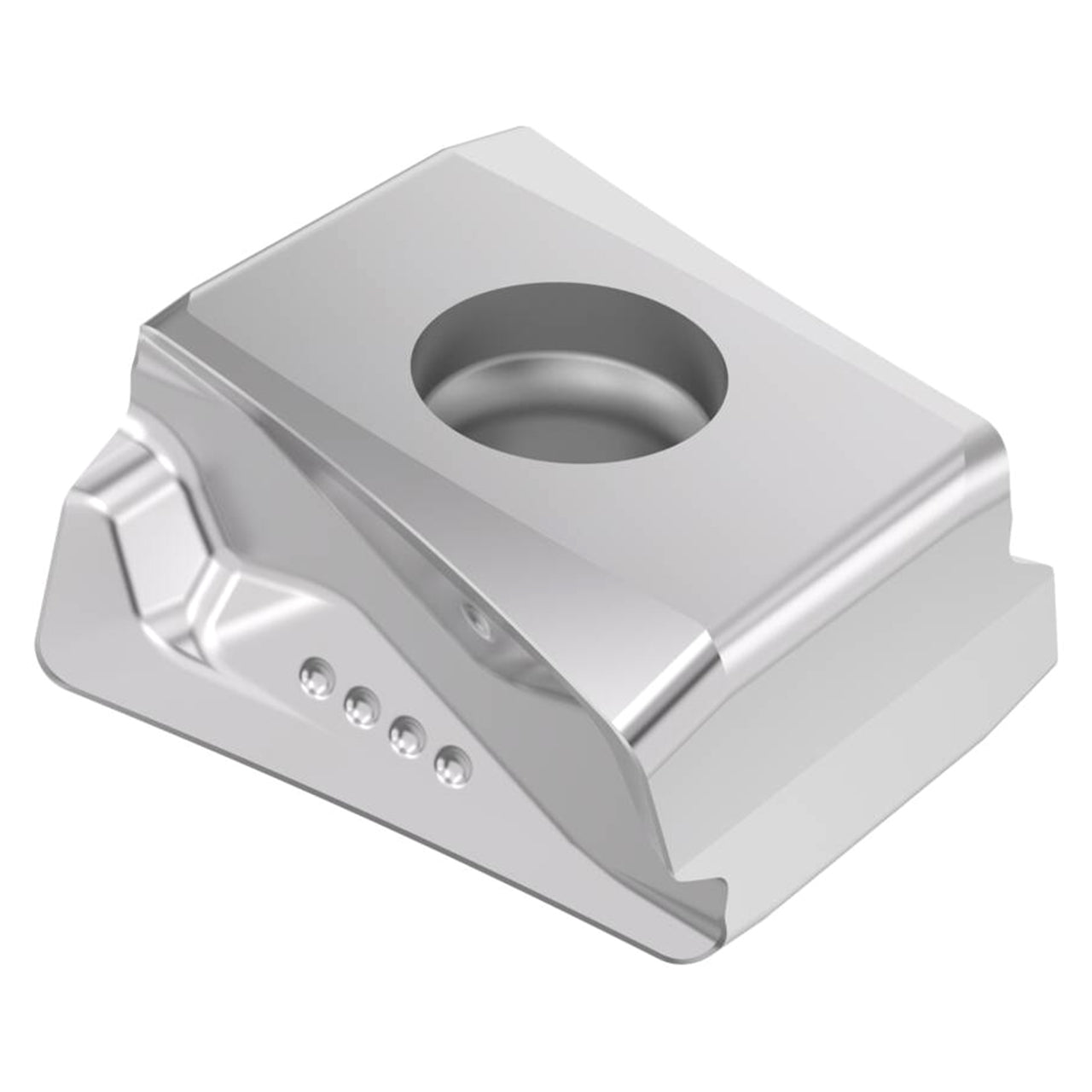

Seco Tools 10313046 | LOEX120708TR-T4-MD13 12 Seat Size x 0.295" Width x 0.404" Thickness x 0.032" Radius x 30 Degree Rake Angle 4 Cutting Edge CVD Coated MK1501 Grade Carbide Milling Insert

Seco Tools 10313046 | LOEX120708TR-T4-MD13 12 Seat Size x 0.295" Width x 0.404" Thickness x 0.032" Radius x 30 Degree Rake Angle 4 Cutting Edge CVD Coated MK1501 Grade Carbide Milling Insert

SKU: 23462360

$39.32 USD
$47.90 USD $39.32 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Product Specifications
Manufacturer Part Number 10313046
Wiper Edge Length (Decimal Inch) 0.097"
Cutting Edge Length (Decimal Inch) 0.559"
Cutting Edge Effective Length (Decimal Inch) 0.472"
Insert Width (Decimal Inch) 0.295"
Corner Radius (Decimal Inch) 0.032"
Insert Thickness (Decimal Inch) 0.404"
Insert Size and Shape LOEX1207
Cutting Edge Count 4
Cutting Geometry Type Technical MD13
Grade MK1501
Grade type Carbide CVD
Insert Seat Size Code 12
Insert Hand Right Hand
Insert Rake Angle (Degree) 30 Degree
Coating CVD
Material Carbide
Product Type Milling Insert
