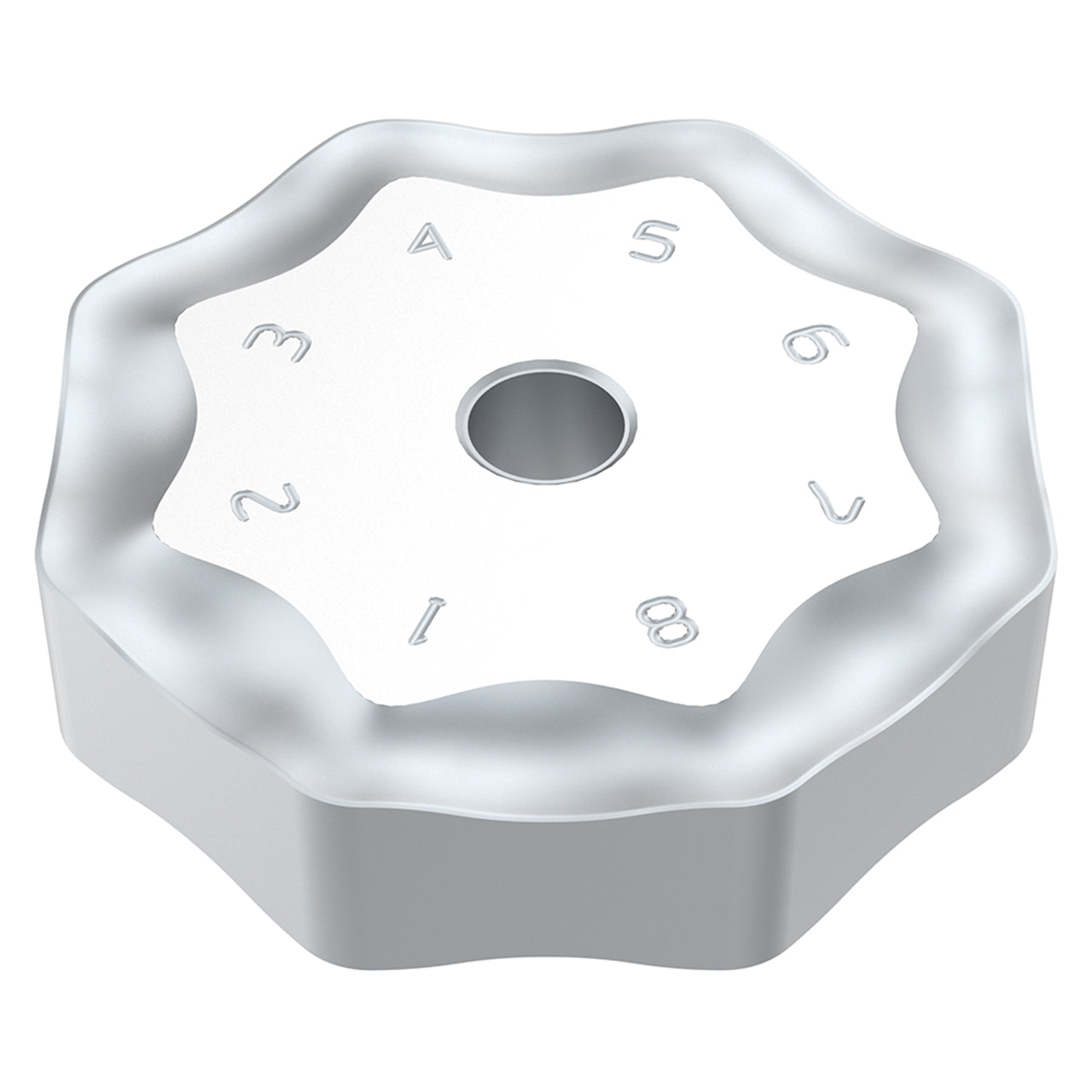

Product Specifications
| Manufacturer Part Number | 10312589 |
| Wiper Edge Length (Decimal Inch) | 0.018" |
| Inscribed Circle Diameter (Decimal Inch) | 0.866" |
| Cutting Edge Effective Length (Decimal Inch) | 0.287" |
| Corner Radius (Decimal Inch) | 0.079" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Size and Shape | ONMF0905 |
| Cutting Edge Count | 16 |
| Cutting Geometry Type Technical | M14 |
| Grade | MK1501 |
| Grade type | Carbide CVD |
| Insert Hand | Neutral |
| Coating | CVD |
| Material | Carbide |
| Product Type | Milling Insert |
