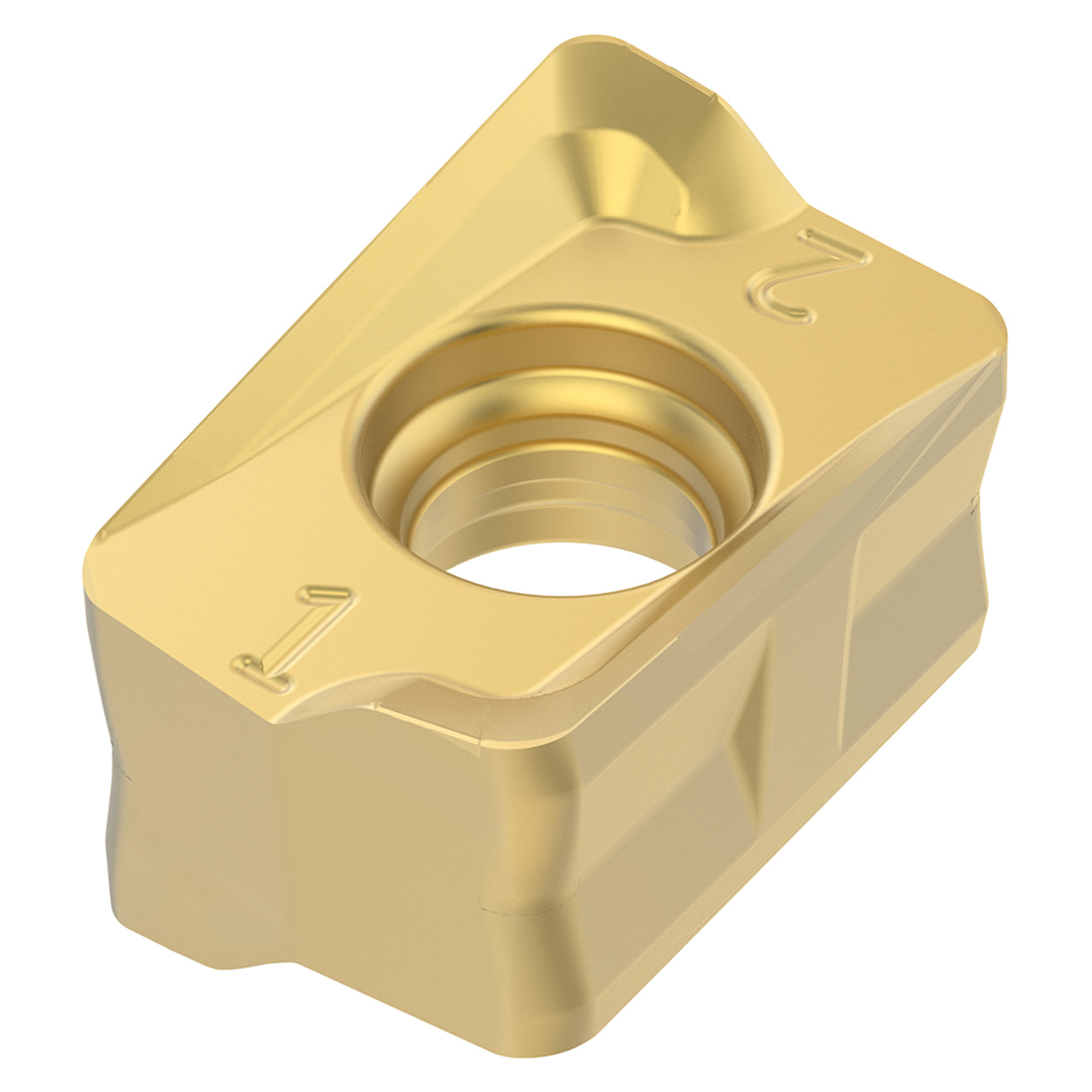

Product Specifications
| Manufacturer Part Number | 10310521 |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Cutting Edge Effective Length (Decimal Inch) | 0.425" |
| Insert Width (Decimal Inch) | 0.312" |
| Corner Radius (Decimal Inch) | 0.032" |
| Insert Thickness (Decimal Inch) | 0.245" |
| Insert Size and Shape | ZOMX1107 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M12 |
| Grade | F40M |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 11 |
| Insert Hand | Right Hand |
| Insert Rake Angle (Degree) | 24 Degree |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
