Product Specifications
| Manufacturer Part Number | 10310382 |
| Maximum Depth of cut in Feed Direction End (Deicmal Inch) | 0.134" |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.394" |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.795" |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.965" |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Contact Surface Machine Side Diameter (Decimal Inch) | 0.906" |
| Functional length (Decimal Inch) | 1.575" |
| Wrench Size (Decimal Inch) | 0.748" |
| Thread Diameter Size | M12 |
| Maximum Rotational Speed (RPM) | 17200 RPM |
| Connection Mounting Torque (Nm) | 60.00 Nm |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Close |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 3 |
| Shank Type | Combimaster |
| Rake Radial Angle (Degree) | -21 Degree |
| Rake Axial Angle (Degree) | -4 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 1.20 Degree |

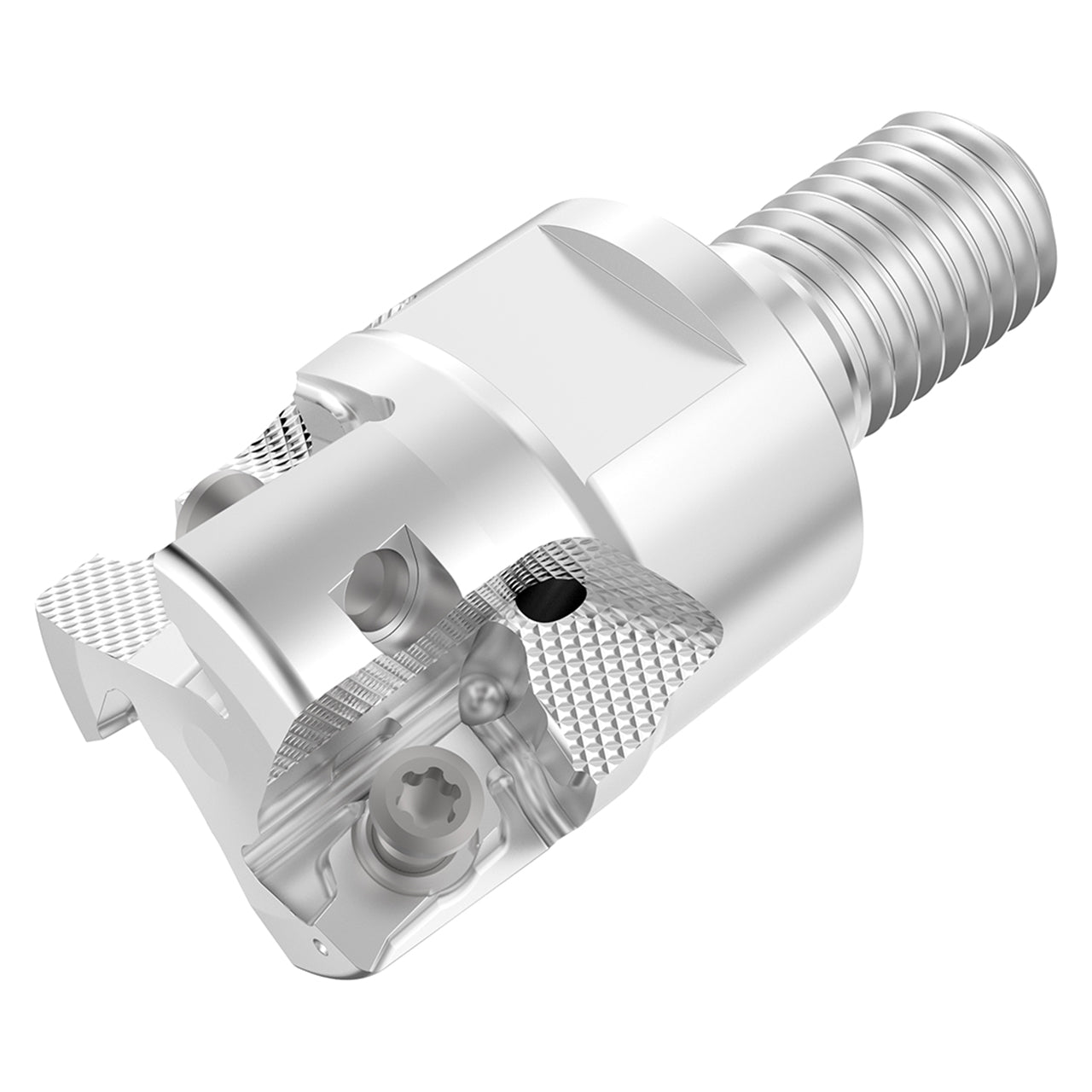

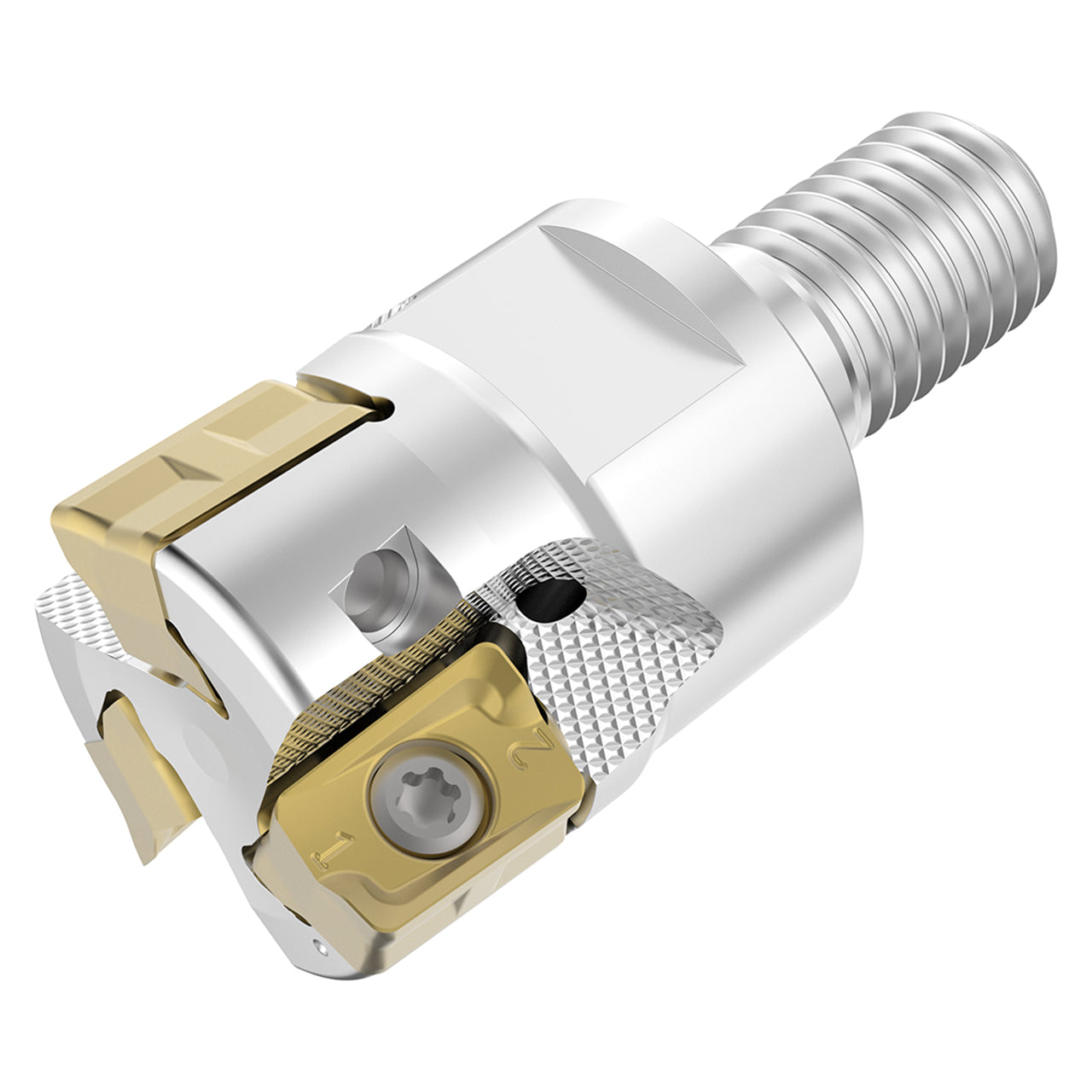

| Product Type | Indexable Square-Shoulder End Mill |
