Product Specifications
| Manufacturer Part Number | 10310381 |
| Maximum Depth of cut in Feed Direction End (Deicmal Inch) | 0.134" |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.394" |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.256" |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.465" |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Machine Side Connection Diameter (Decimal Inch) | 1.250" |
| Protruding Length (Decimal Inch) | 4.331" |
| Shank Length (Decimal Inch) | 5.118" |
| Maximum Usable Length (Decimal Inch) | 1.575" |
| Overall Length (Decimal Inch) | 6.693" |
| Maximum Rotational Speed (RPM) | 15200 RPM |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Close |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 4 |
| Shank Type | Cylindrical |
| Rake Radial Angle (Degree) | -18 Degree |
| Rake Axial Angle (Degree) | -4 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.80 Degree |

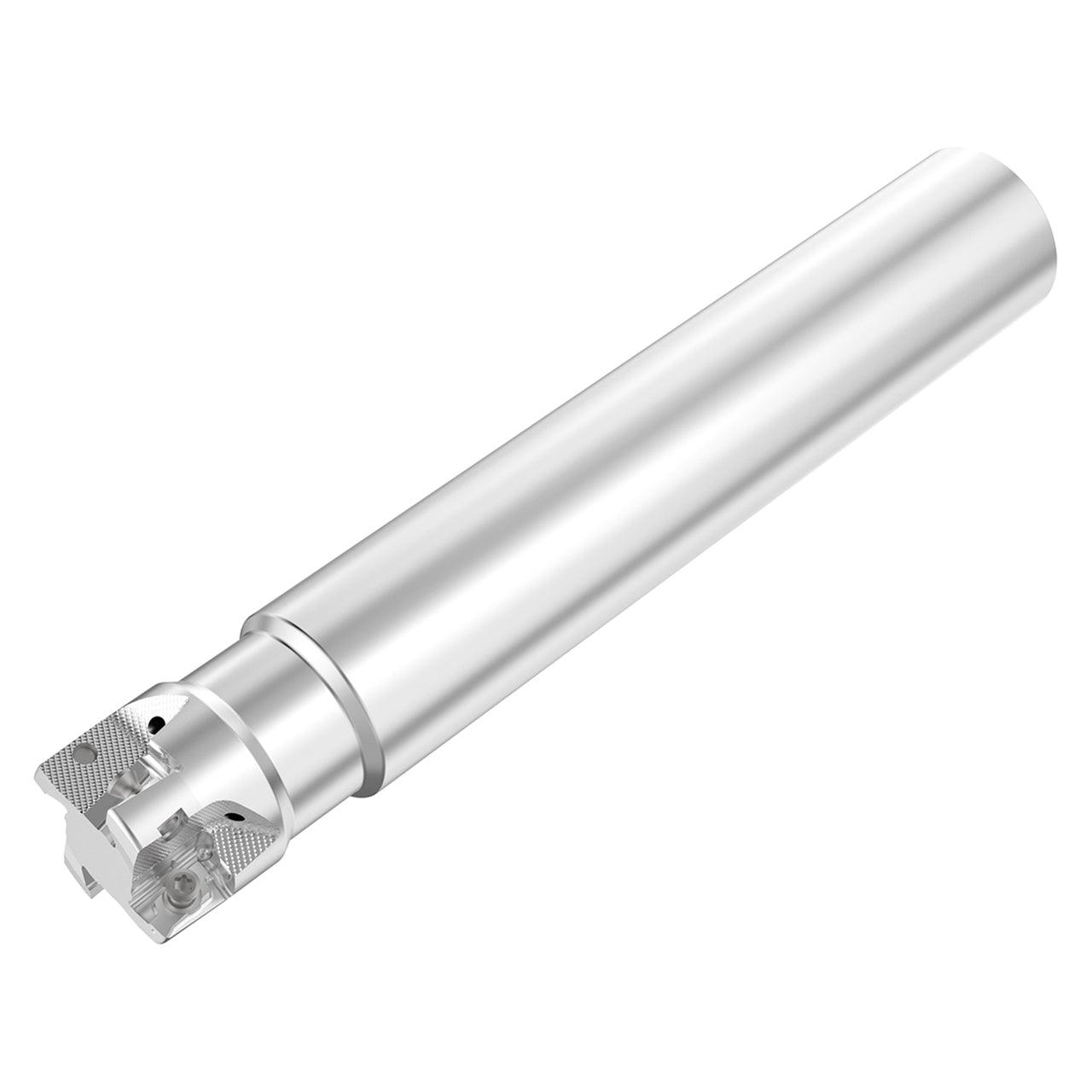

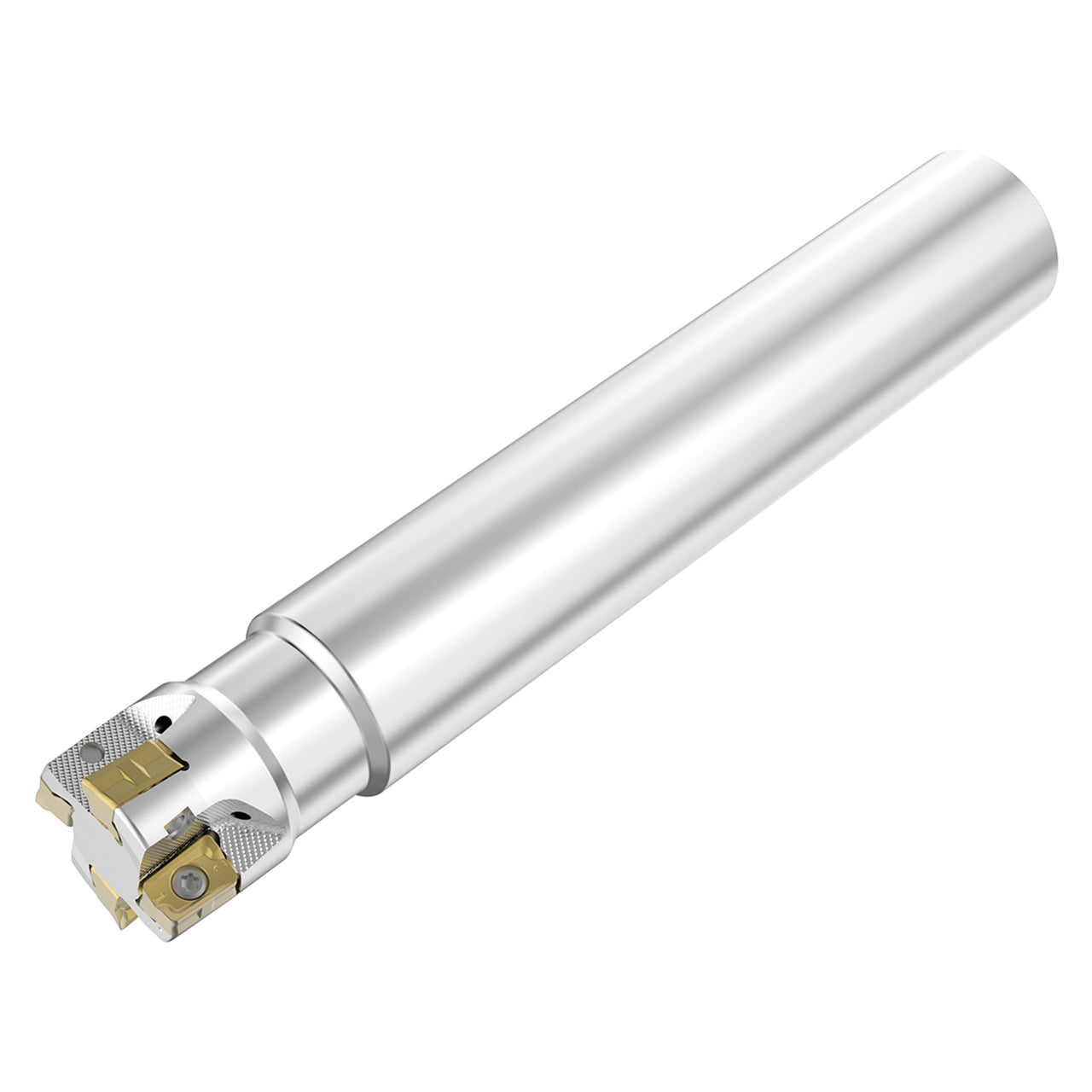

| Product Type | Indexable Square-Shoulder End Mill |
