Product Specifications
| Manufacturer Part Number | 10310370 |
| Maximum Depth of cut in Feed Direction End (Deicmal Inch) | 0.134" |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.394" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.756" |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.965" |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Contact Surface Machine Side Diameter (Decimal Inch) | 1.378" |
| Keyway Width (Decimal Inch) | 0.323" |
| Functional length (Decimal Inch) | 1.575" |
| Maximum Rotational Speed (RPM) | 14000 RPM |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Close |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 5 |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -16 Degree |
| Rake Axial Angle (Degree) | -3 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.55 Degree |

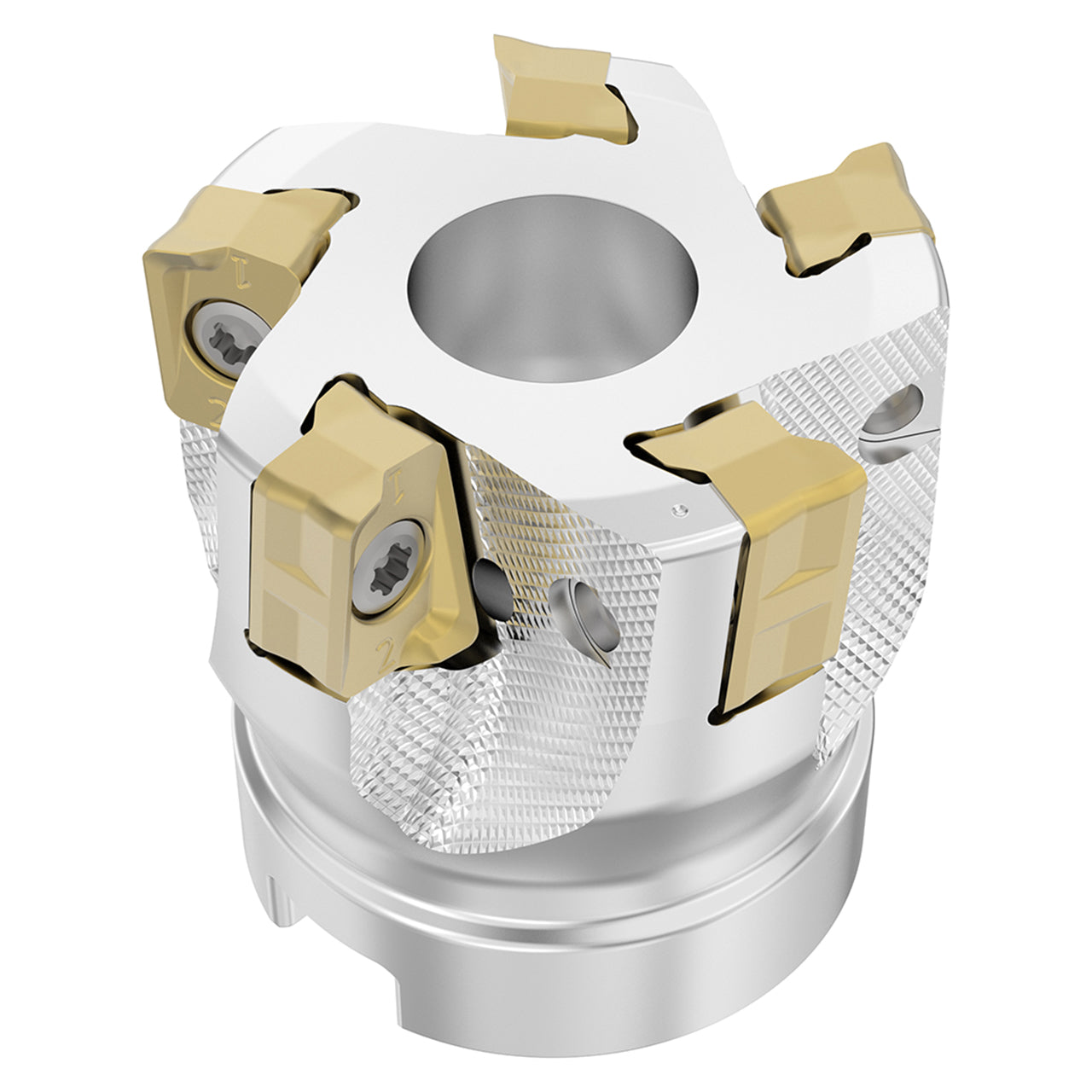

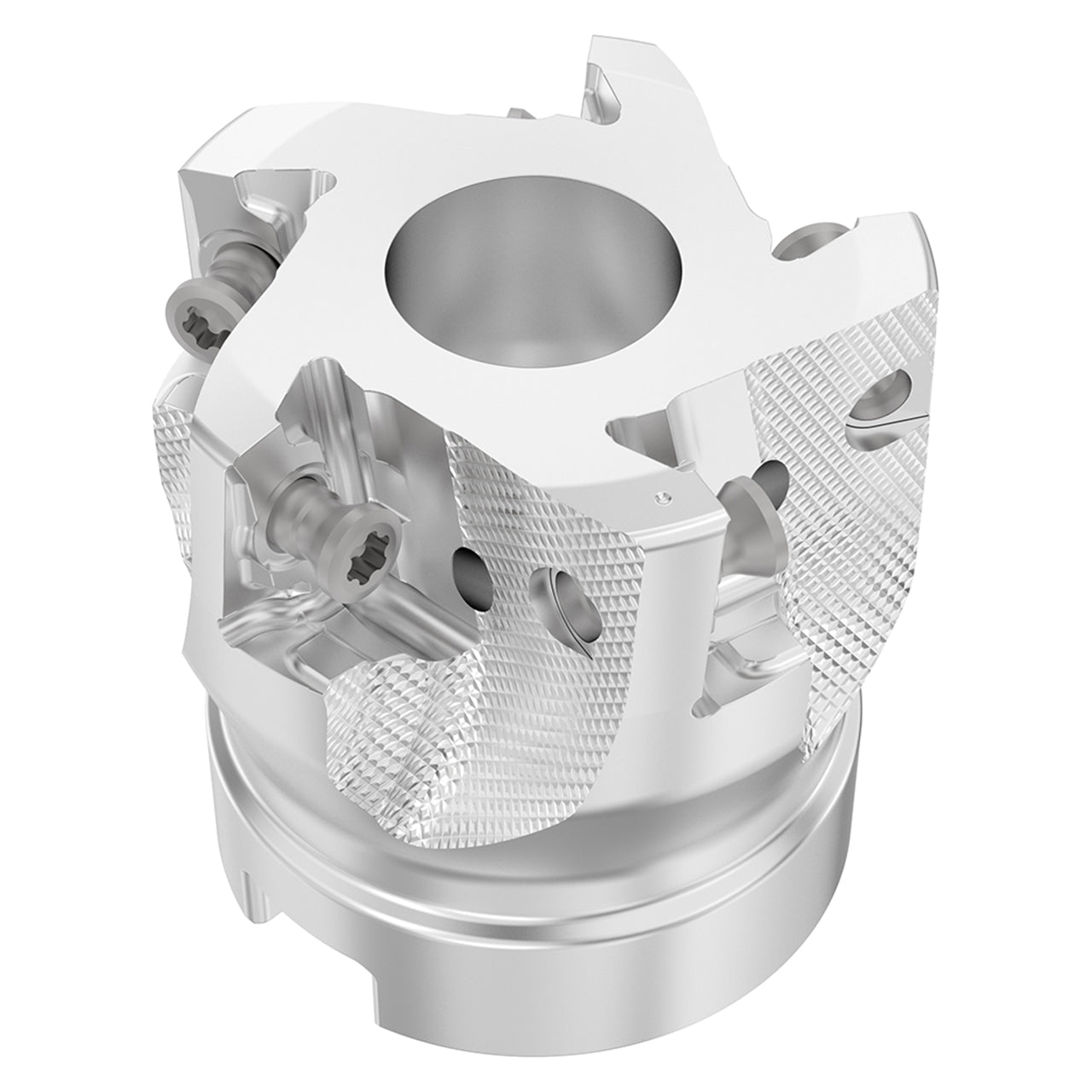

| Product Type | Indexable Square-Shoulder Face Mill |
