Product Specifications
| Manufacturer Part Number | 10310364 |
| Maximum Depth of cut in Feed Direction End (mm) | 3.40mm |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 57.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 63.10mm |
| Cutting Diameter (mm) | 32.00mm |
| Contact Surface Machine Side Diameter (mm) | 30.00mm |
| Functional length (mm) | 40.00mm |
| Wrench Size (mm) | 26.00mm |
| Thread Diameter Size | M16 |
| Maximum Rotational Speed (RPM) | 15400 RPM |
| Connection Mounting Torque (Nm) | 80.00 Nm |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Close |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 4 |
| Shank Type | Combimaster |
| Rake Radial Angle (Degree) | -18 Degree |
| Rake Axial Angle (Degree) | -4 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.80 Degree |

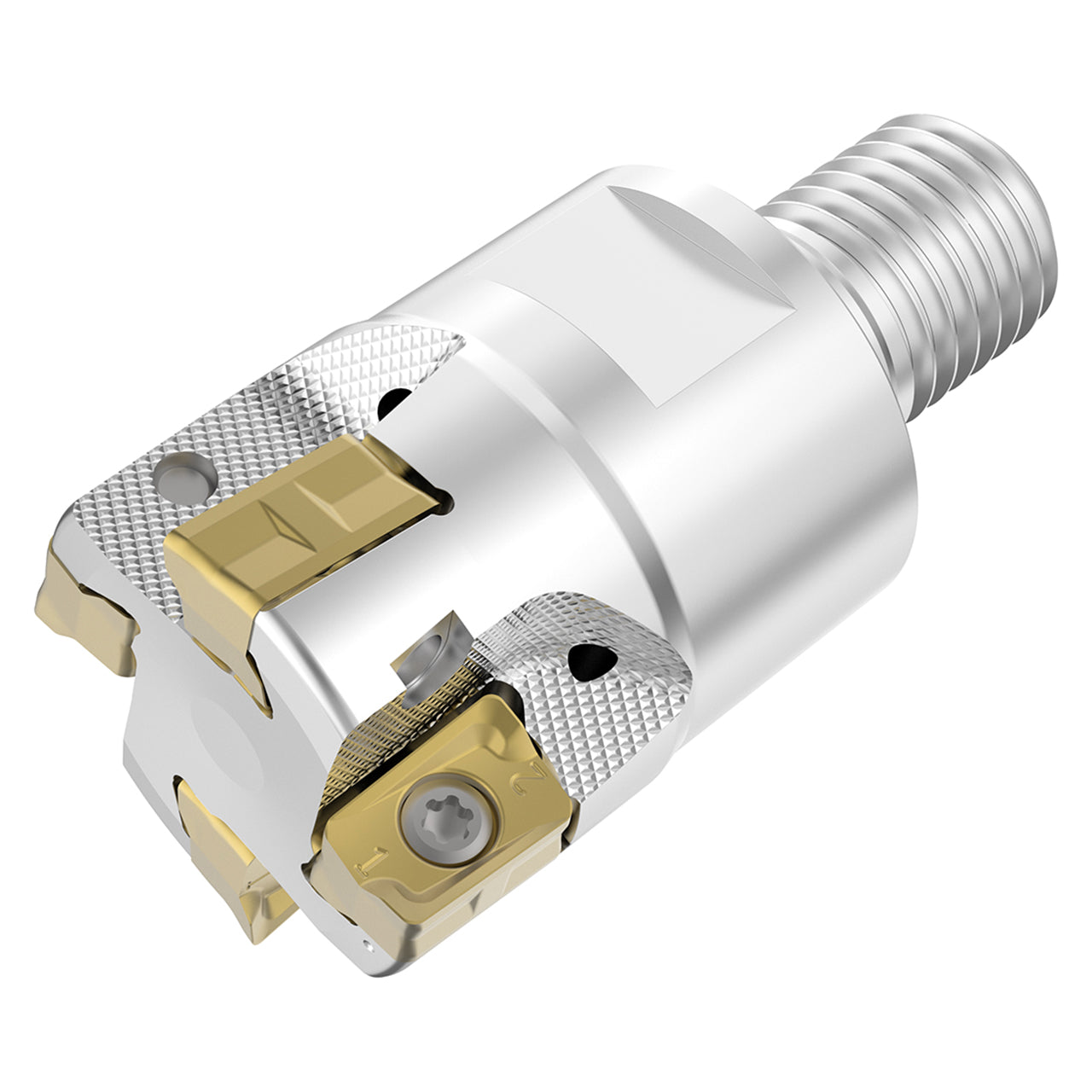

| Product Type | Indexable Square-Shoulder End Mill |
