Product Specifications
| Manufacturer Part Number | 10310358 |
| Maximum Depth of cut in Feed Direction End (mm) | 3.40mm |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 43.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 49.10mm |
| Cutting Diameter (mm) | 25.00mm |
| Machine Side Connection Diameter (mm) | 25.00mm |
| Protruding Length (mm) | 94.00mm |
| Shank Length (mm) | 115.00mm |
| Maximum Usable Length (mm) | 35.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Rotational Speed (RPM) | 17400 RPM |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Close |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 3 |
| Shank Type | Cylindrical |
| Rake Radial Angle (Degree) | -21 Degree |
| Rake Axial Angle (Degree) | -4 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 1.20 Degree |

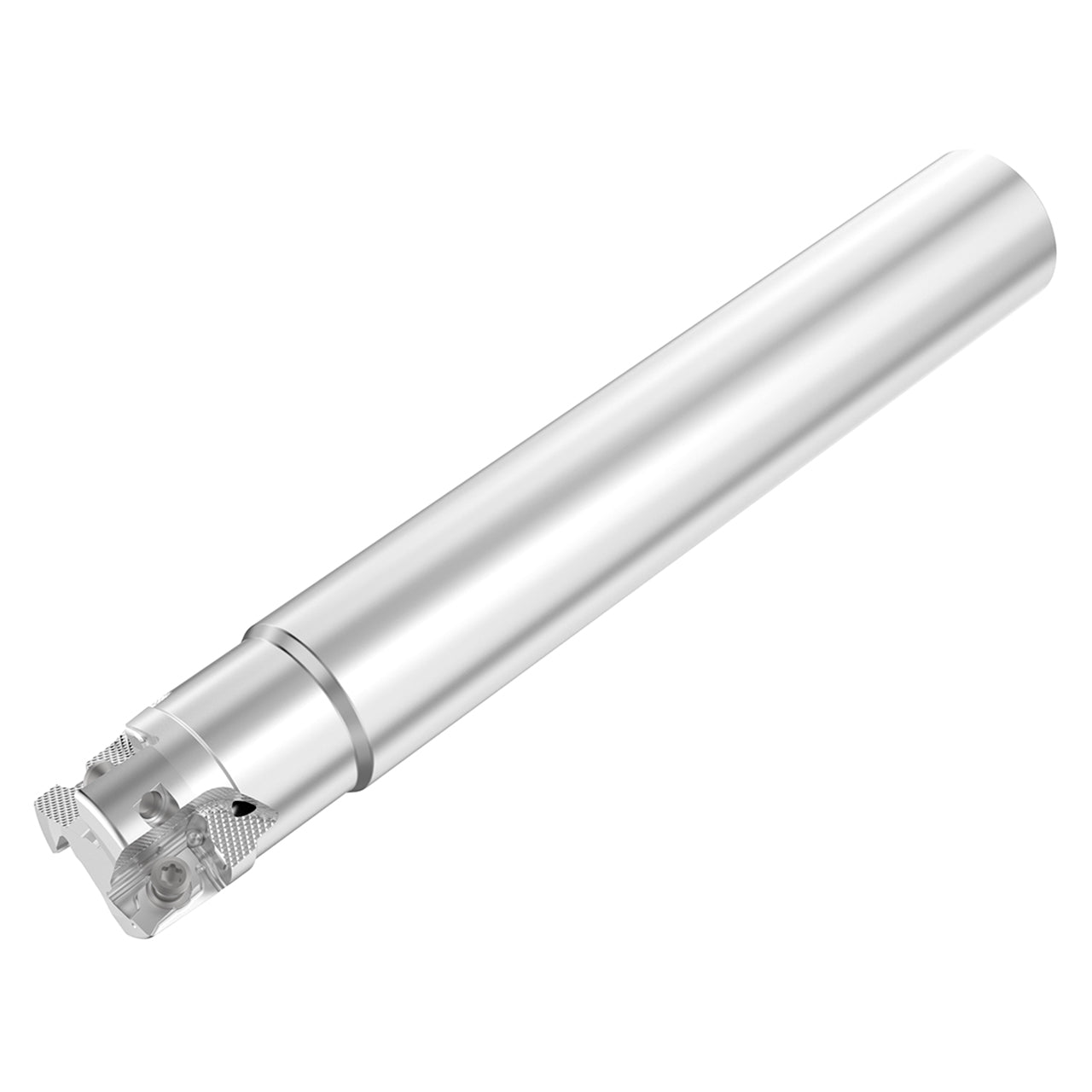

| Product Type | Indexable Square-Shoulder End Mill |
