Product Specifications
| Manufacturer Part Number | 10310353 |
| Maximum Depth of cut in Feed Direction End (mm) | 3.40mm |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Depth of Key Way (mm) | 9.10mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 243.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 249.10mm |
| Cutting Diameter (mm) | 125.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Machine Side Diameter (mm) | 90.00mm |
| Keyway Width (mm) | 16.40mm |
| Functional length (mm) | 63.00mm |
| Maximum Rotational Speed (RPM) | 7800 RPM |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 11 |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -16 Degree |
| Rake Axial Angle (Degree) | -3 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.10 Degree |

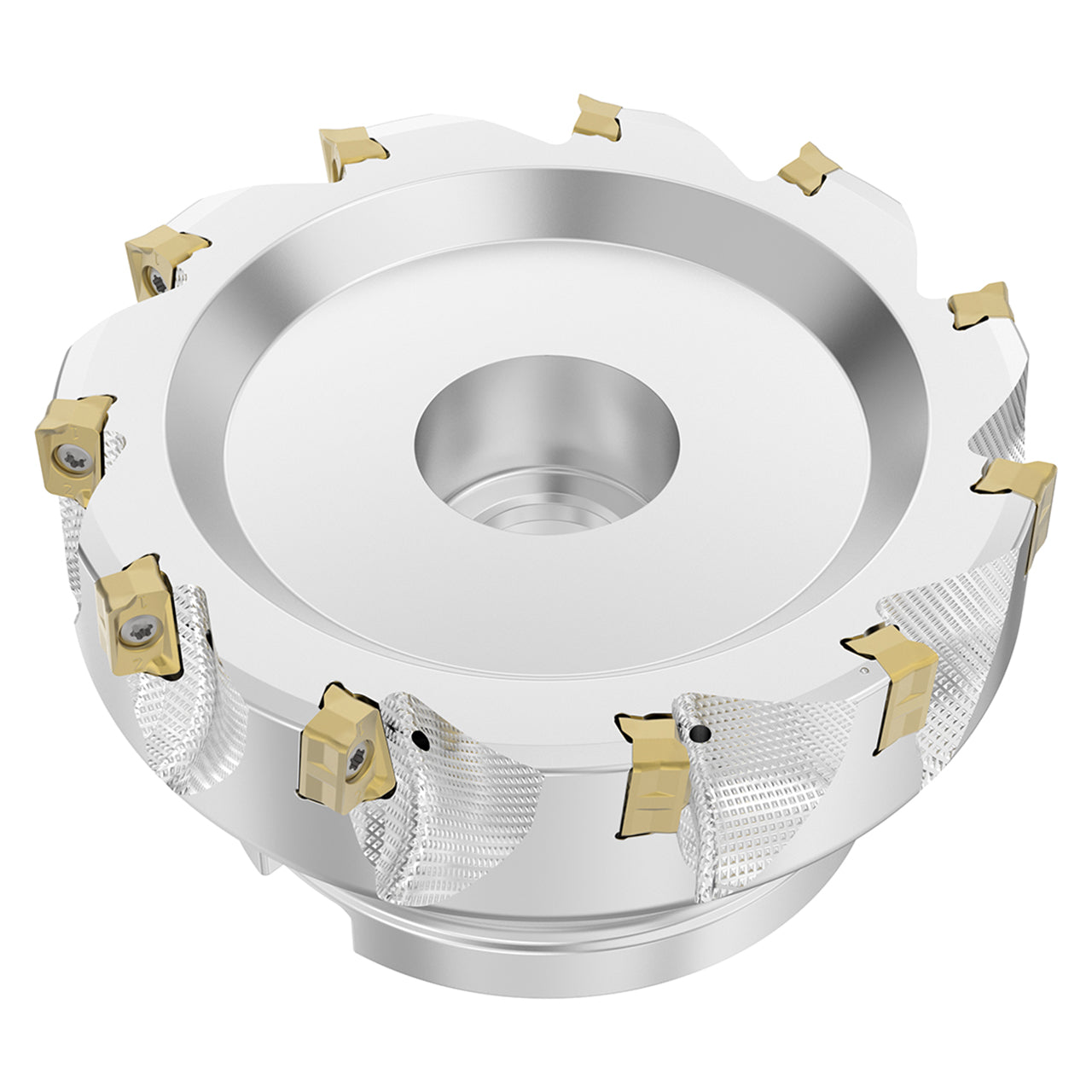

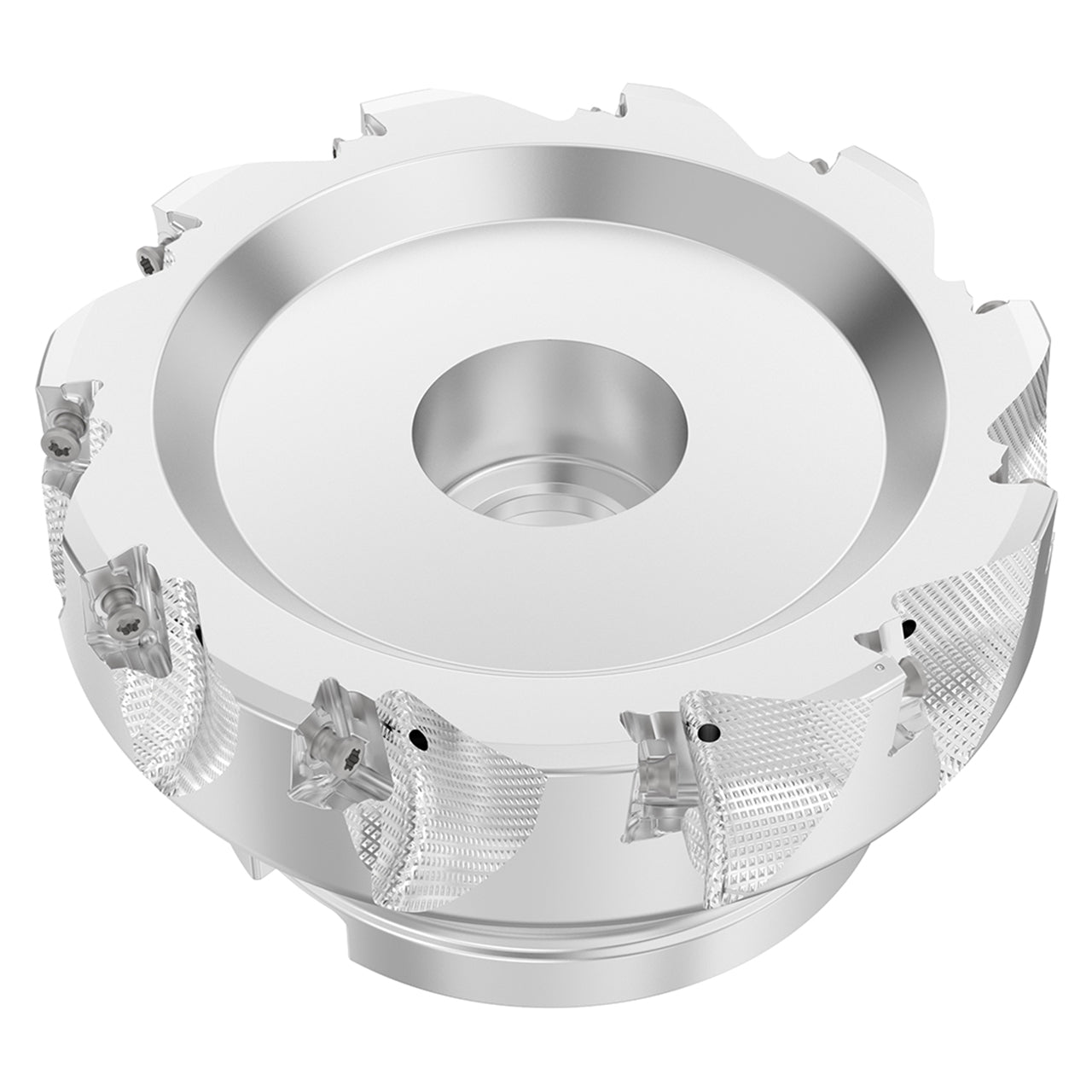

| Product Type | Indexable Square-Shoulder Face Mill |
