Product Specifications
| Manufacturer Part Number | 10310351 |
| Maximum Depth of cut in Feed Direction End (mm) | 3.40mm |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Depth of Key Way (mm) | 8.10mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 193.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 199.10mm |
| Cutting Diameter (mm) | 100.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Contact Surface Machine Side Diameter (mm) | 77.00mm |
| Keyway Width (mm) | 14.40mm |
| Functional length (mm) | 50.00mm |
| Maximum Rotational Speed (RPM) | 8700 RPM |
| Cutting Pitch Differential | Yes |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | Yes |
| Peripheral Effective Cutting Edge Count | 8 |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -16 Degree |
| Rake Axial Angle (Degree) | -3 Degree |
| Tool Cutting Edge Angle in Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.18 Degree |

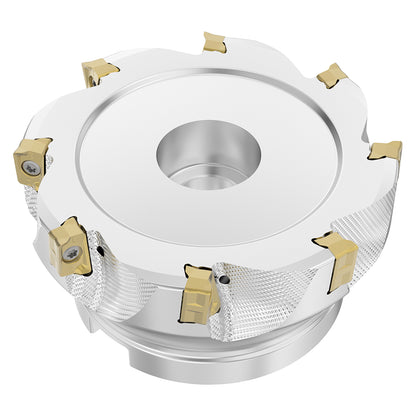

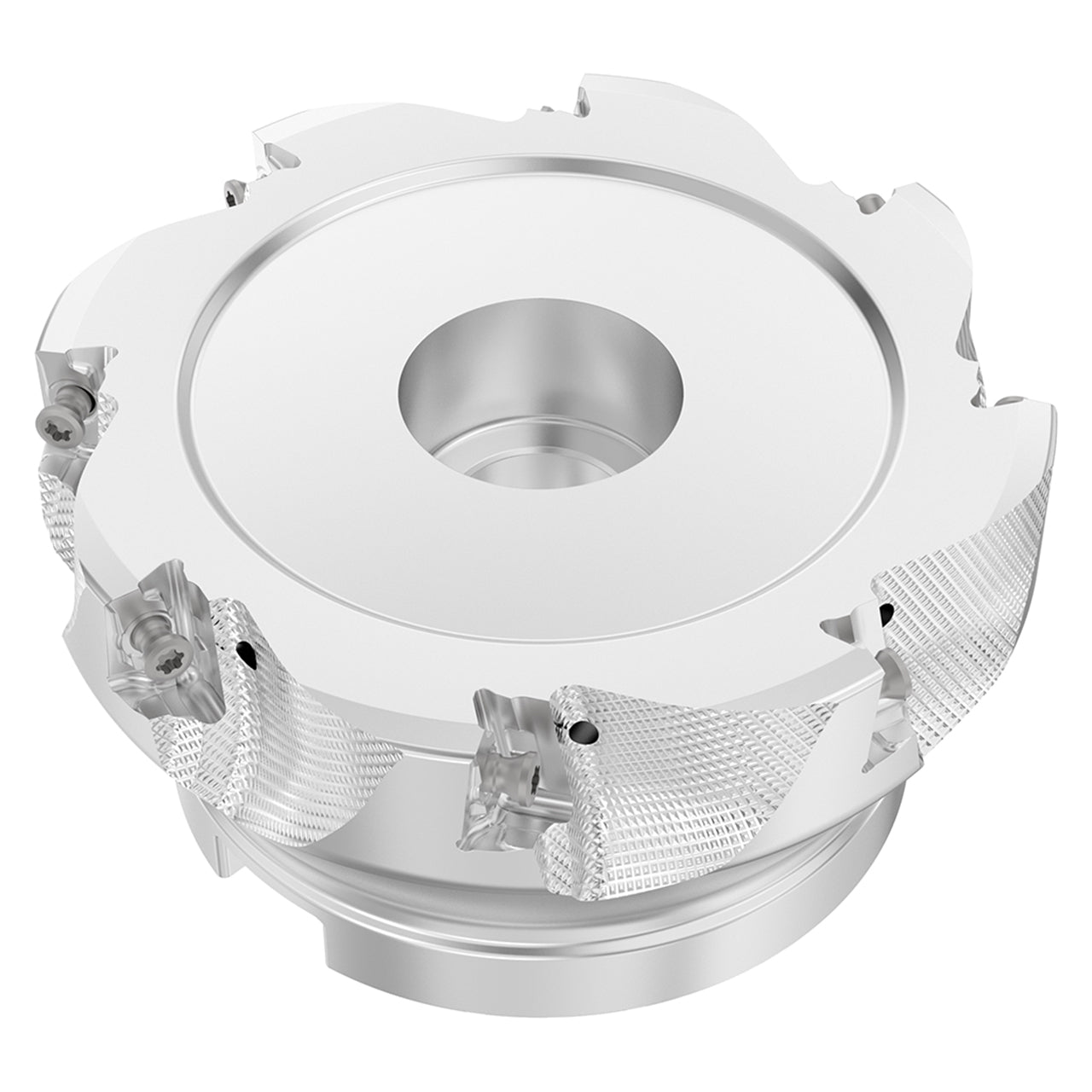

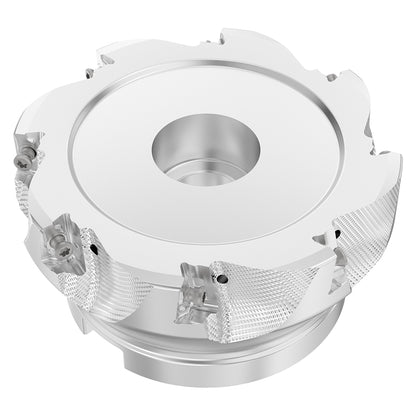

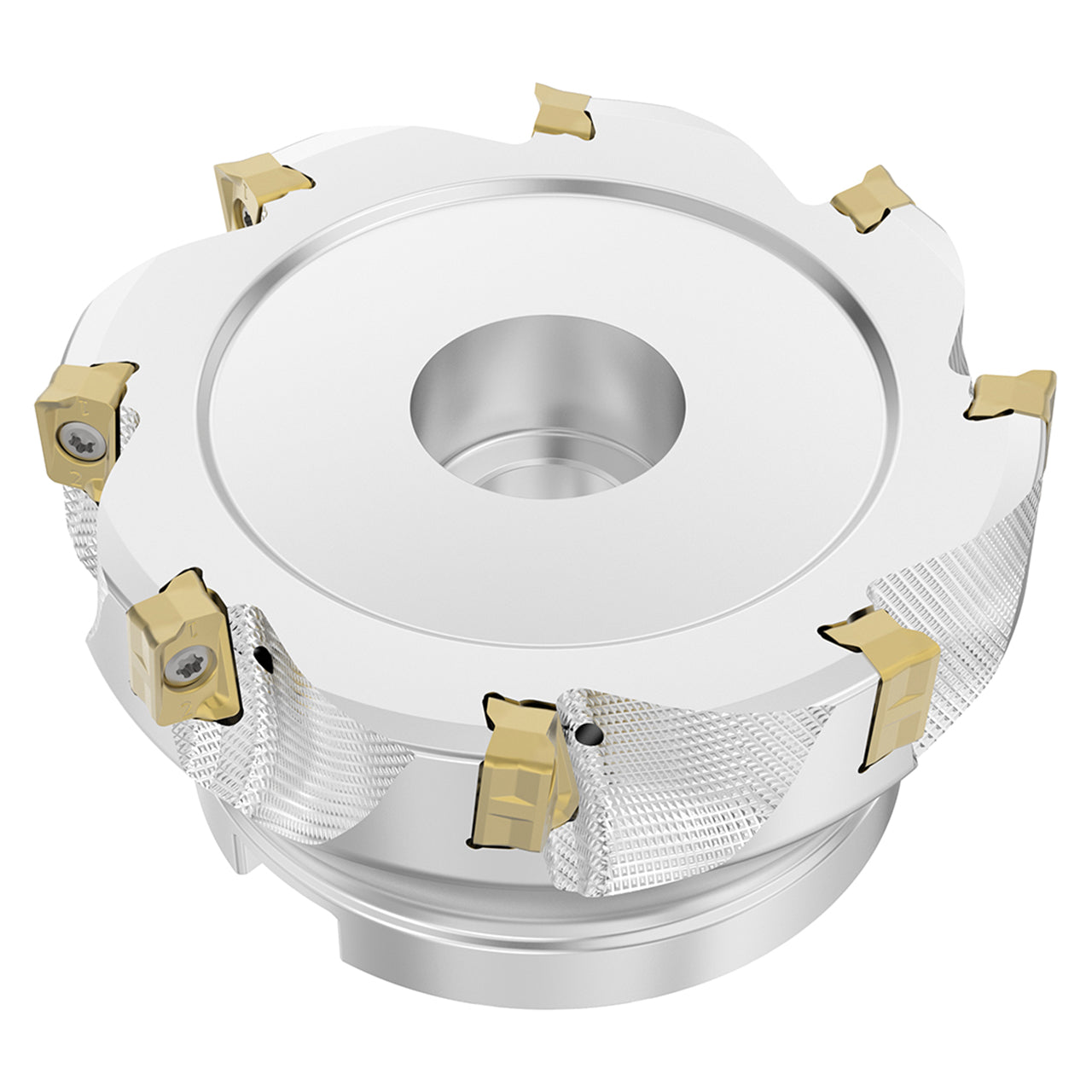

| Product Type | Indexable Square-Shoulder Face Mill |
