Product Specifications
| Manufacturer Part Number | 10310013 |
| Machine Side Connection Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (Decimal Inch) | 0.433" |
| Functional length (Decimal Inch) | 3.831" |
| Usable Length (Decimal Inch) | 2.795" |
| Overall Length (Decimal Inch) | 3.937" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.492" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.499" |
| Tap Chamfer Length (Decimal Inch) | 0.107" |
| Thread Diameter (Decimal Inch) | 0.551" |
| Thread Diameter Size | MF 14 x 1.5 |
| Threading Chamfer Length (Decimal Inch) | 0.107" |
| Thread Length (Decimal Inch) | 0.787" |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Threading Chamfer Type | E |
| Thread Form Type | MF |
| Connection Size Code | 11.00 x 9.00 |
| Machine Side Connection Size Code | 11.00 x 9.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN374 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlSiN |
| Material | High Speed Steel-E-PM |

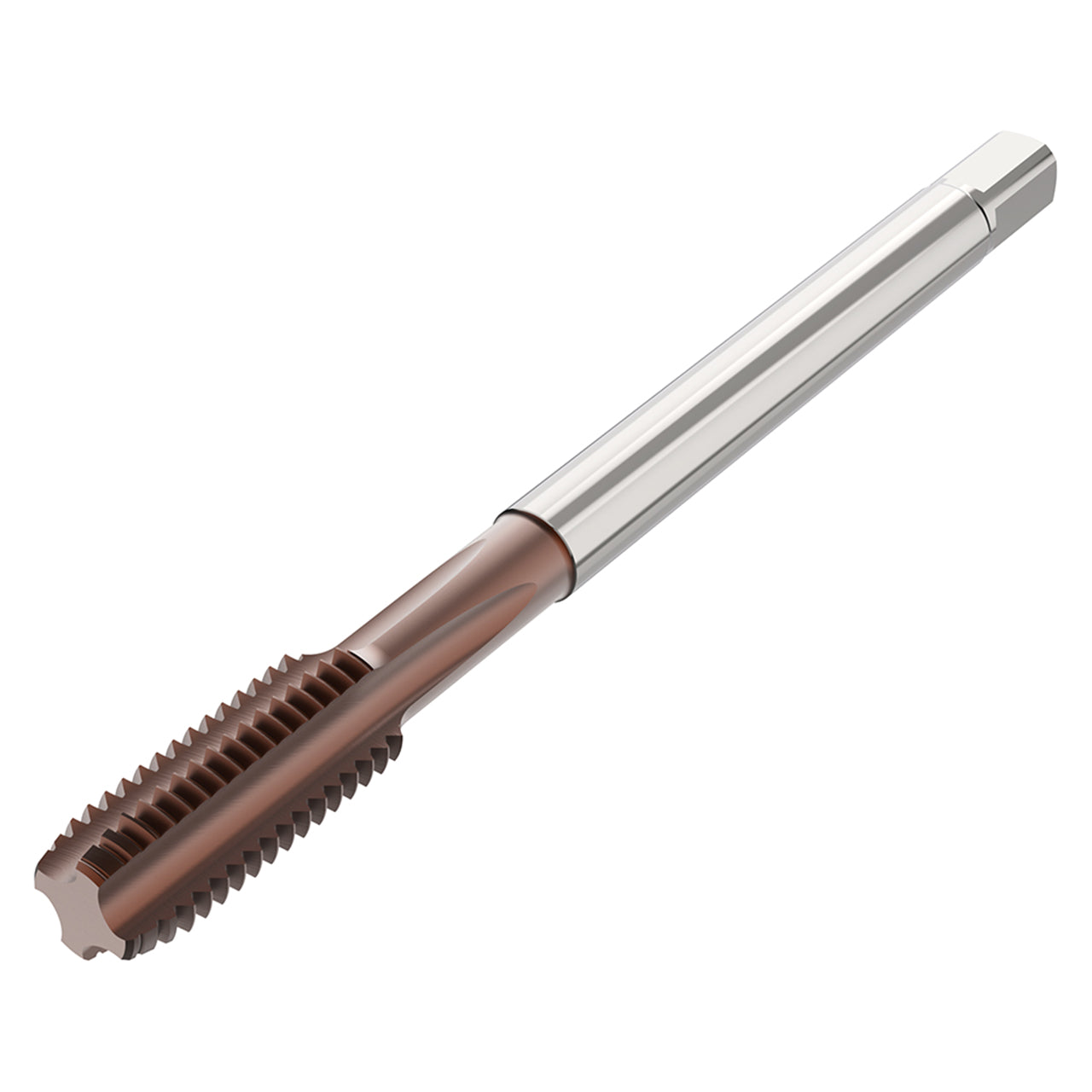

| Product Type | Straight Flute Tap |
